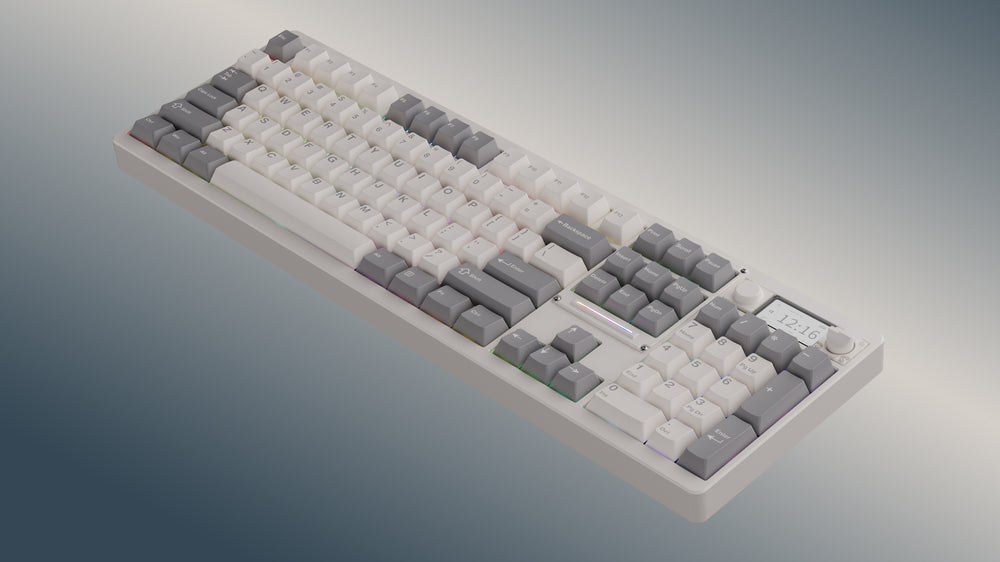

ND104 Product Information

Case	6063 Aluminium
Colour & Surface Finish	Anodizing(Shadow Black) / Acustatic (Lunar White, Sky Blue, Soft Pink, Lumen Yellow)
Sound Dampening	5 layers
Backlight	RGB
Plate	Material： FR4
Weight	Material： Aluminium Process： Anodizing / Acustatic
Battery	Capacity：4000mAh × 2 (8000mAh Total) Battery Life (Lighting On/Off) BLE Mode (Lighting & Screen On): 28h / (Off): 118h 2.4G Mode (Lighting & Screen On): 29h / (Off): 109h
PCB	Material: FR4 Feature: Flex cut Thickness：1.2mm,1.6mm
QMK/VIA Support	VIA Supported
Latency Data	USB: 5.88ms / BLE: 12ms / 2.4G: 8.37ms
Number of Keys	106 keys
Driver Type	Standalone Driver
Full N-Key Rollover (NKRO)	Yes
User Manual Included	Yes
Stabilizers	Plate-Mounted Stabilisers Steel）
Cable	Type-C
Kit Parameters	Layout:104% Hot-Swap: Yes Bluetooth Version: BLE 5.4 Bluetooth Protocol: BLE Connectivity: Tri-Mode (USB Cable / BLE / 2.4GHz) Simultaneous Device Connections: 3 Devices Dimensions (L×W×H):437.6 × 140.1 × 34.4 mm Bluetooth Polling Rate:133Hz 2.4GHz Polling Rate:1000Hz Wired Polling Rate:1000Hz OS Support: Windows / macOS / Linux / Android
Breeze switch (Make typing like a breeze）	Top Housing Material: PA Stem Material: POM Life Long: 50,000,00 Cycles Work Force:40±10gf Total Travel:3.50±0.3mm Pretravel:2.00±0.5mm
WS silent linear switch	Top Housing Material: Nylon Stem Material: POM Life Long: 80,000,00 Cycles Work Force:47±5gf Total Travel:3.50±0.3mm Pretravel:2.00±0.5mm
