*Spray-coated contains micro-glitter

Specifications:

Dimensions:
357×136.5×35 mm (Excluding rubber feet)

Front Height:
18 mm with 7° typing angle (Excluding rubber feet)

PCB:
1.6mm Wired ANSI Hotswap Non-flex cut PCB

Content List

Packaging Contents
- 1x Carrying Case
- 1x Hex80 Keyboard
- 1x Accessory Kit
- 1x User Manual
- 1x Compliance Certificate
Complimentary Items:
- 4x Backup Switches
- 1x USB Cable
- 1x Keycap & Switch Puller

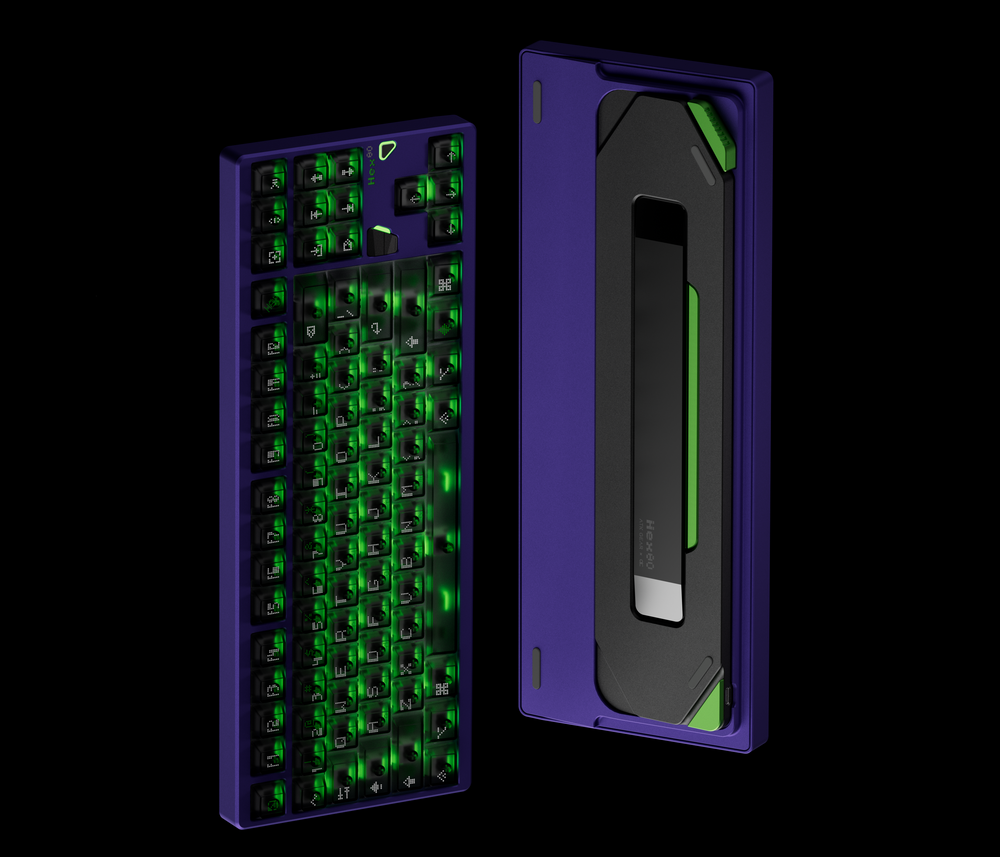

QwertyKeys x ATK Hex80 HE Keyboard

Stop imagining the perfect gaming keyboard. Experience it. The Hex80 isn't just another custom keyboard; it's a revolution powered by cutting-edge Hall Effect magnetic switch technology and crafted with uncompromising premium quality. When the ultimate performance in gaming no longer requires sacrificing the keyboard's most essential typing experience, we believe this is how a great gaming keyboard should be.

Front Design:

Three physical buttons above the arrow keys serve as both decorative elements and practical controls, allowing you to easily switch between RGB modes and keymap profiles without having to remember complicated key combinations.

Back Design:

The Hex80's clean back features a sleek, segmented design with no visible screws. Intersecting lines create depth and a distinctly e-sports aesthetic. A mirror-polished PVD stainless steel weight boasts a contoured profile, centrally raised with recessed sides, perfectly mirroring the front button design.

Keycap:

Featuring translucent PC body and pixel-style legends, the keycaps equipped on the Hex80 deliver vibrant RGB diffusion. An enhanced matte coating provides a silky texture, fusing the clarity of PC with premium PBT tactility.

Craftsmanship

Crafted from 6063 aluminum alloy, the case comprises 10 fully CNC-machined components. We strategically deploy 220-mesh anodization or ultra-fine powder coating across its surfaces—selected per colorway to ensure visually precise rendering and a consistently refined texture. Each unit is milled and finished as a singular expression of precision artistry.

Acoustic Performance

When OwLab's latest Ti HE magnetic switches combine with QK's specially tuned acoustic package, they create a unique synergy. Who says outstanding gaming performance must sacrifice daily typing experience? Hex80 delivers satisfying acoustics just like your premium mechanical keyboard.

OwLab's Ti HE Magnetic Switches

Thock, Precise, Reliable

Type: Linear
Bottom-Out Force: 50±5g
Total Travel: 3.4±0.2mm
Initial Magnetic Flux: 120±20gs
Bottom-Out Magnetic Flux: 750±50gs
Lubrication: Pre-Lubed
Top Housing Material: PC
Stem Material: POM
Bottom Housing Material: PA (Closed-Bottom)
OwLab’s Ti HE magnetic switches are equipped with proprietary PG-3 self-lubricating material, delivering an ultra-smooth and highly stable typing experience.

Acoustic Package

Built from a CF plate, Poron foam, IXPE and PE sheets, along with two layers of case foam, the HEX80’s acoustic package is meticulously crafted to deliver a balanced and refined sound profile. Paired with its gasket-mounted structure, the Hex80 strikes an exceptional balance between typing sound, feel, and performance requirements.

ATK 3rd Generation Blazing Wind Magnetic Switch Solution

Self-Developed STOS Architecture
120% overclocking performance with a next-generation architecture, maximizing hardware potential.

ATK AI-Powered Calibration
Al-driven dynamic calibration with over 10,000 data sets, providing precise analysis for each key with 330+ data points.

AI Performance
With a 480MHz MCU and 15 chips design, where every five to six keys are processed by a dedicated chip, achieving peak keyboard performance

Proven on the Pro Stage

Aspas used the keyboard powered by ATK's Blazing Wind Solution during VCT Americas Stage 1, leading his team to qualify for the Toronto Masters.

Dual-Driver Solution

Featuring the fully self-developed ATK HUB driver accessible through both web browser and desktop client, this solution allows you to change settings without downloading software for daily use. It supports advanced magnetic switch functions including RT, SOCD, DKS, MT, and TGL, along with complete key remapping and music-reactive lighting for enhanced enjoyment.

Excellent HE Functionality

Adjustable Actuation Point

"Your Speed, Your Rules”

Set your Actuation Point based on your preferred response speed. When set at 0.1mm, the key will instantly activate when you press it. When set at 4mm, the key needs to be fully pressed down before it's activated.

Rapid Trigger

“Keys dance at your touch”

Rapid Trigger dynamically adjusts actuation and deactivation points, activating keys the moment you press and deactivating them as soon as you release—no need to fully lift and press again as with traditional mechanical keyboards

Rappy Snappy

Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release.

Dynamic Keystroke

4 different actions on a single key based on key position. Activate 1 up to 4bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.

RGB Lighting

Fully customised south-facing per-key RGB lighting with 16 million colours and over 20 striking presets - switch between all lighting options instantly with just a single tap.
