Group Buy Period: 1st August till 1st September
Estimated Fulfilment: Q2 2026

Find Addons here: Click Here!

The Manta is designed by Bowl Keyboards and Alexotos that pays homage to classic designs while standing out in the 65% layout keyboard market. The design looked almost like a manta ray - giving birth to the Manta.

For more info about the design inspiration, visit Alexotos's page: click here!

Included Contents:

1x Top Case
1x Bottom Case
1x External Weight

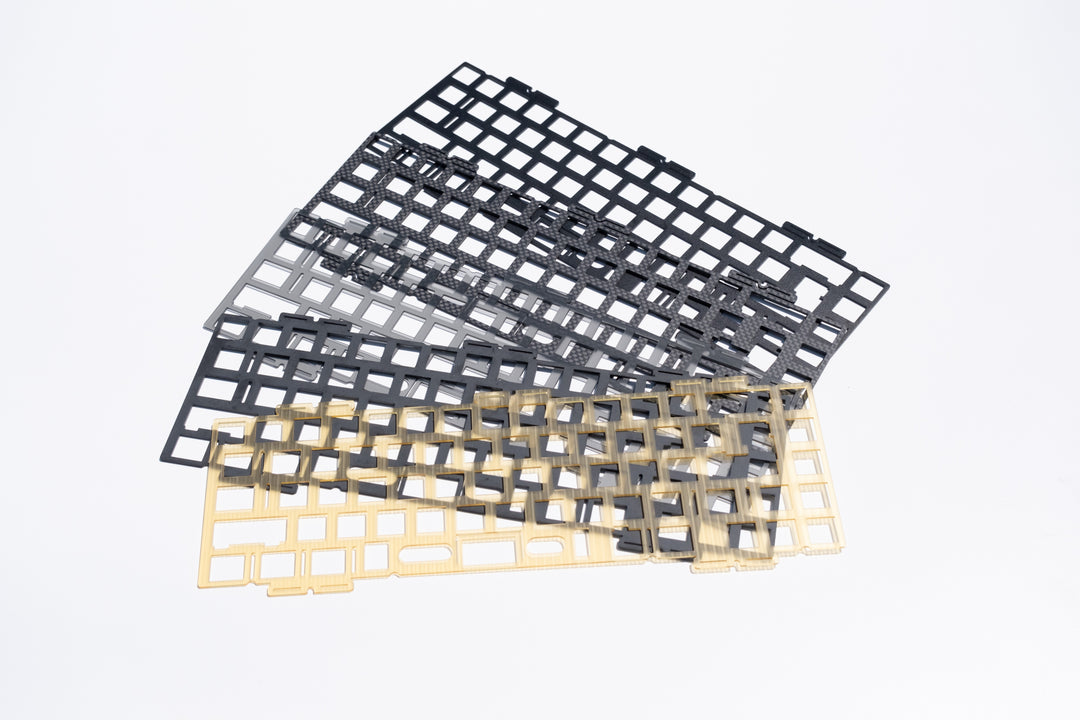

1x Choice of Plate
1x Solderable or Hotswap PCB
1x C5 Unified Daughterboard + JST to JST Cable
1x Carrying Case
6x 30A and 60A Gaskets (sock and grommet)
1x 50A Oring
All Screws/Parts/Etc for assembly

*Note does not include switches, keycaps, or stabilizers

Case Specifications:

Materials: 6063 Aluminum, Acrylic, Copper, Stainless Steel
Layout: 65%
Typing Angle: 8 Degrees
Front Height: 16.9mm
EKH: 22.0 mm
Weight: 1.4-2.0 kg
Mounting: Gasket Sock, Gasket Grommet, O-ring

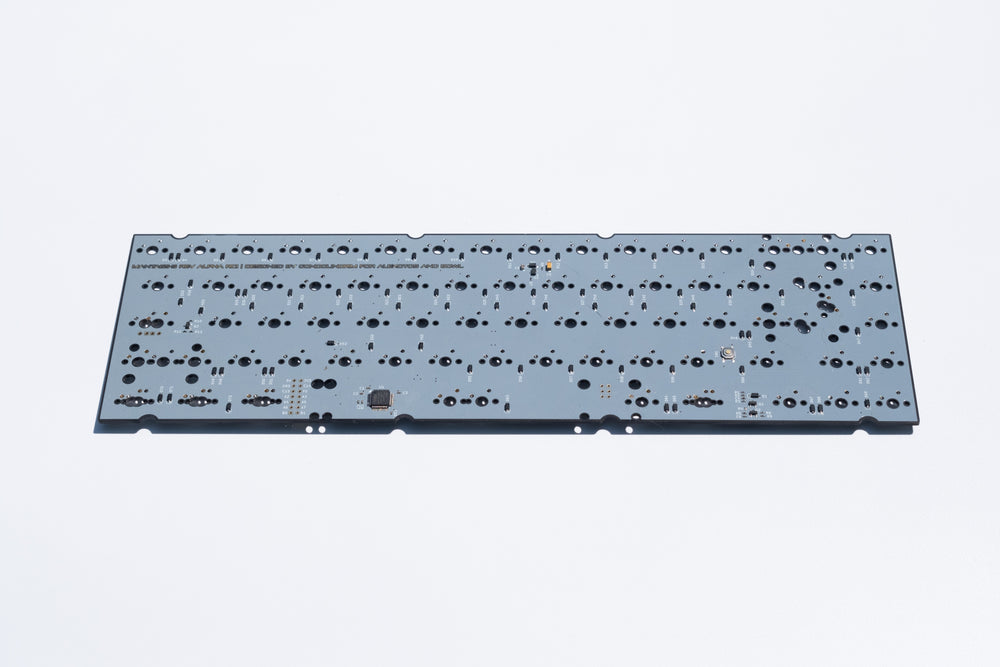

PCB Specifications

Material: Black FR4
Thickness: 1.6mm
Connectivity: JST to Unified Daughterboard
Customizability: VIA
Type: Solderable and Hotswap
Designer: Gondolindrim

Colourway Description

Colourway Name	Top Case	Bottom Case	Weight
Machinist	Clear Anodized	Clear Anodized	Raw Copper
Pumice	Gray-Beige Anodized	Gray-Beige Anodized	Sandblasted Copper
Americano	Brown Anodized	Silver Anodized	Coffee Patina Brass
Manta	Sparkle Black Coat	Sparkle Black Coat	Sandblasted Copper
Tangerine	Sandblasted Acrylic	Orange Anodized	Stainless Steel
Motorsport	Silver Anodized	Silver Anodized	Red Coat Aluminum
Machinist SE	Clear Anodized	Raw Copper	Raw Copper
Pumice SE	Gray-Beige Anodized	Sandblasted Copper	Sandblasted Copper
Americano SE	Cream Coat	Sandblasted Copper	Coffee Patina Brass
Manta SE	Beige Coat	Sandblasted Copper	Stone Wash Dark Gold
Tangerine SE	Sandblasted Acrylic	Sandblasted Copper	Stainless Steel
Motorsport SE	Silver Anodized	Sandblasted Copper	Red Coat Aluminum
