[Group-buy] Angle65 65% Custom Keyboard Kit

[Group-buy] Angle65 65% Custom Keyboard Kit

Name: [Group-buy] Angle65 65% Custom Keyboard Kit
Brand: Vertex
Price: 563.00 AUD
Availability: InStock

No reviews

Regular price$563.00

GST included (Australia only). Shipping calculated at checkout.

Colour

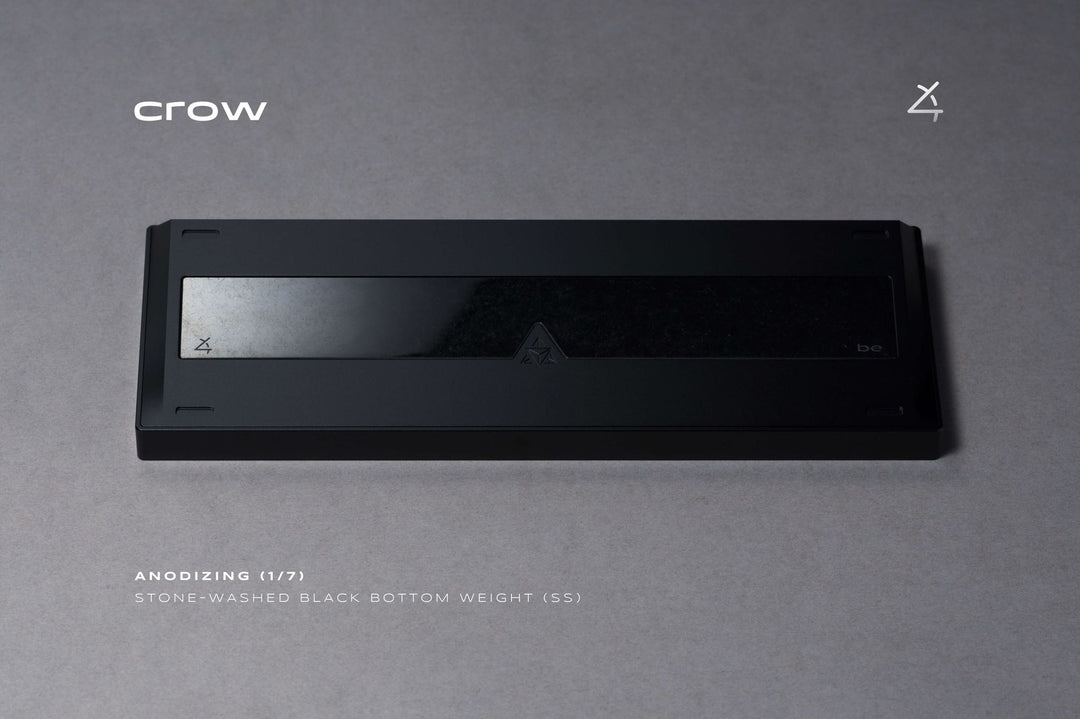

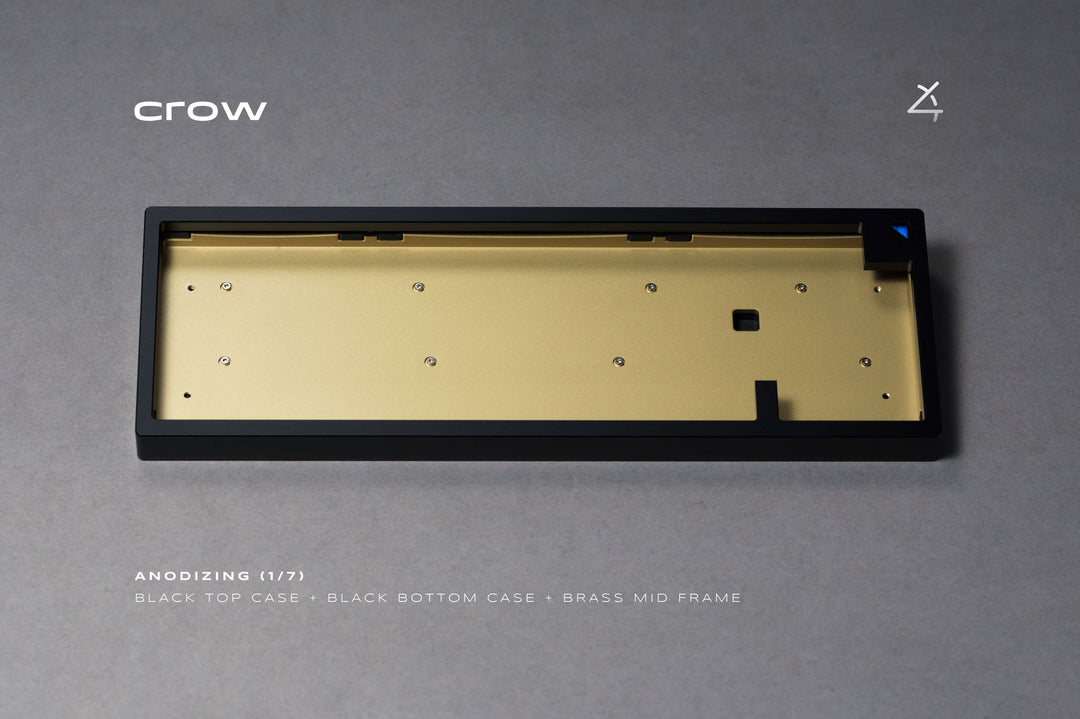

Crow

Lunar

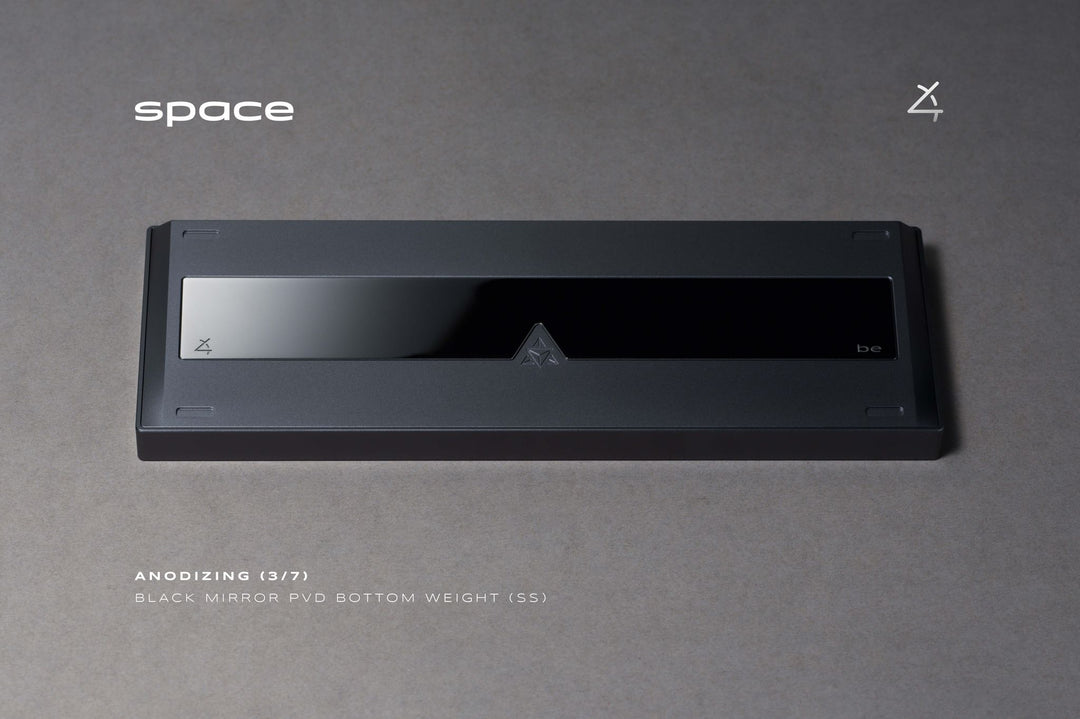

Space

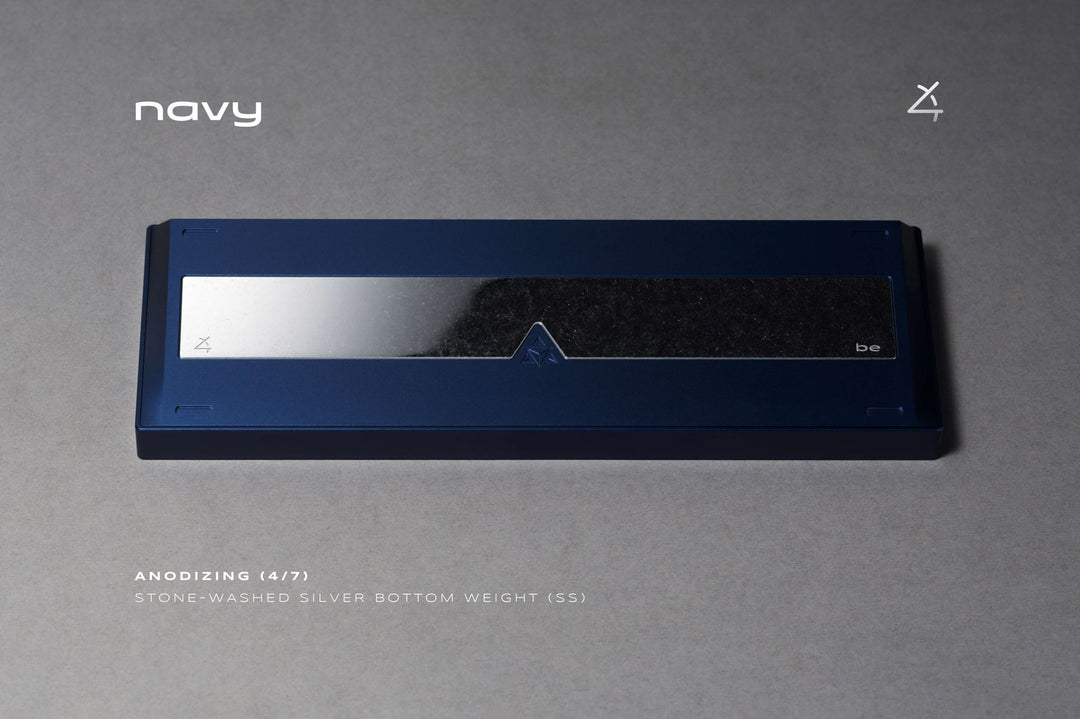

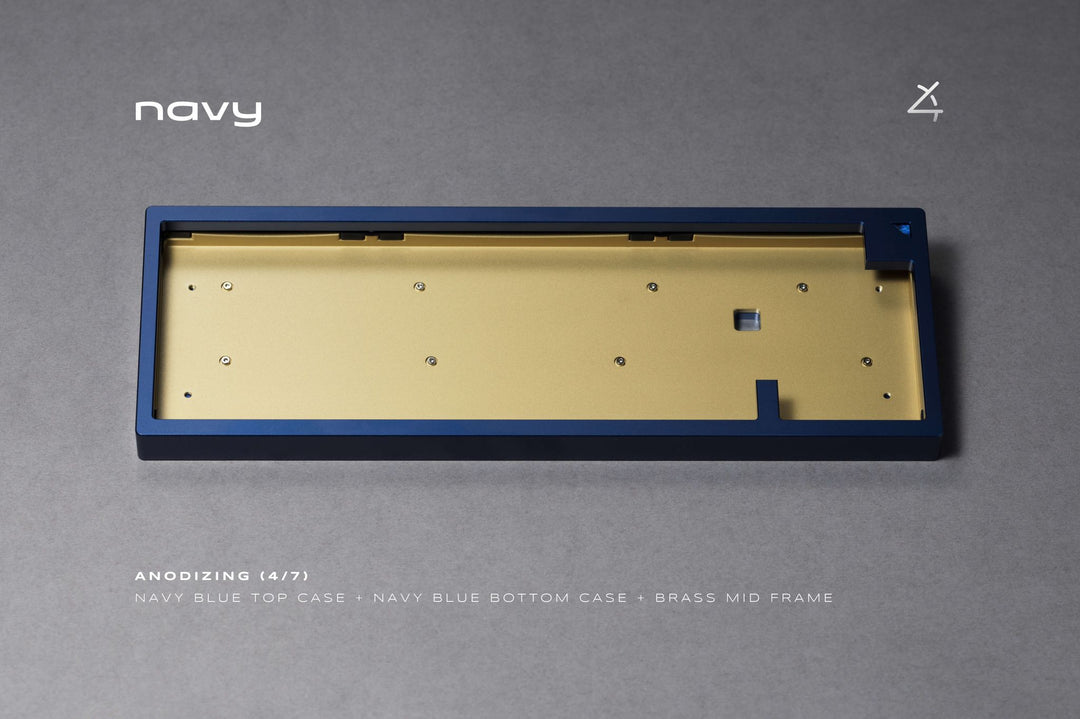

Navy

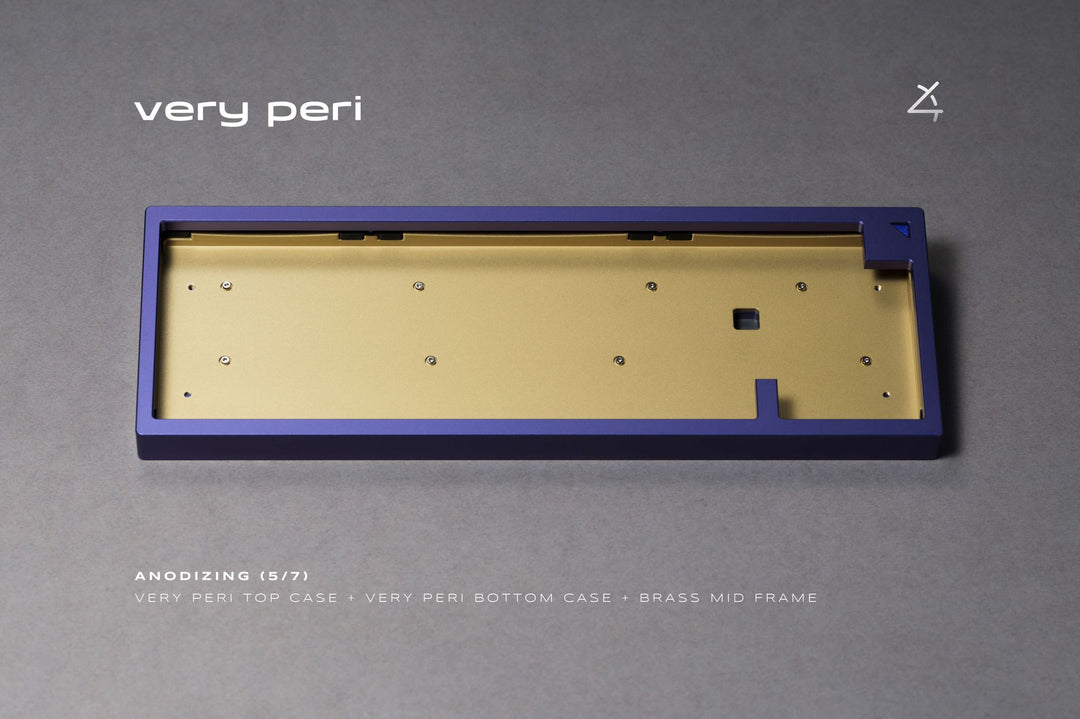

Very Peri

Wheat

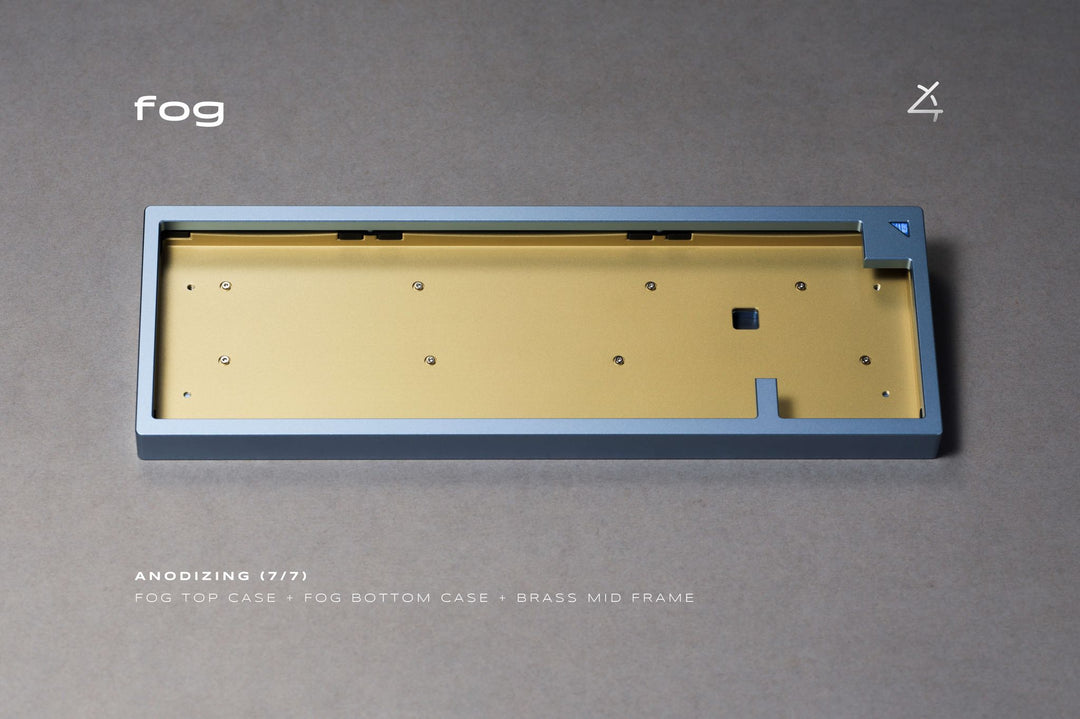

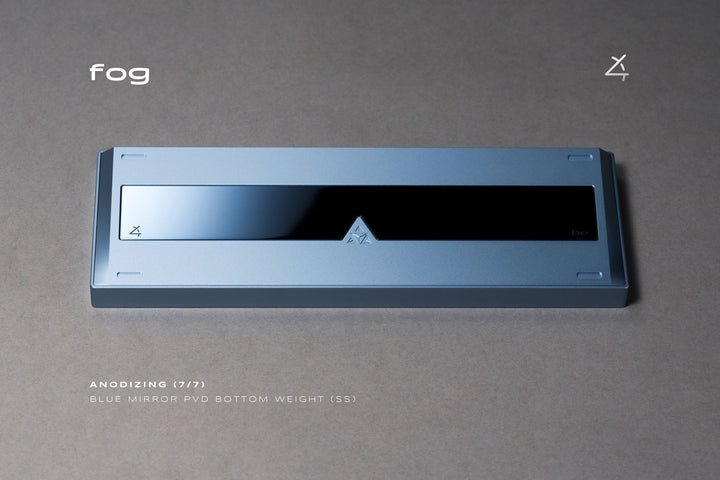

Fog

Zeal

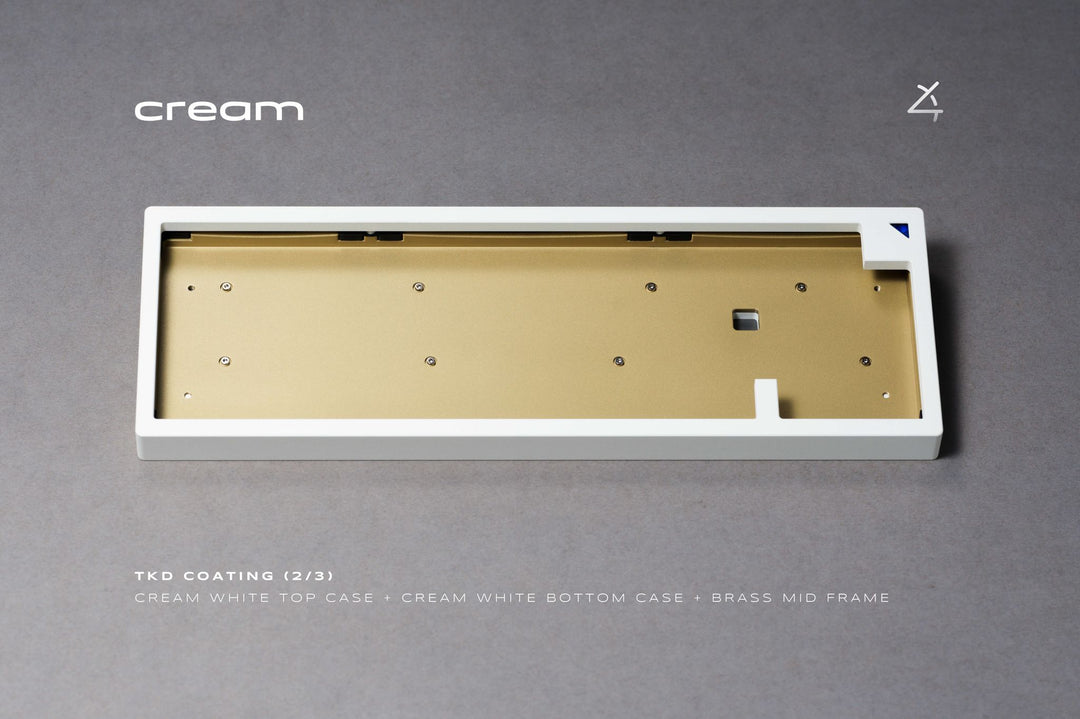

Cream

Linen

PCB

Solder

Hotswap

Plate

Alu

FR4

Quantity

I understand that this item not currently in stock and agree with theGroup Buy and Pre-order policy

此商品为定期购买或延迟购买。继续操作即表示我同意取消政策并授权贵方按本页所列价格、频率和日期通过我的付款方式扣费，直到我的订单已发货或我取消该购买（如允许）为止。

Group Buy Period: 15th July - 15th August 2025
Estimated Fulfilment: Q1 2026

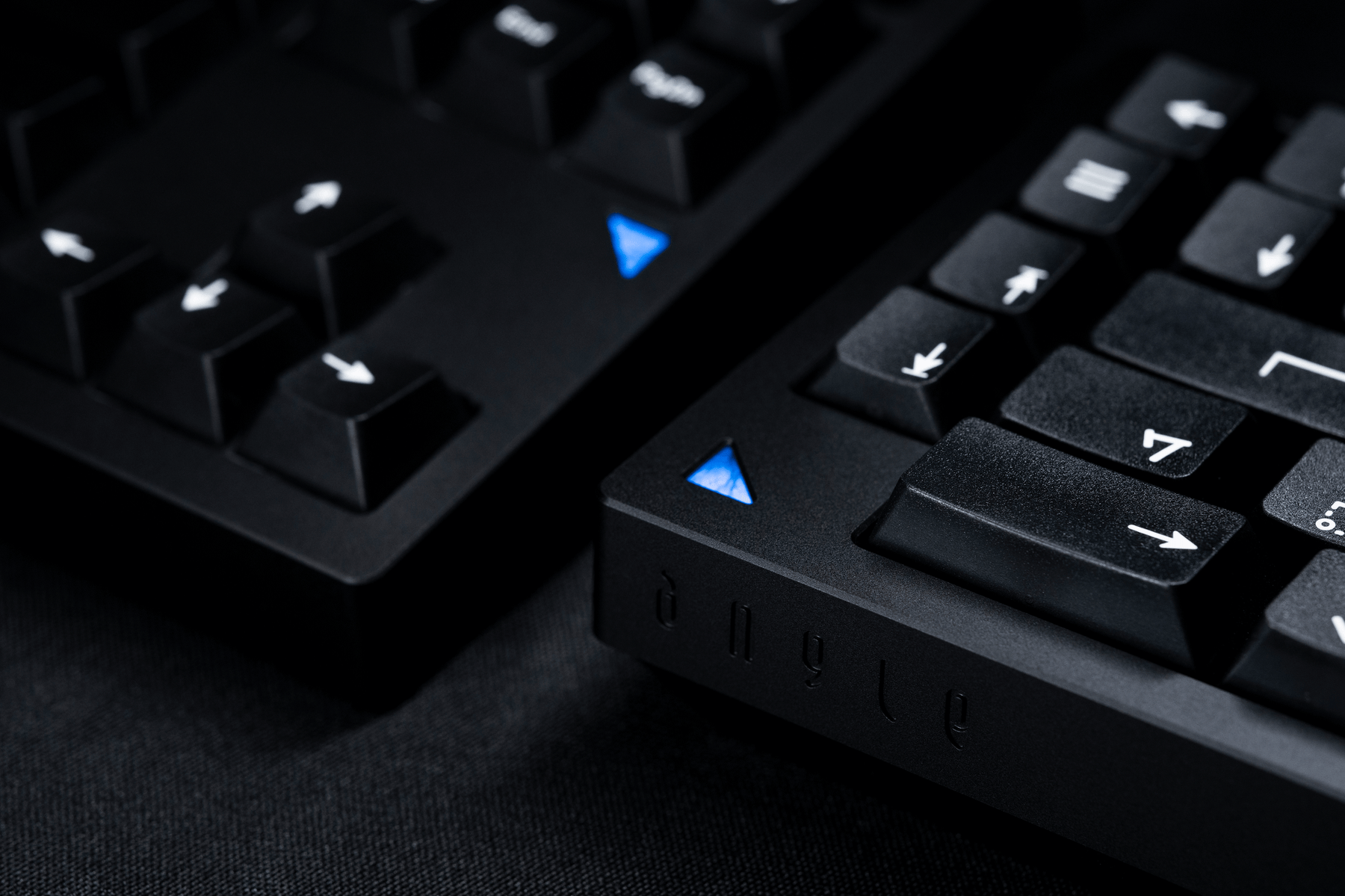

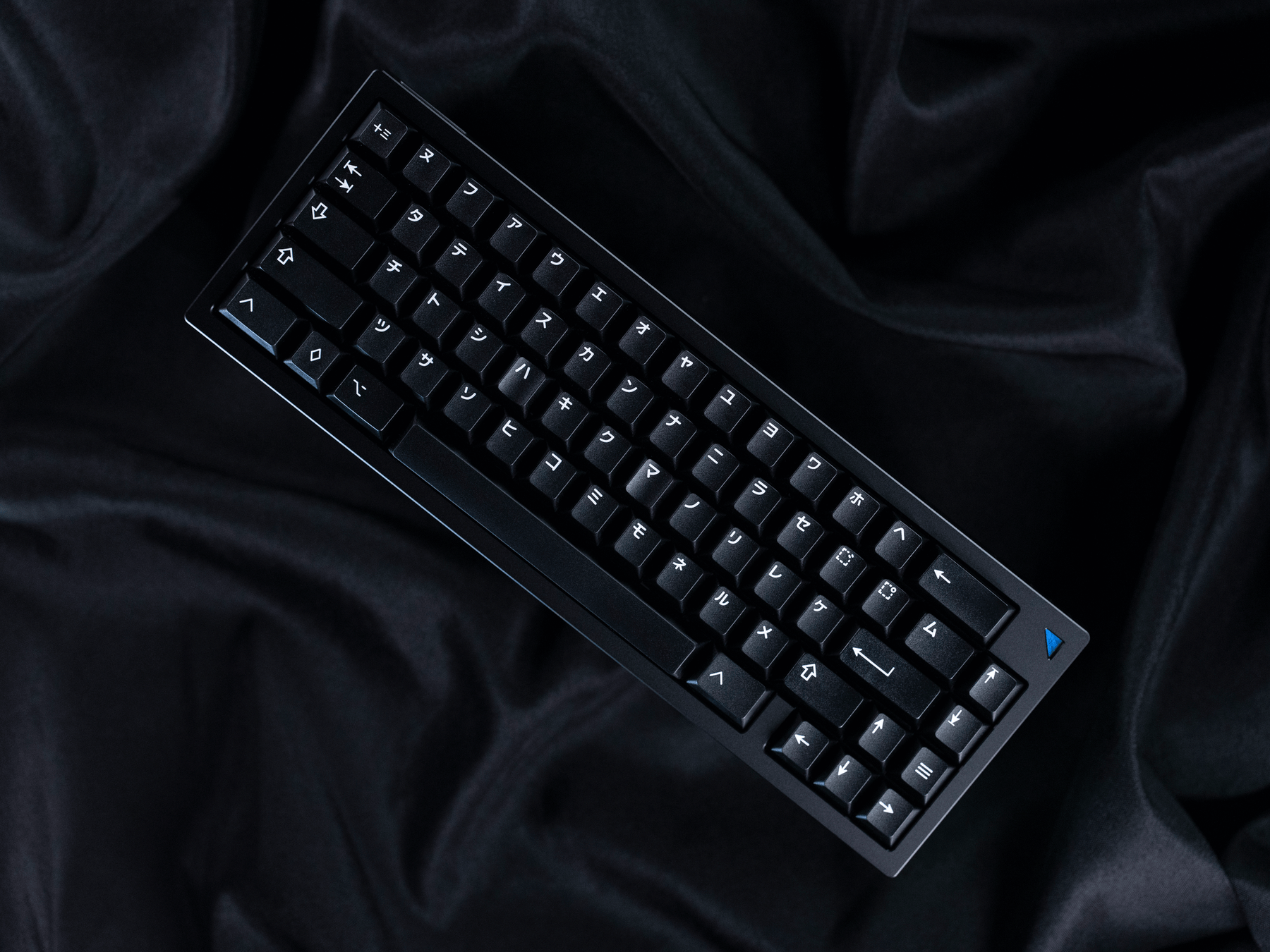

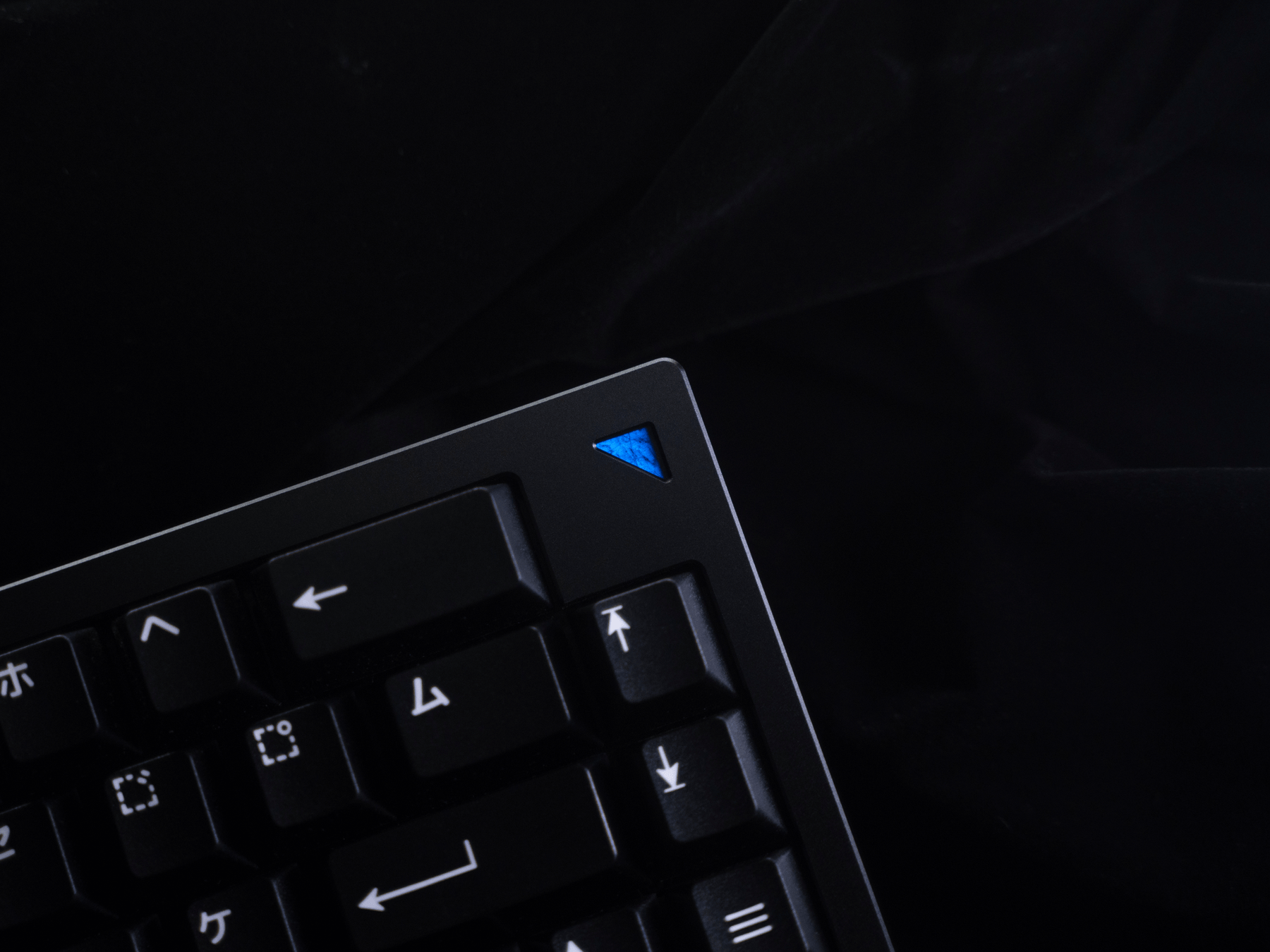

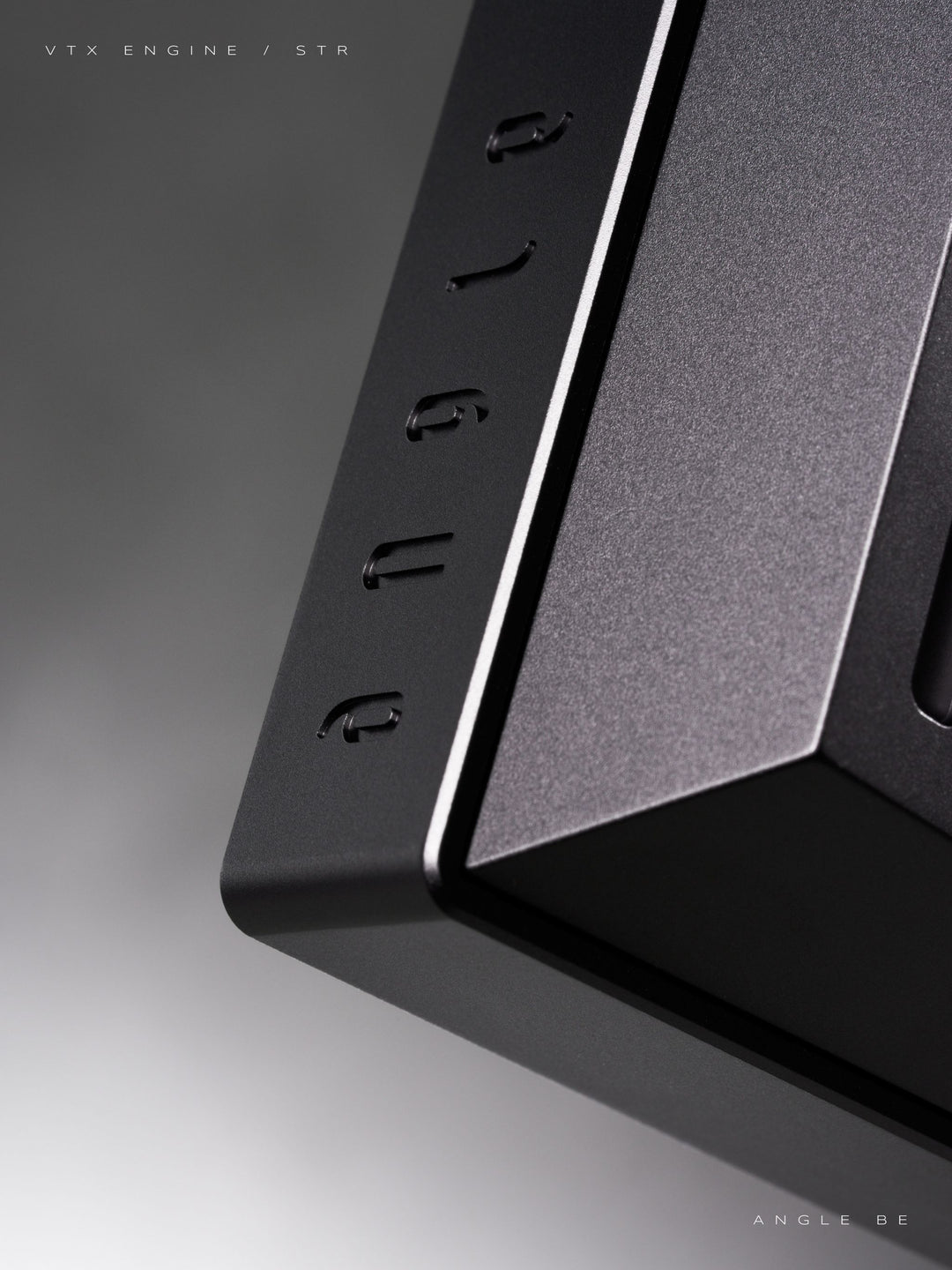

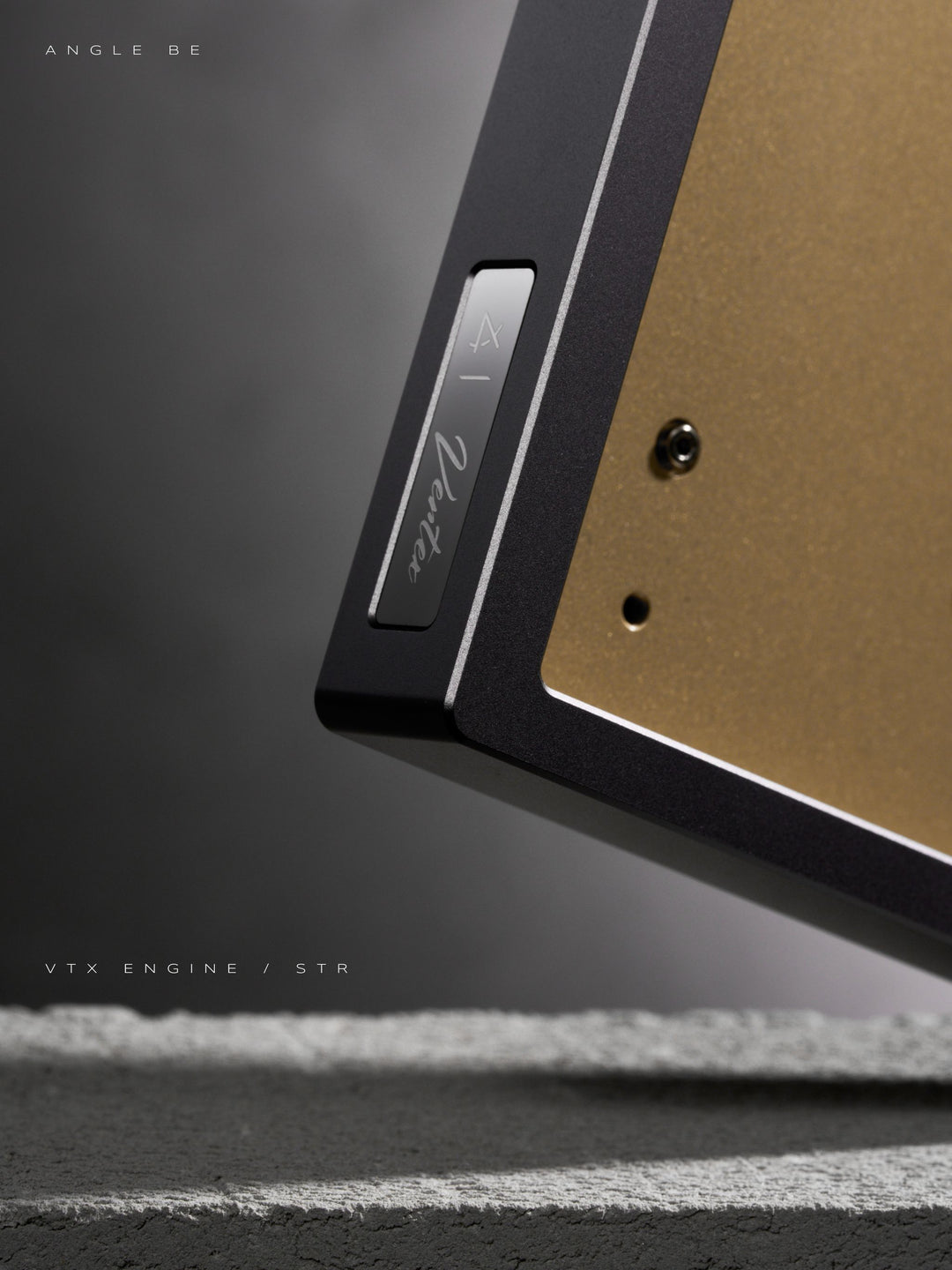

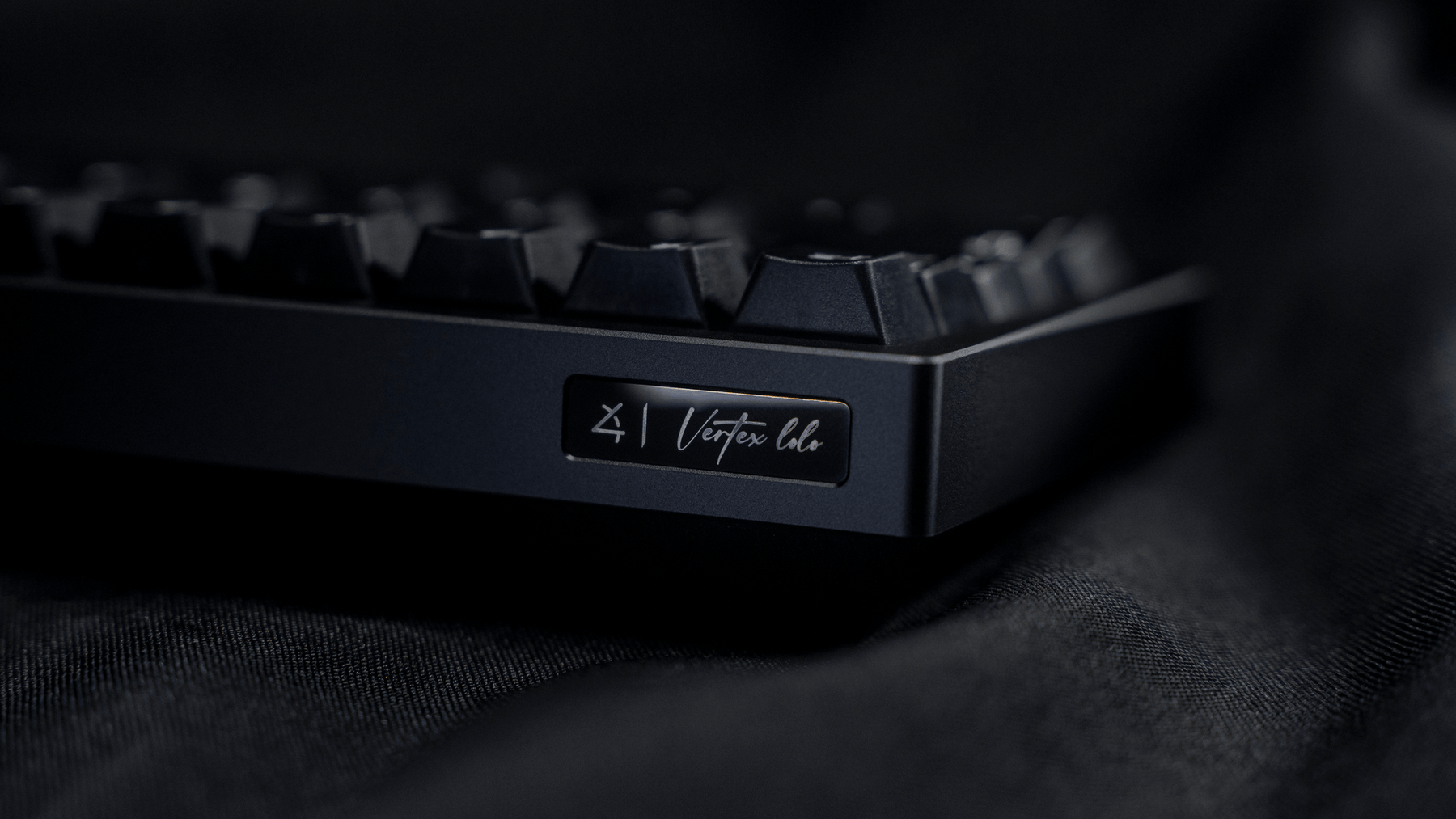

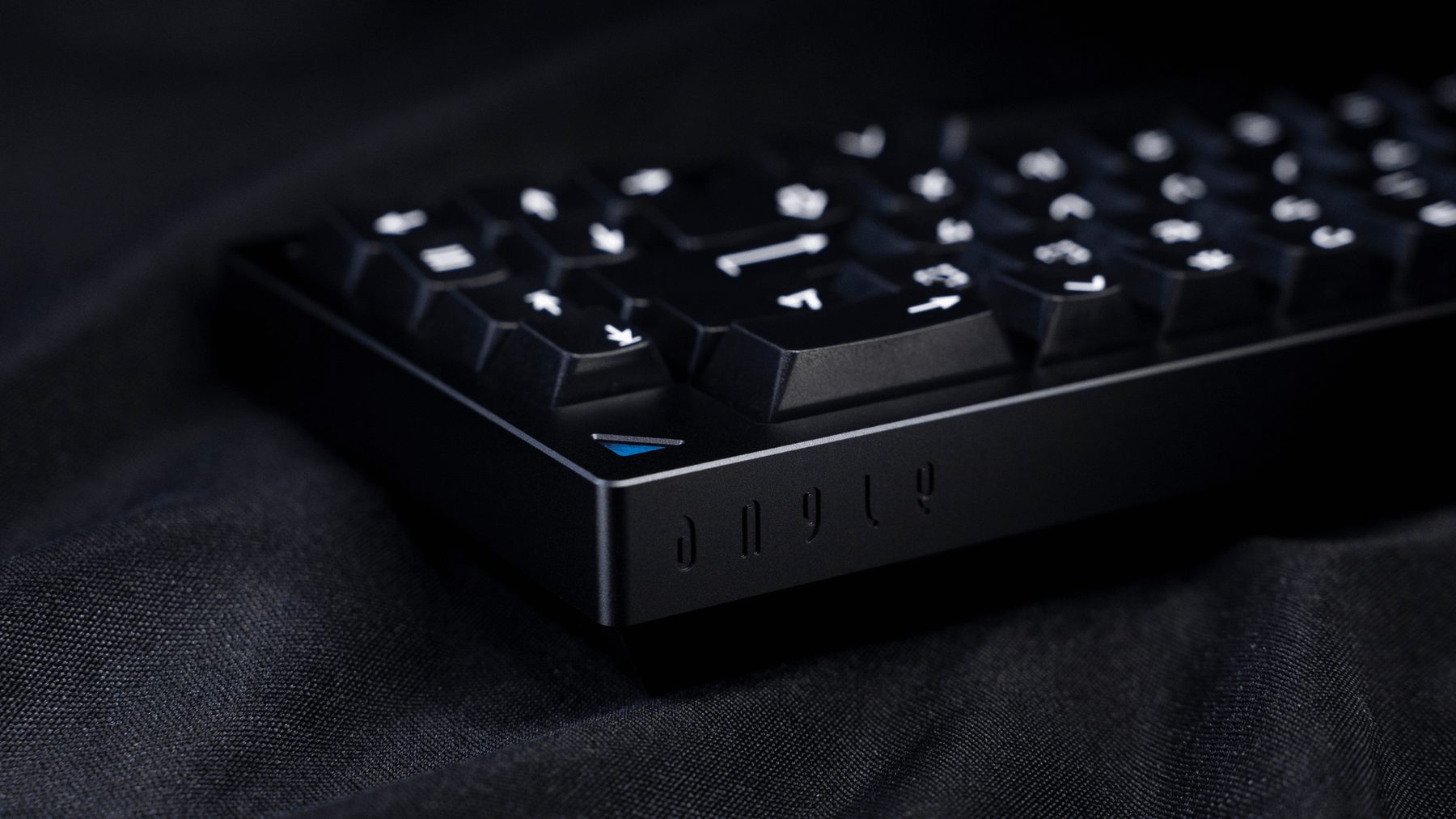

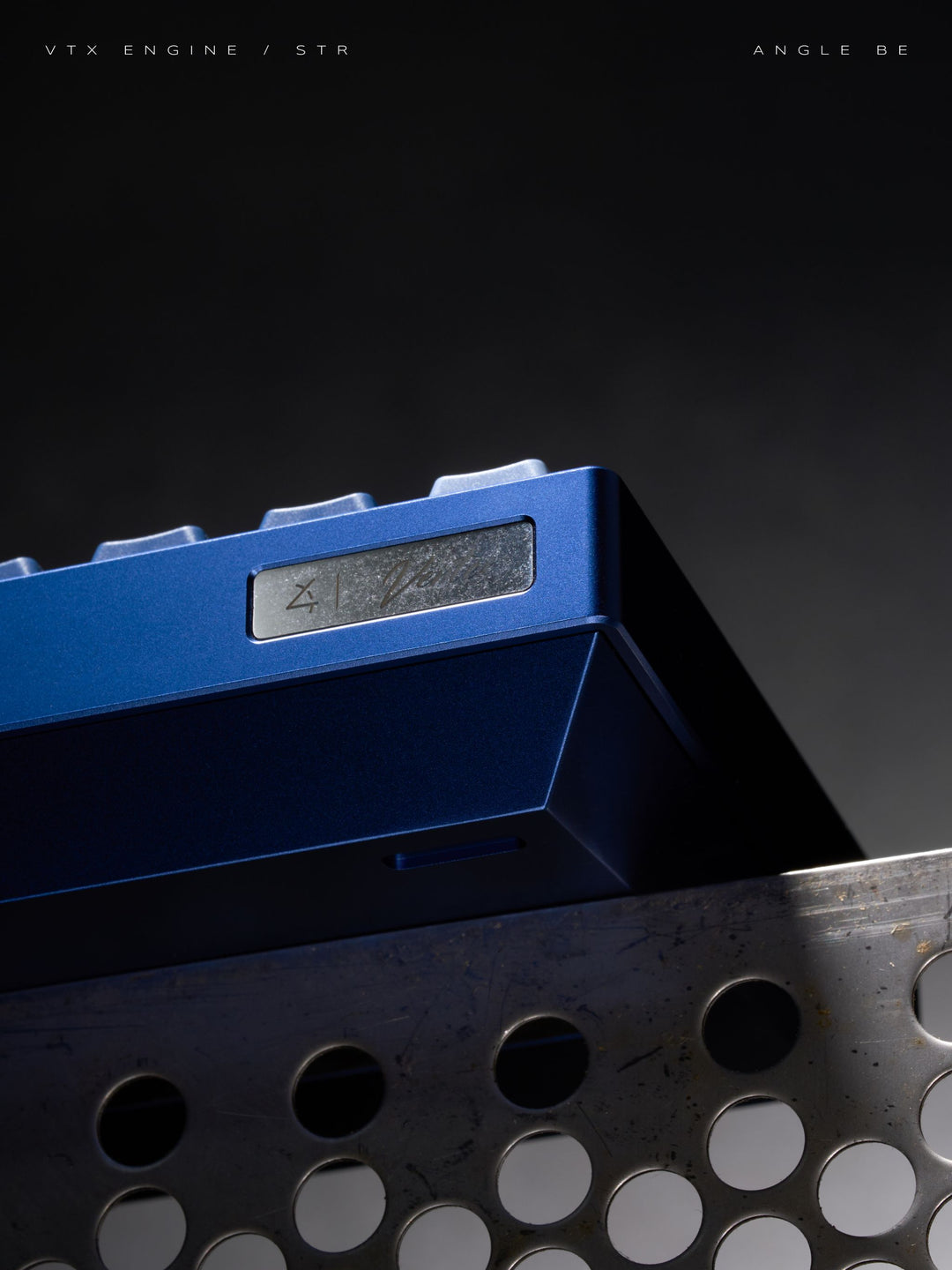

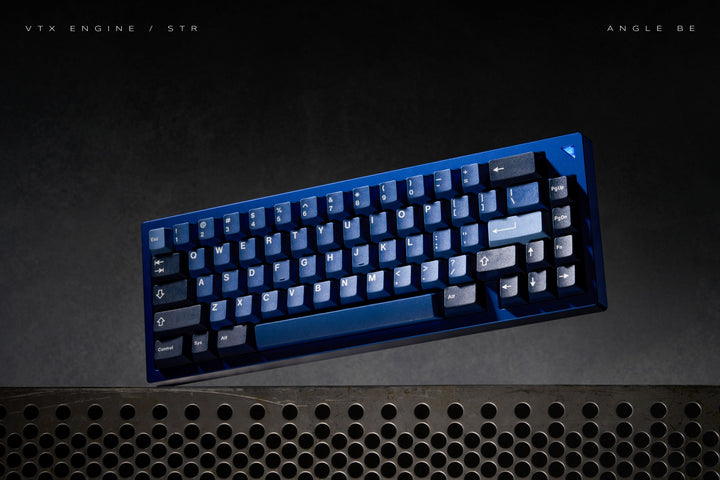

Angle65 is the second design following the Angle80. The moonstone badge, parabolic curves and angular styling are retained design elements in the series. This time each unit is physically serialized with a badge unique to each unit.

Angle65 uses a leaf spring silicone gasket mount. The asymmetric design of the leaf spring arms allows for an even bounce to be felt across the entire keyboard while typing with special attention to the spacebar and alphas. The gaskets fully isolate the plate from the case with the brass midpiece designed for both heft and to positively alter the sound.

Case Specifications:
Material: 6063 Aluminium, Brass, Stainless Steel
Layout: 65%
Typing Angle: 8 Degrees
EKH: 22.46mm
Weight: 1.96kg
Mounting: Leaf Spring Molded Gasket

PCB Specifications:
Material: Black FR4
Thickness: 1.6mm
Connectivity: JST to Unified Daughterboard
Customizability: VIA
Type: Solderable and Hotswap
Designer: Vertex Engine

Vendors:
North America: Bowlkeyboards
Europe: Deltakeyco
China: Vertex
Australia: KeebzNCables
United Kingdom: Prototypist
South East Asia: Pantheonkeys (You are here)

What's Included:

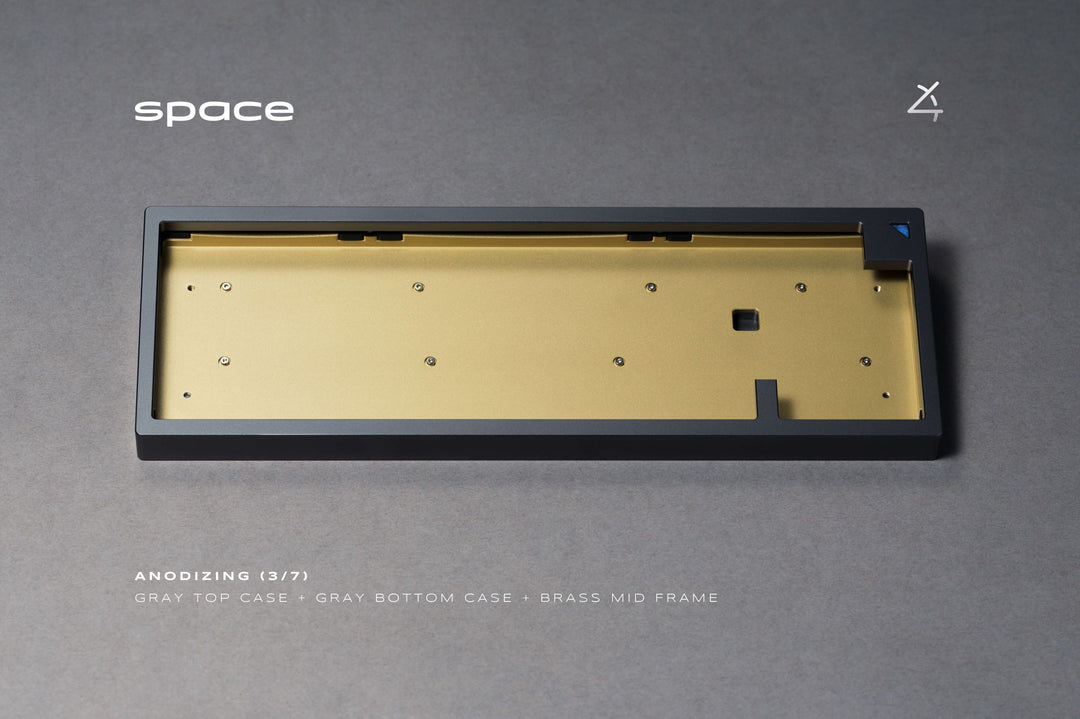

6063 Aluminium Top Case
6063 Aluminium Bottom Case

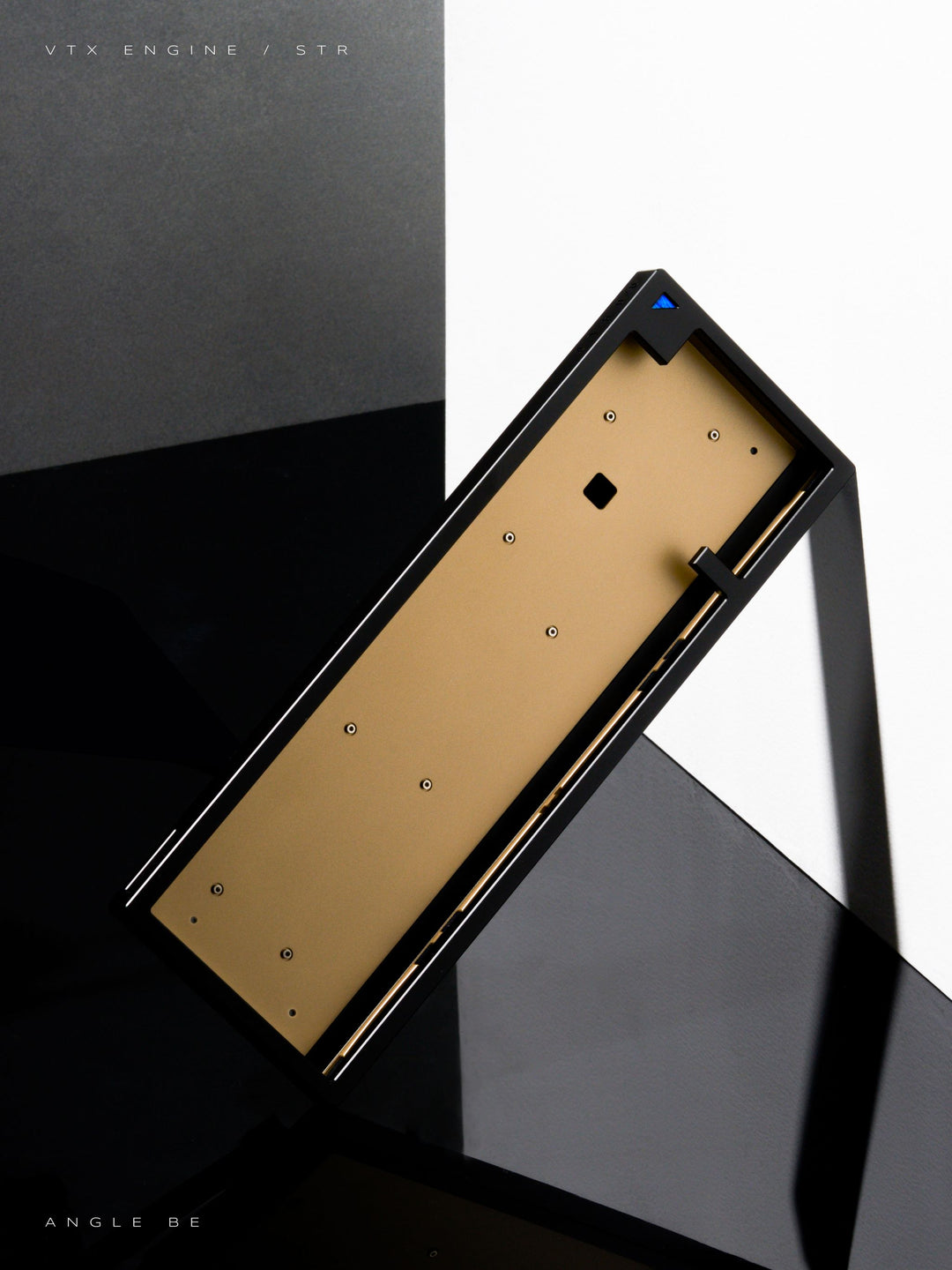

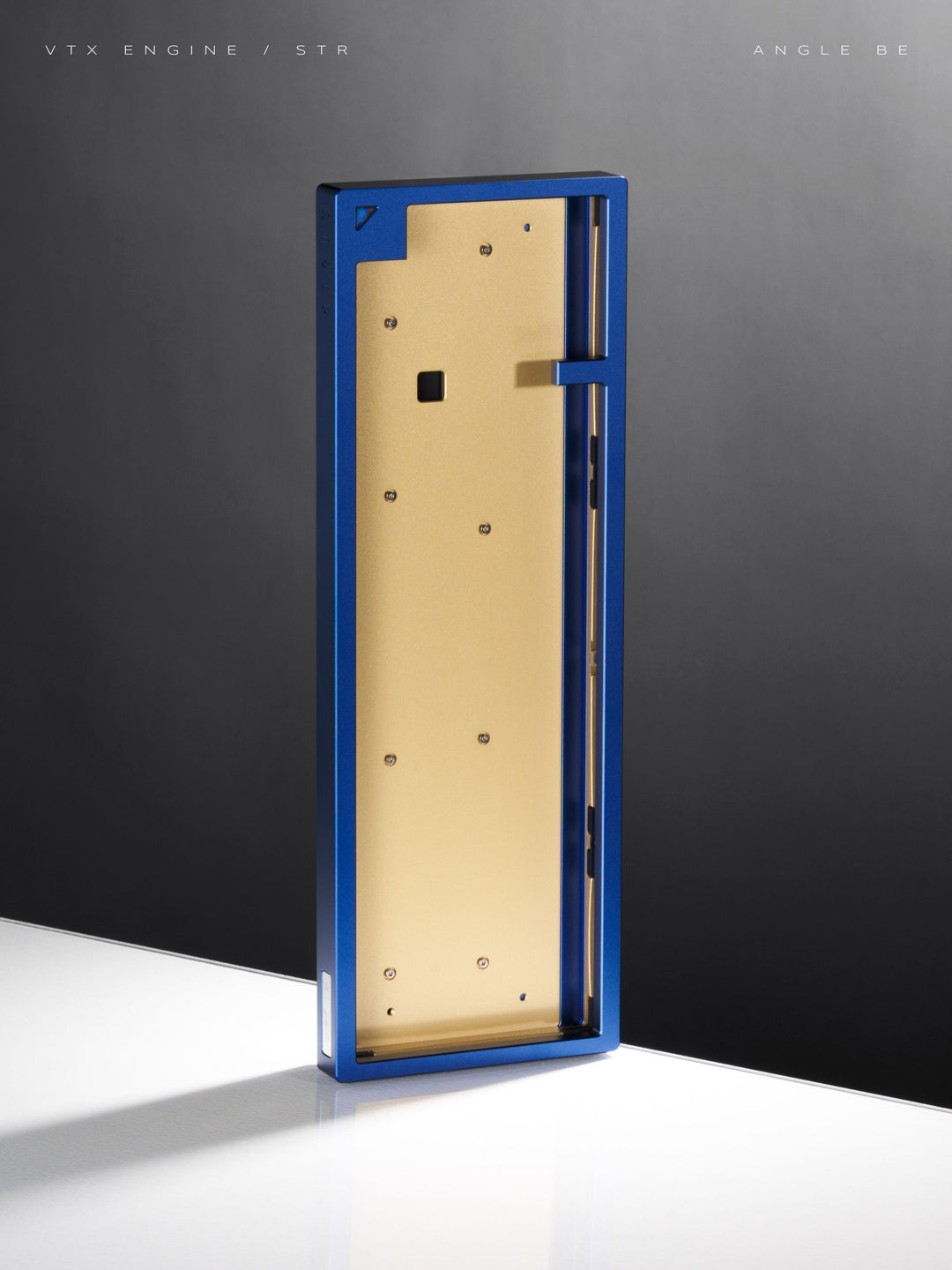

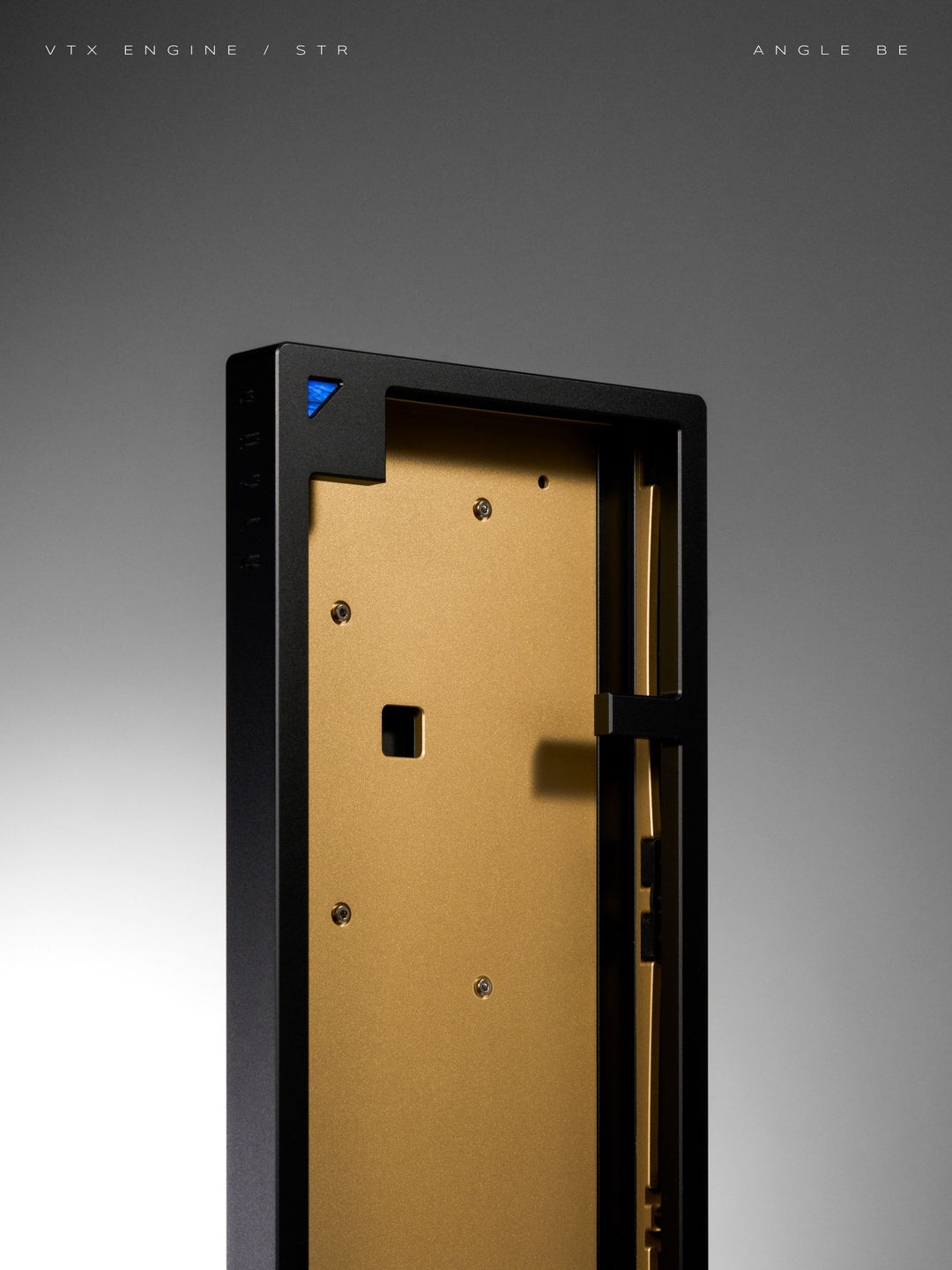

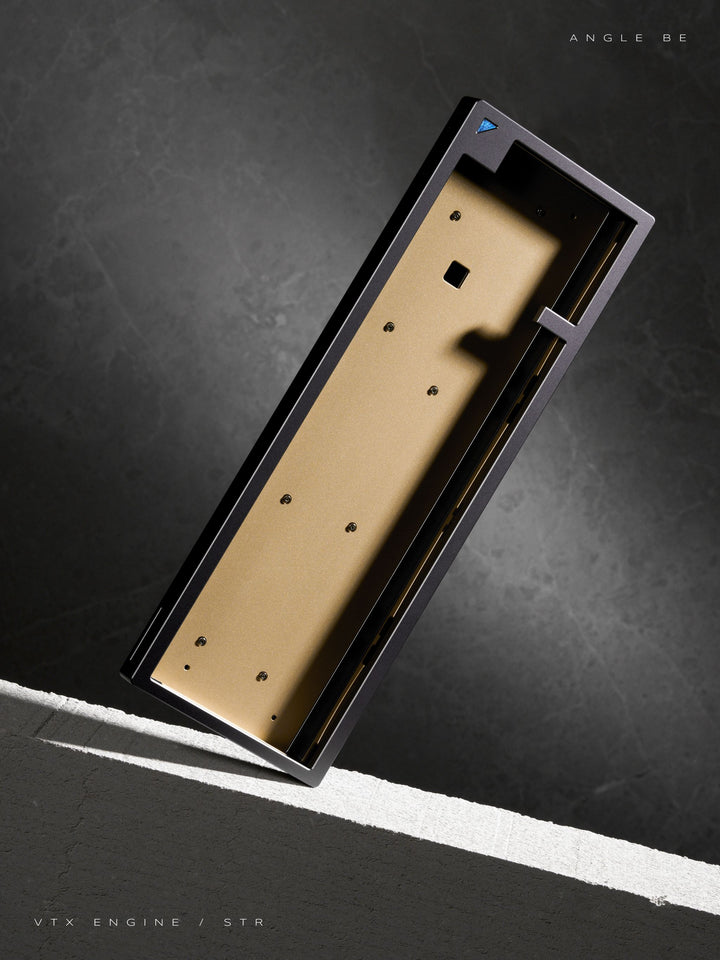

Brass Mid Piece

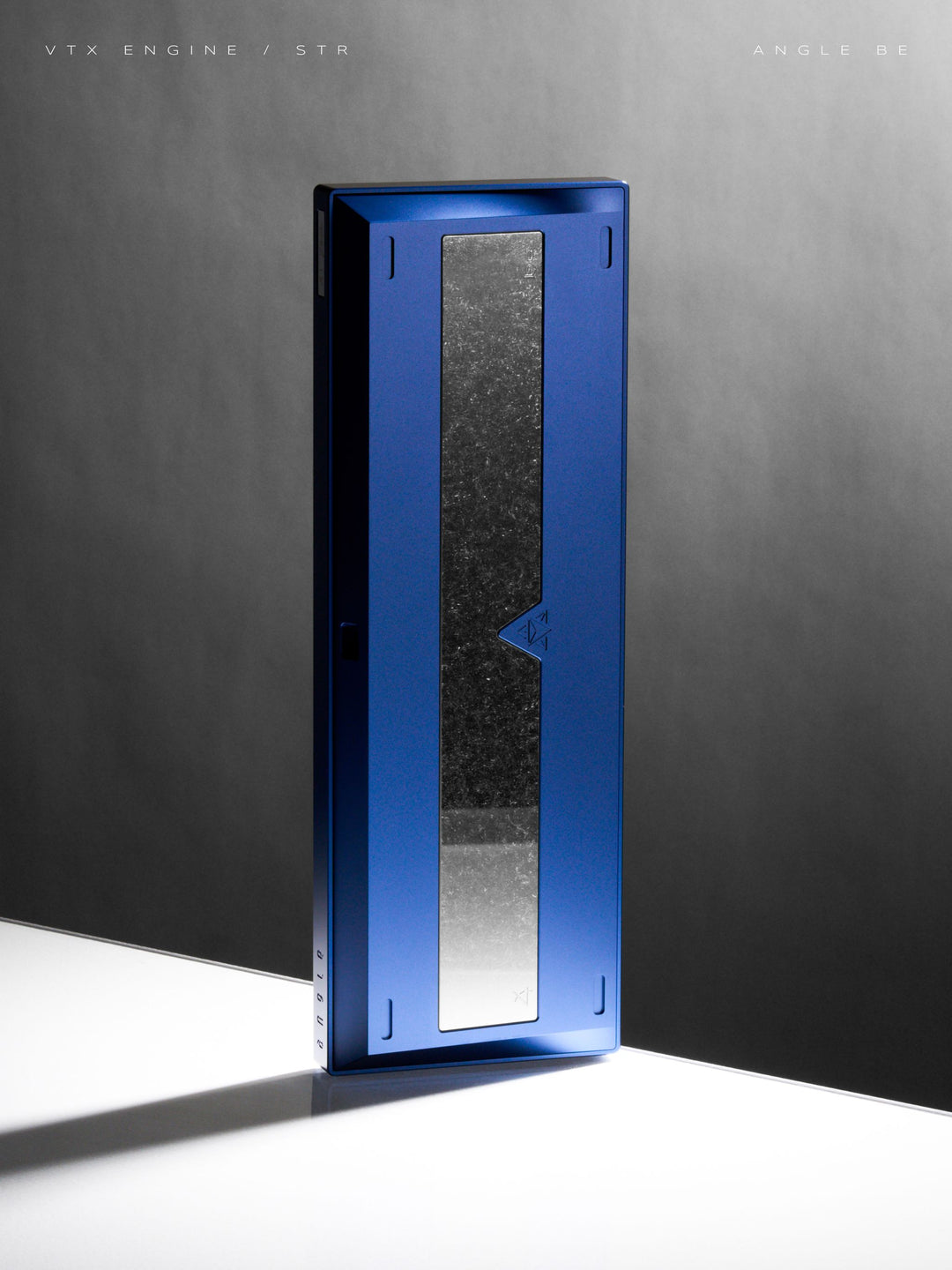

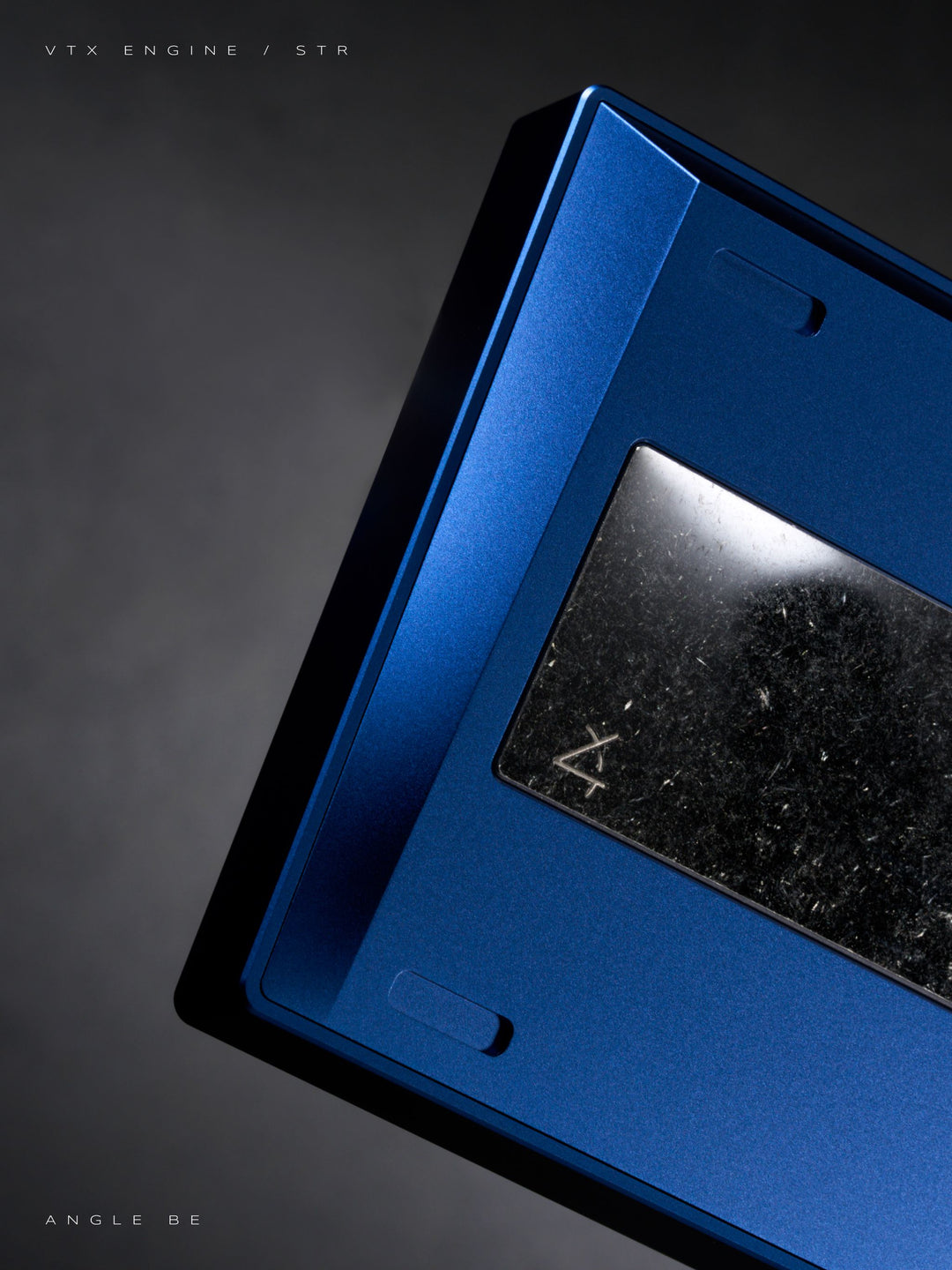

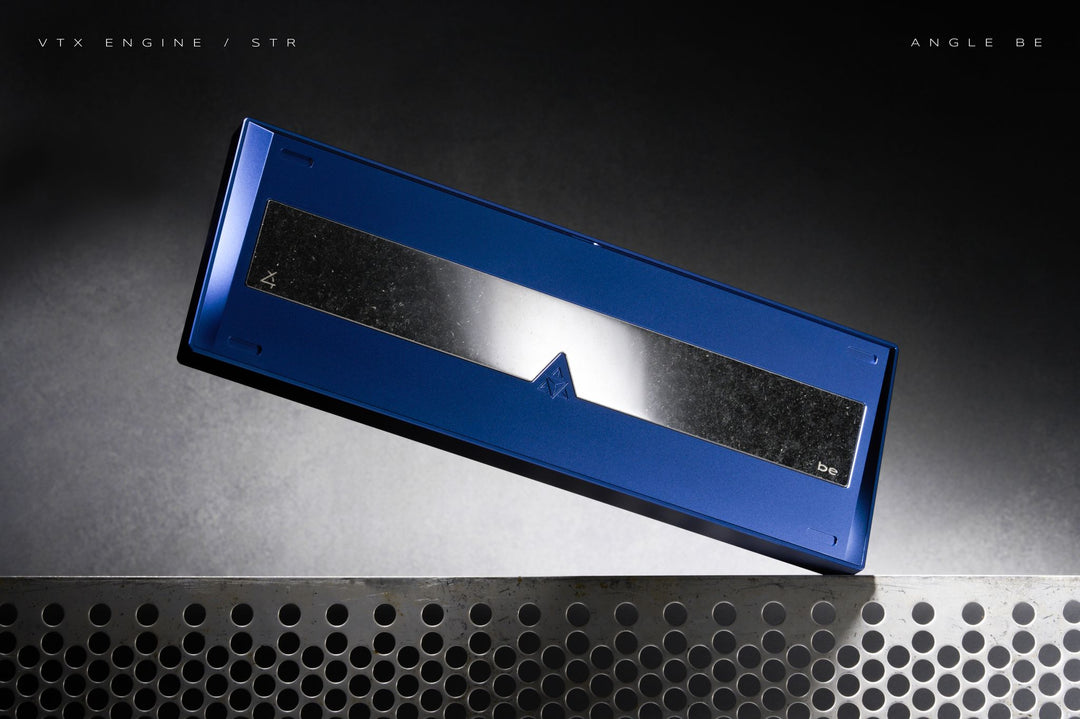

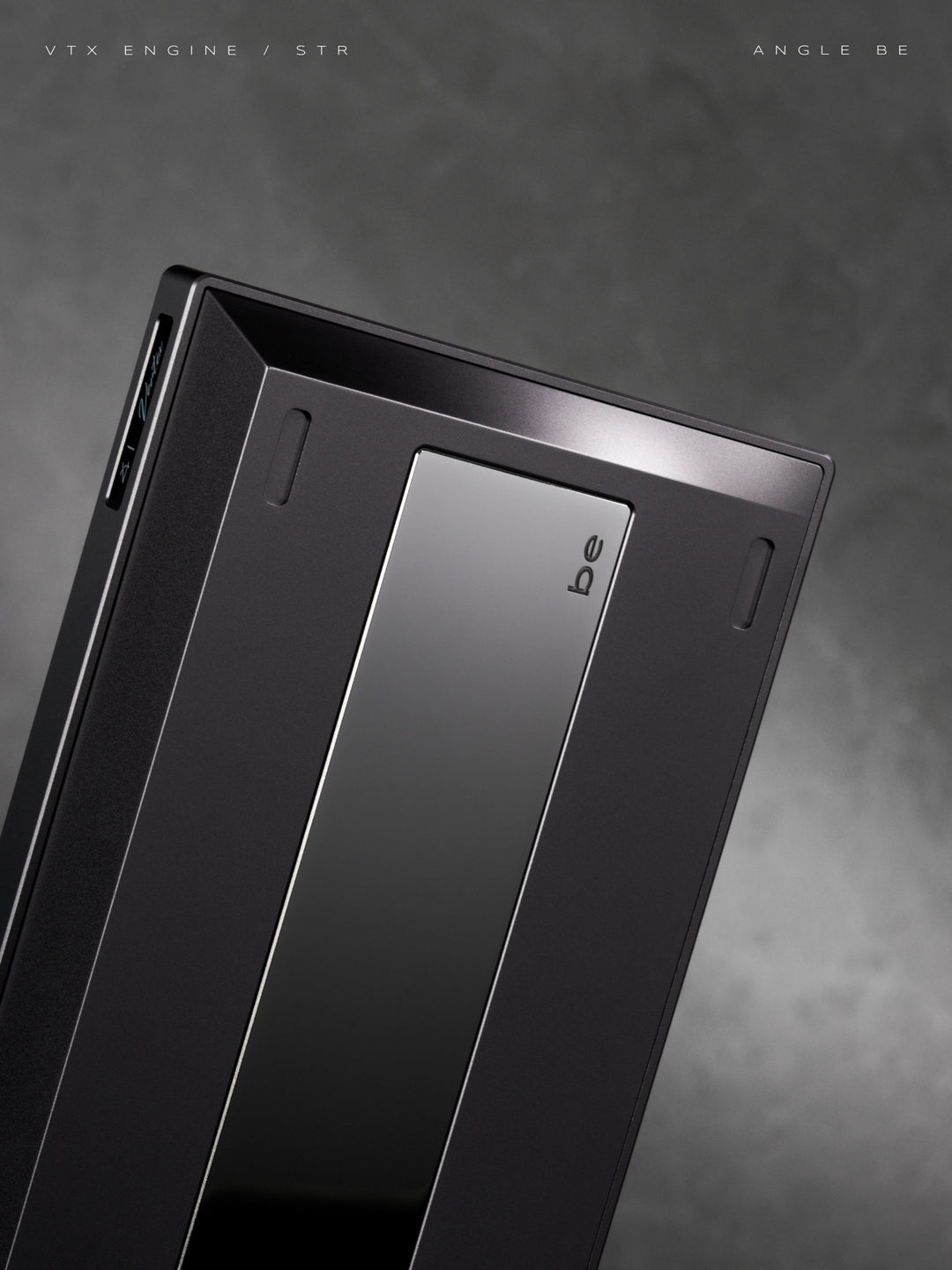

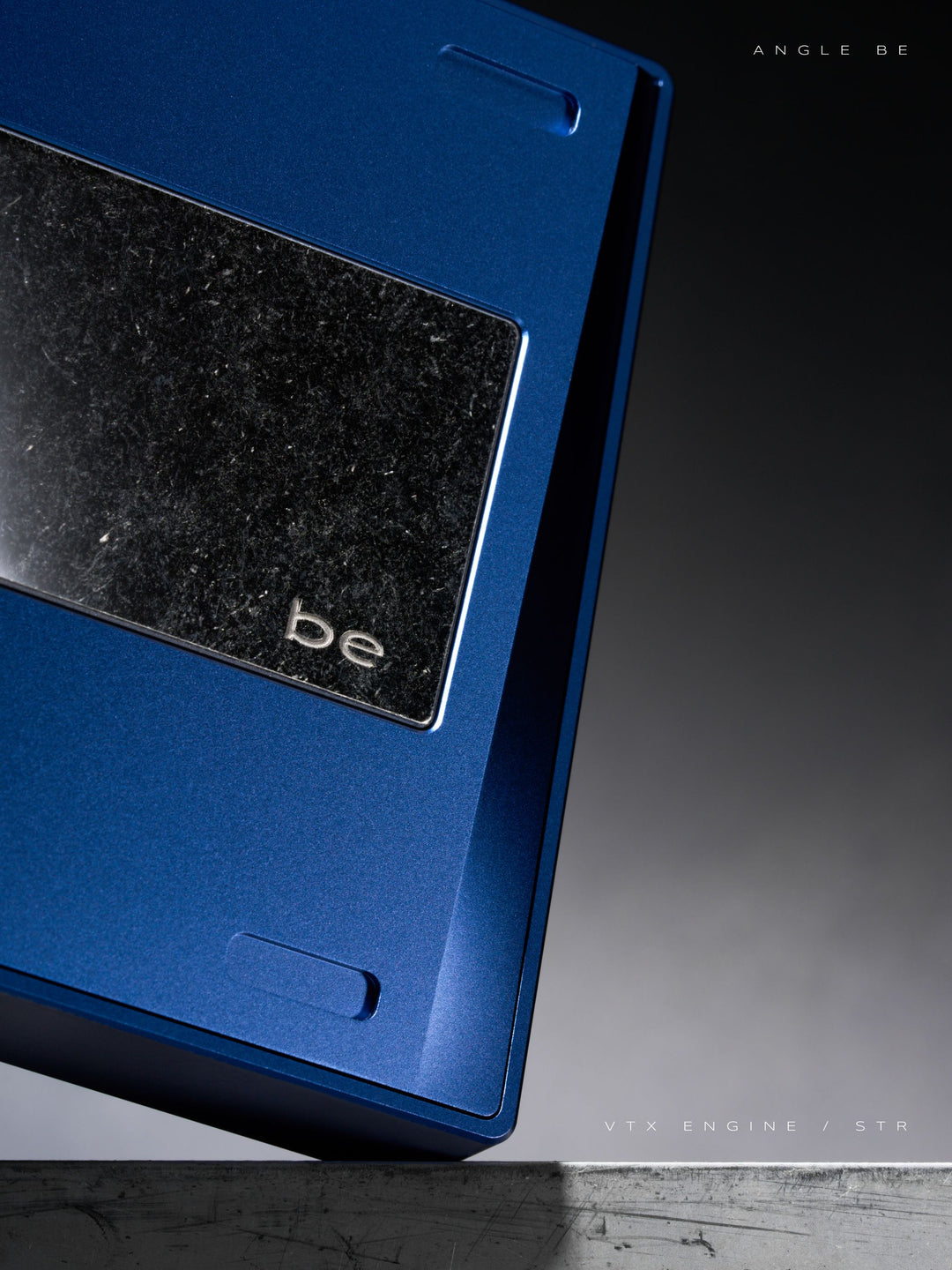

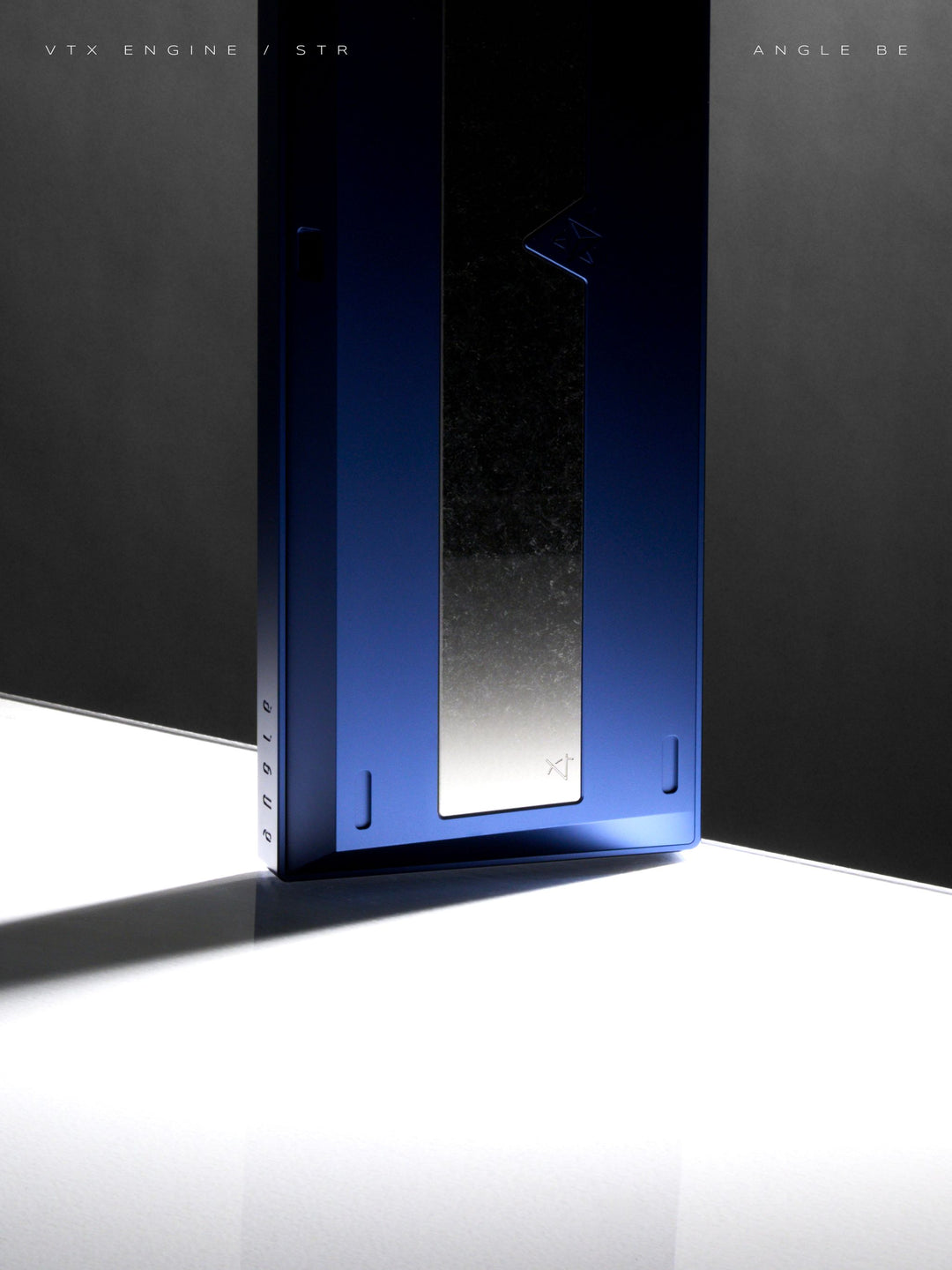

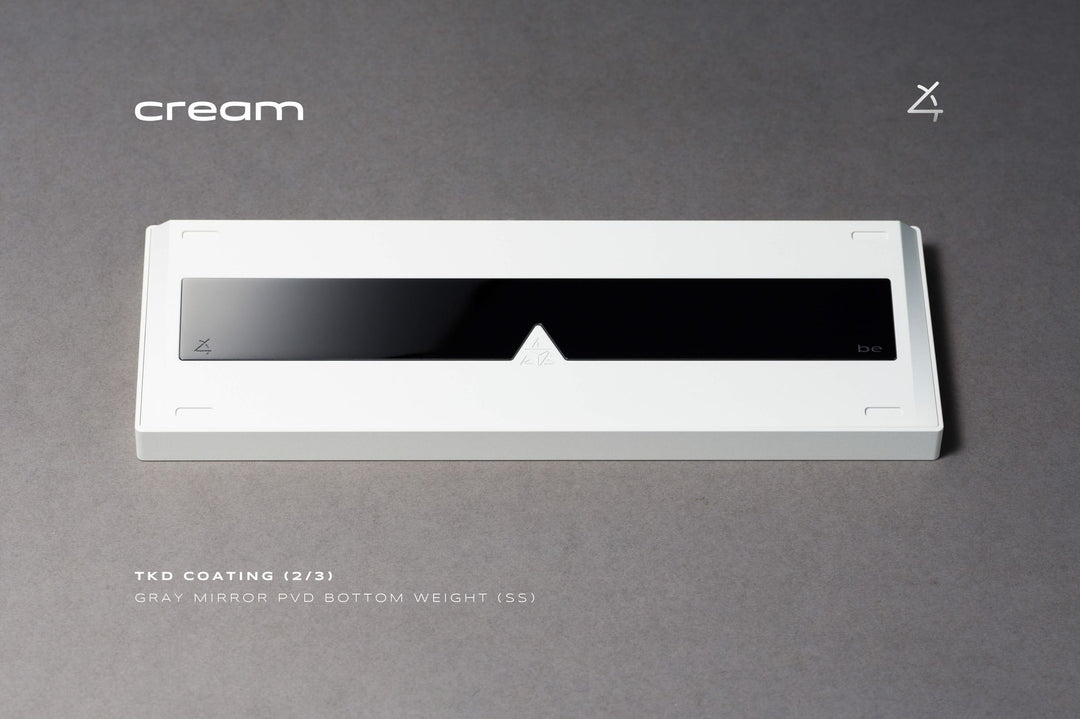

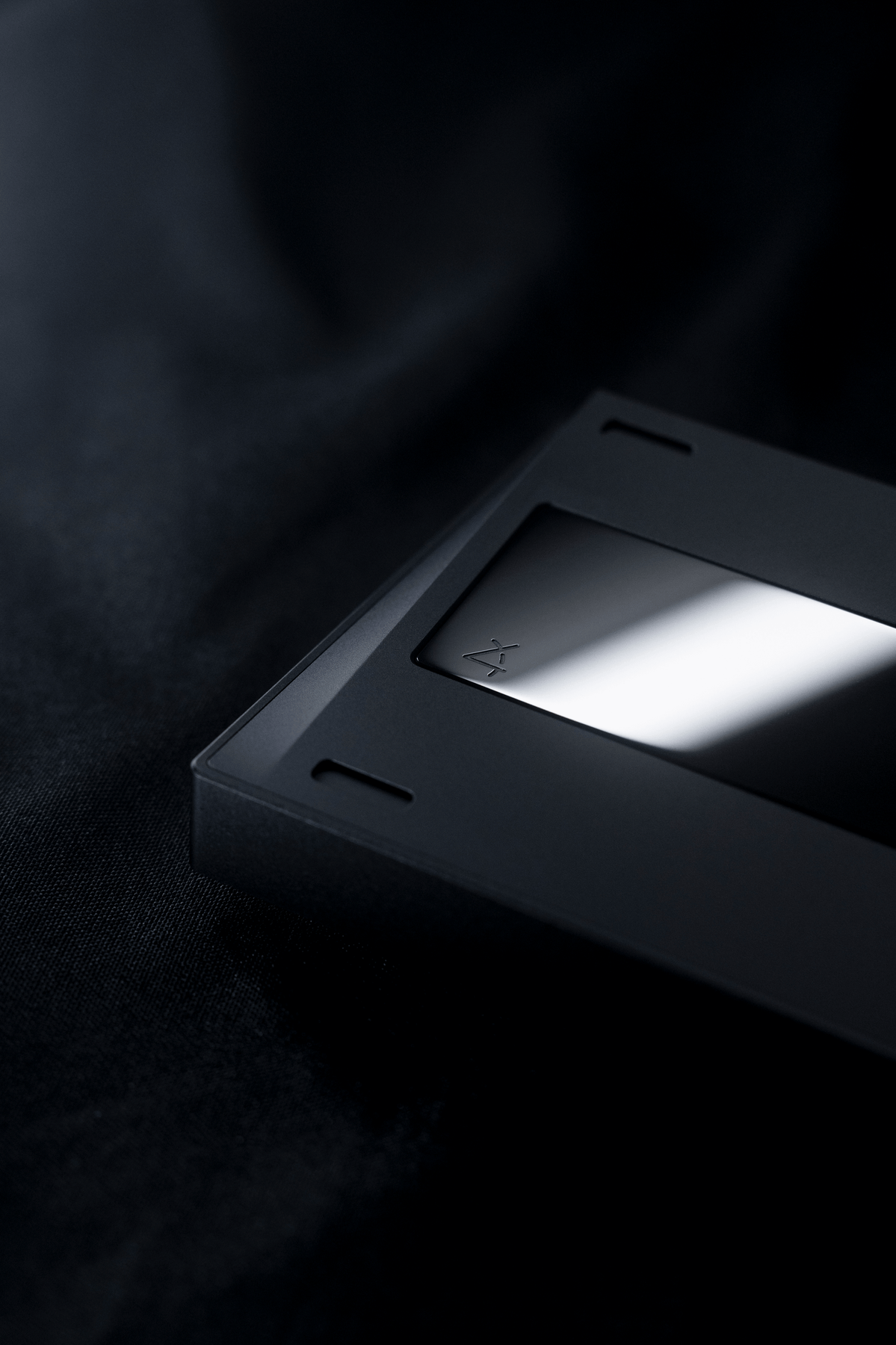

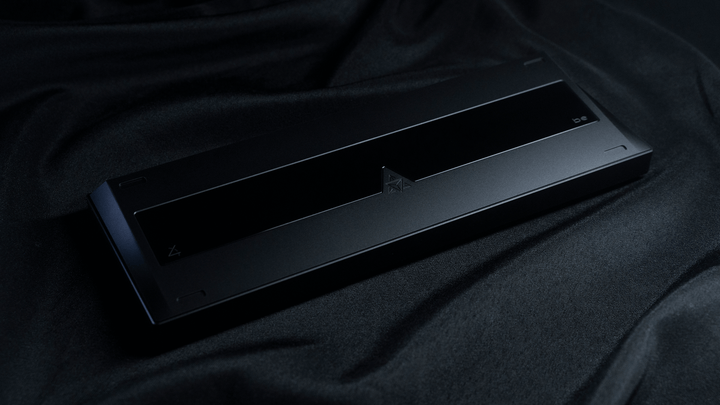

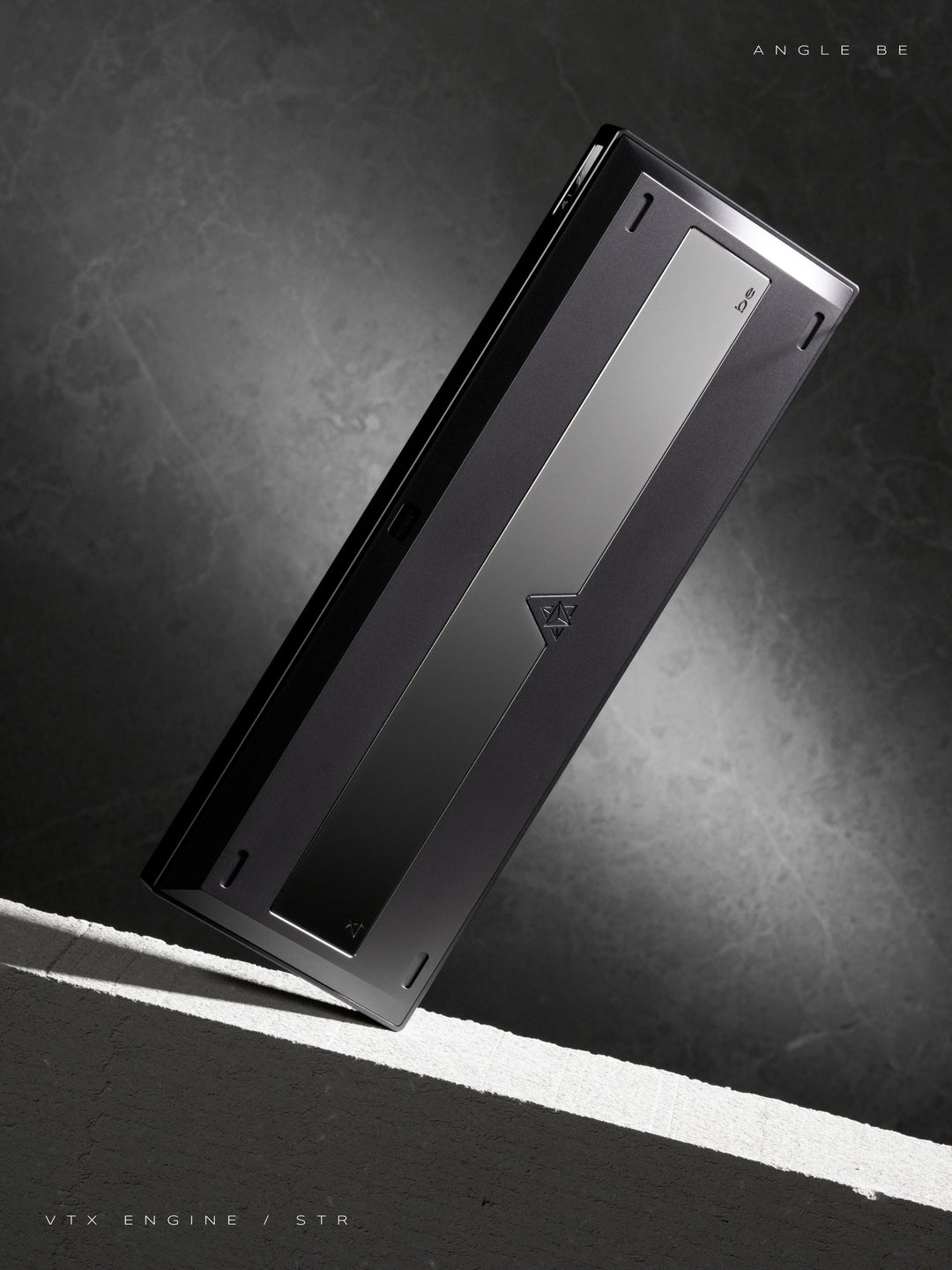

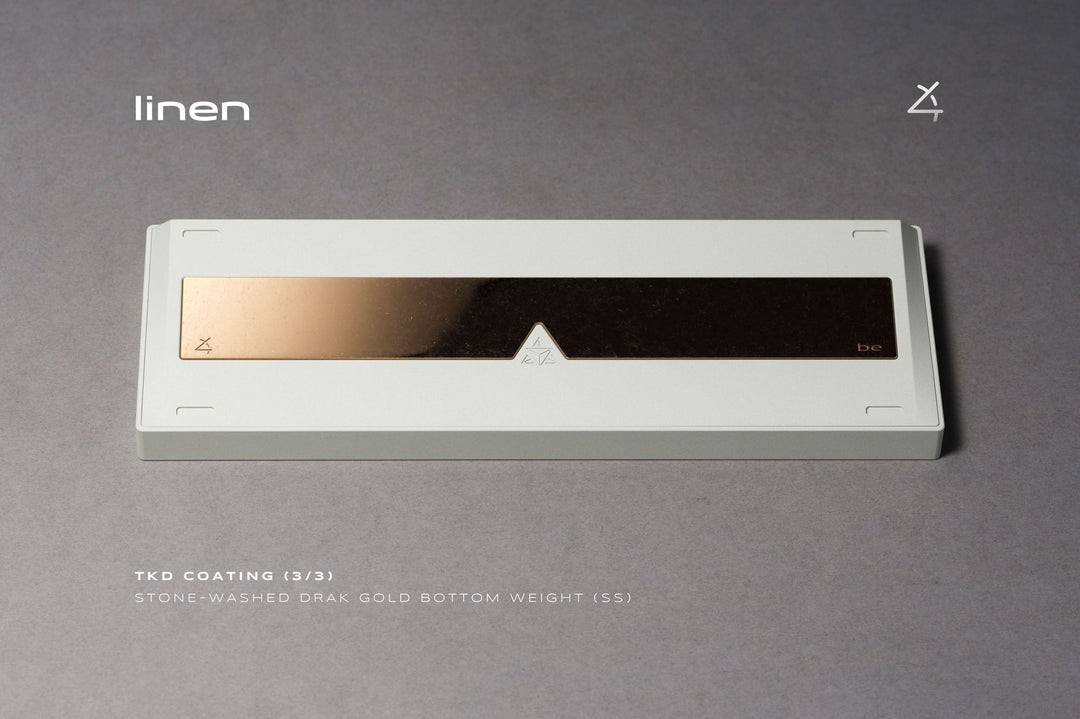

Stainless Steel Weight and Badge
Corner Blocker Badge
Gaskets, Screws, Accessories necessary for assembly

PCB Compatibility (Hotswap):

PCB Compatibility (Soldered):
