ND104 — Full-Size Precision, Elevated

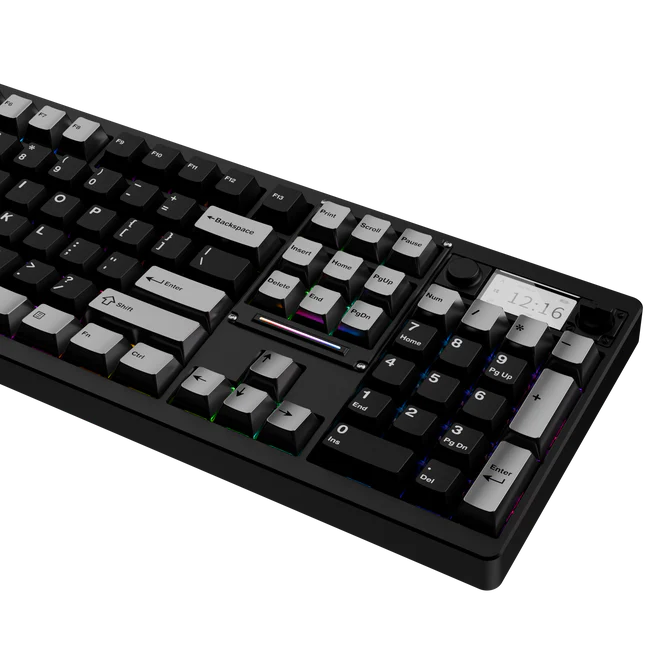

Featuring a built-in calculator screen, ambient lighting, and office-tailored switches, the ND104 delivers a smooth, quiet, and crisp typing experience designed for both work and style.
ND104— Crafted for Elegance, Built for Work
귀하의 브랜드 정보
큰 텍스트와 이미지를 결합하여 스토리를 전달하고, 제품에 대한 세부 정보를 설명하거나, 새로운 프로모션을 설명하세요.
귀하의 브랜드 정보
큰 텍스트와 이미지를 결합하여 스토리를 전달하고, 제품에 대한 세부 정보를 설명하거나, 새로운 프로모션을 설명하세요.

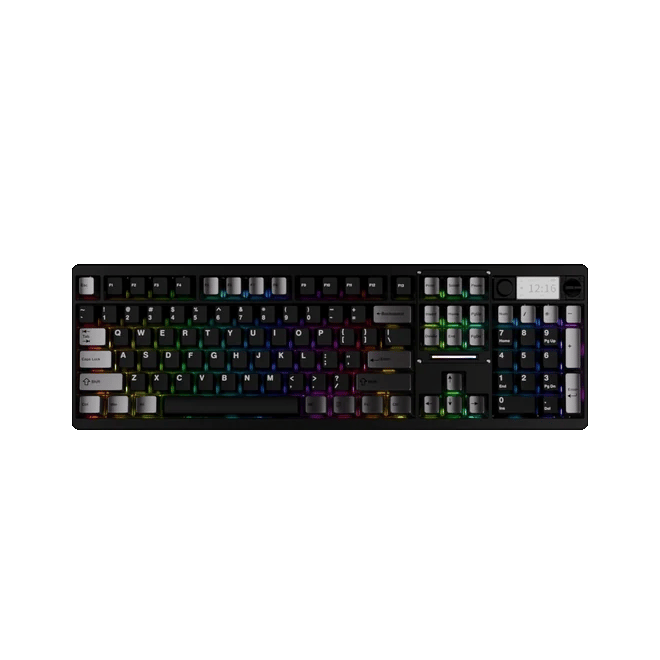

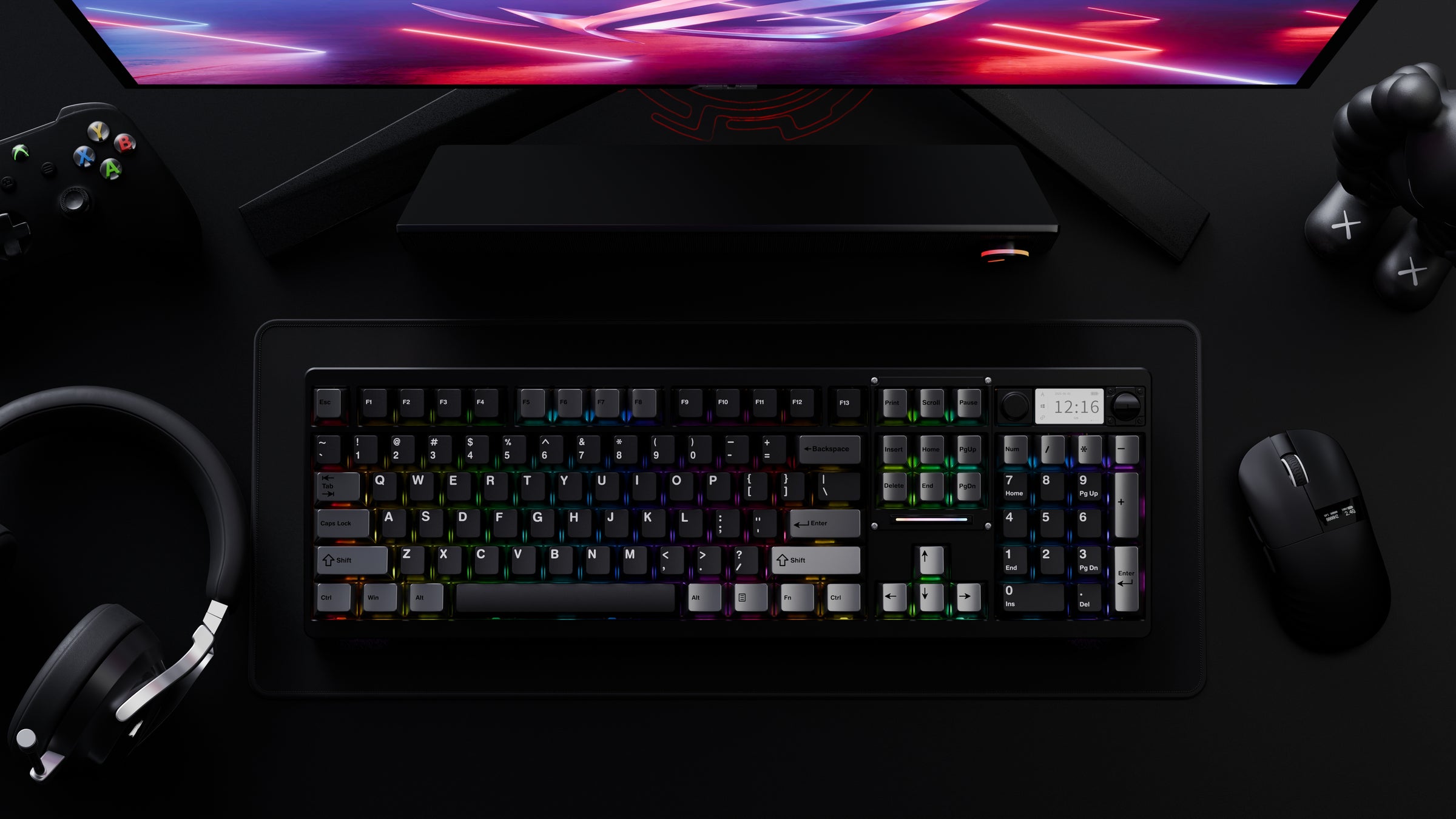

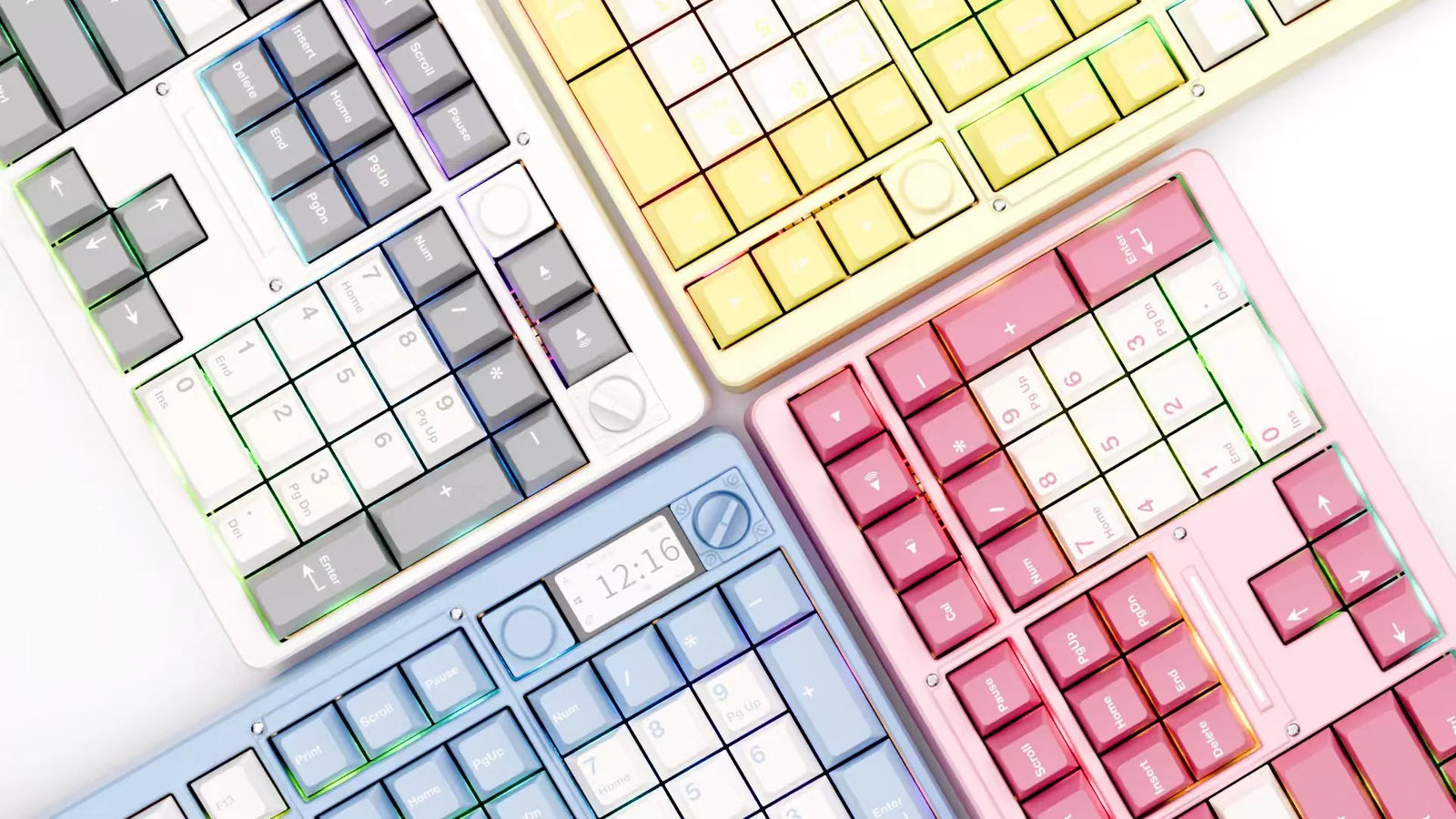

Glare-Free Immersive RGB
The light softly emanates from the gaps between the keys, creating a unique surround lighting effect that minimizes direct glare and enhances an immersive desktop ambiance.

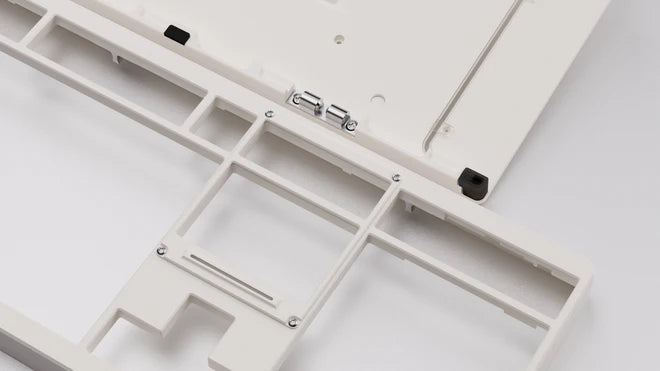

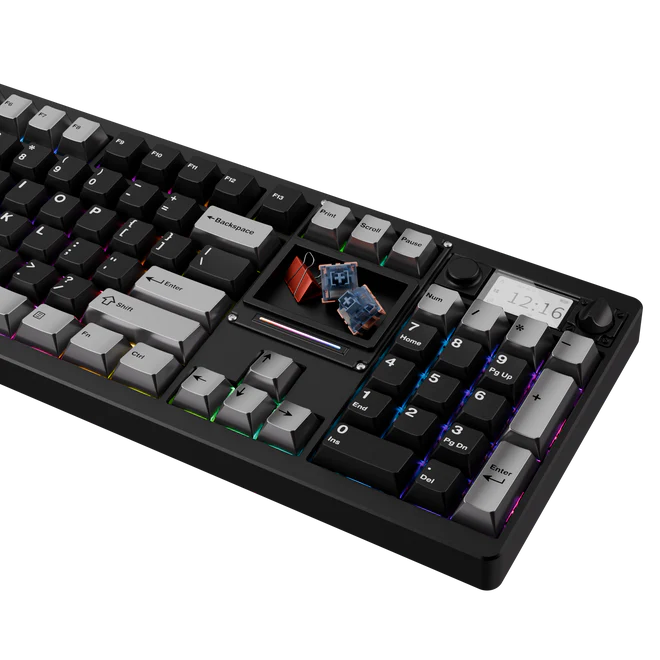

Hidden Storage Compartment — Keep Your Essentials Handy
The ND104 isn’t just a keyboard — it comes with a built-in mini storage compartment.
Perfect for keeping small essentials like USB drives, wireless receivers, spare switches, or keycaps within reach. A smart design that combines functionality with convenience, so your desk stays neat and organized.

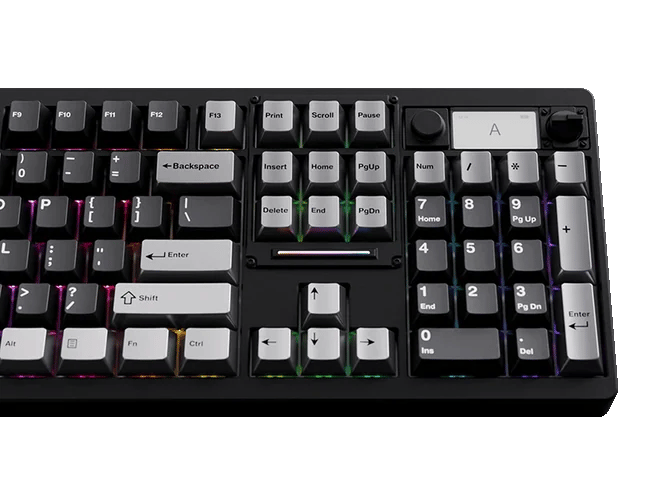

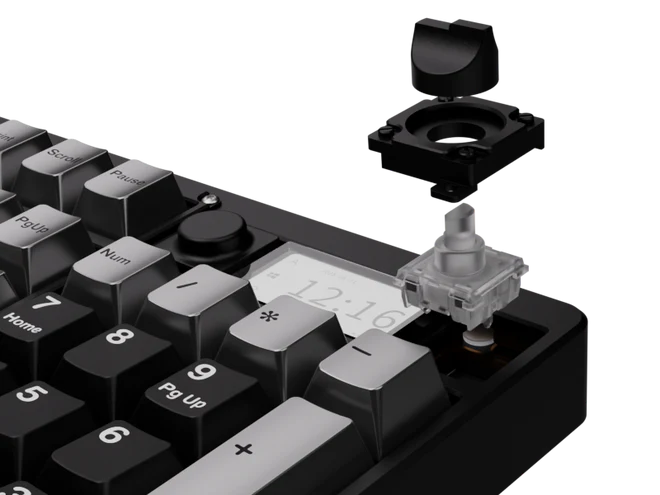

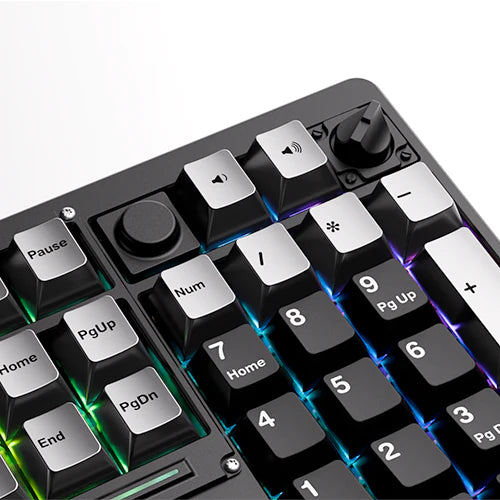

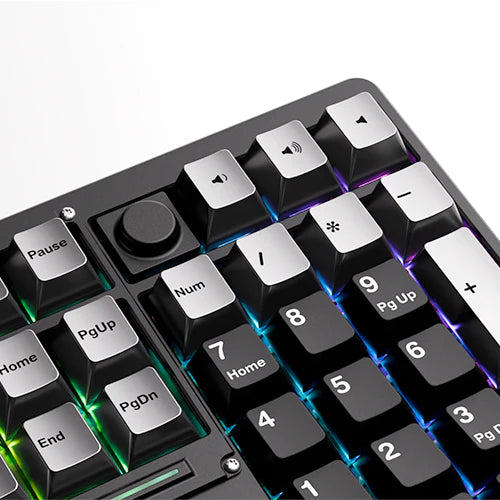

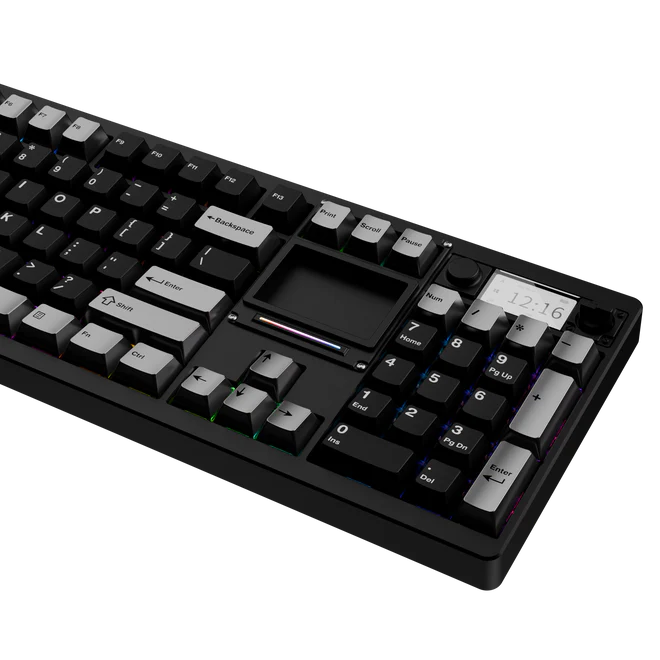

One Keyboard. Modular LCD, Keys, and Knob.
ND104 shatters limits with flexible screen/knob layouts.
*Note: volume keycaps excluded, indicating key function only, key value can be remapped from web-based software or VIA

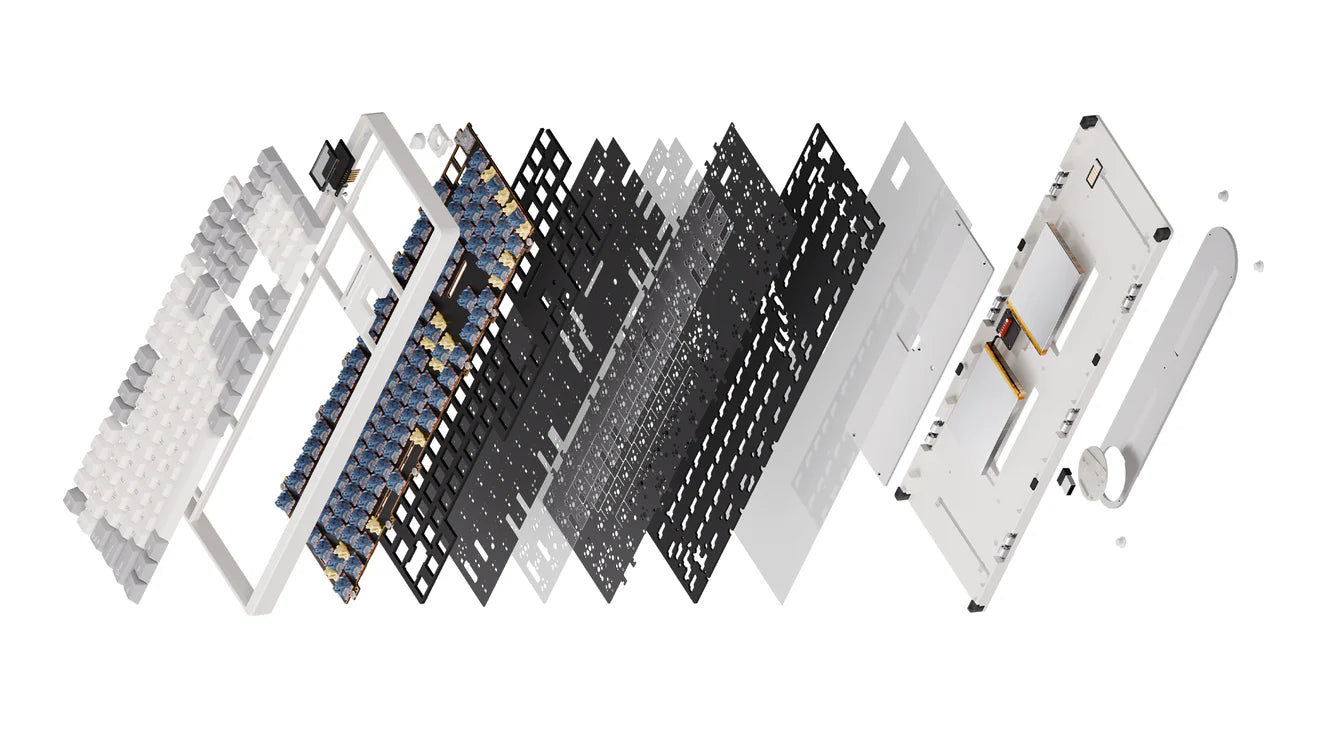

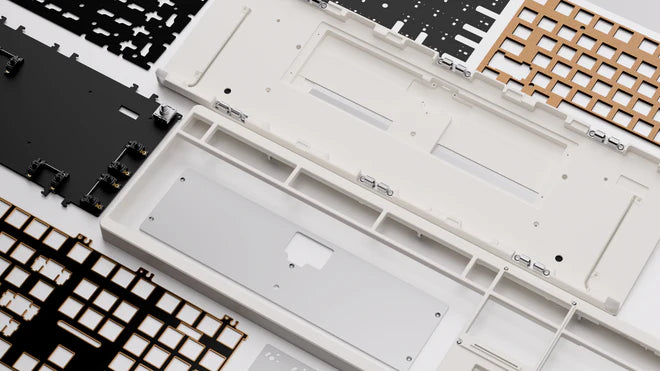

Engineered for Sound & Feel
The ND104 features a precision-machined 6063 aluminum case with premium anodized or Electrostatic spraying.

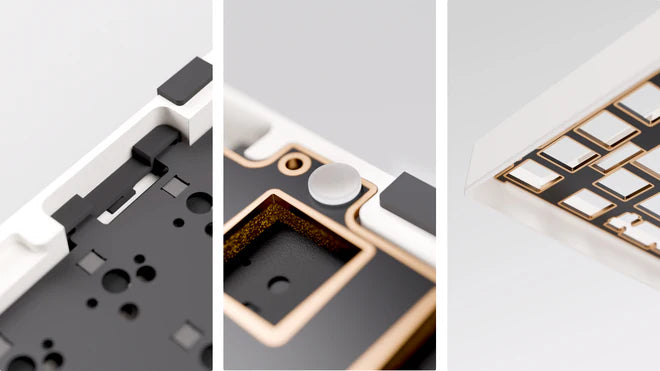

Five layers of precision damping—including plate foam, switch foam, PET acoustic pads, and case foam—work in harmony to eliminate vibration and deliver a deep, clean acoustic profile.
Complete with an FR4 gold-immersion plate, the ND104 delivers unwavering consistency in both sound and tactile response.
ND104 Product Information
| Case | 6063 Aluminium |
|---|---|
| Colour & Surface Finish | Anodising(Shadow Black) / Acustatic (Lunar White, Sky Blue, Soft Pink, Lumen Yellow) |
| Sound Dampening | 5 layers |
| Backlight | RGB |
| Plate | Material: FR4 |
| Weight | Material: Aluminium Process: Anodising/Acustatic |
| Battery | Capacity: 4000mAh x2 (8000mAh Total) Battery Life (Lighting On/Off) BLE Mode (Lighting & Screen On): 28hr / (Off): 118hr 2.4GHz Mode (Lighting & Screen On): 29 hr / (Off): 109 hr |
| PCB | Material: FR4 Feature: Flex Cut Thickness: 1.2mm, 1.6mm |
| QMK/VIA Support | VIA Supported |
| Latency Data | USB: 5.88ms / BLE: 12ms / 2.4GHz: 8.37ms |
| Number of Keys | 106 Keys |
| Driver Type | Standalone Driver |
| Full N-Key Rollover (NKRO) | Yes |
| User Manual Included | Yes |
| Stabilisers | Plate-Mounted Stabilsers (Steel) |
| Cable | Type-C |
| Kit Parameters | Layout: 104% Hot-Swap: Yes Bluetooth Version: BLE 5.4 Bluetooth Protocol: BLE Connectivity: Tri-Mode (USB Cable / BLE / 2.4 GHz) Simultaneous Device Connections: 3 Devices Dimesnsions(LxWxH): 437.6 x 140.1 x 34.4 mm Bluetooth Polling Rate: 133Hz 2.4GHz Polling Rate: 1000Hz Wired Polling Rate: 1000Hz OS Support: Windows / macOS / Linux / Android |

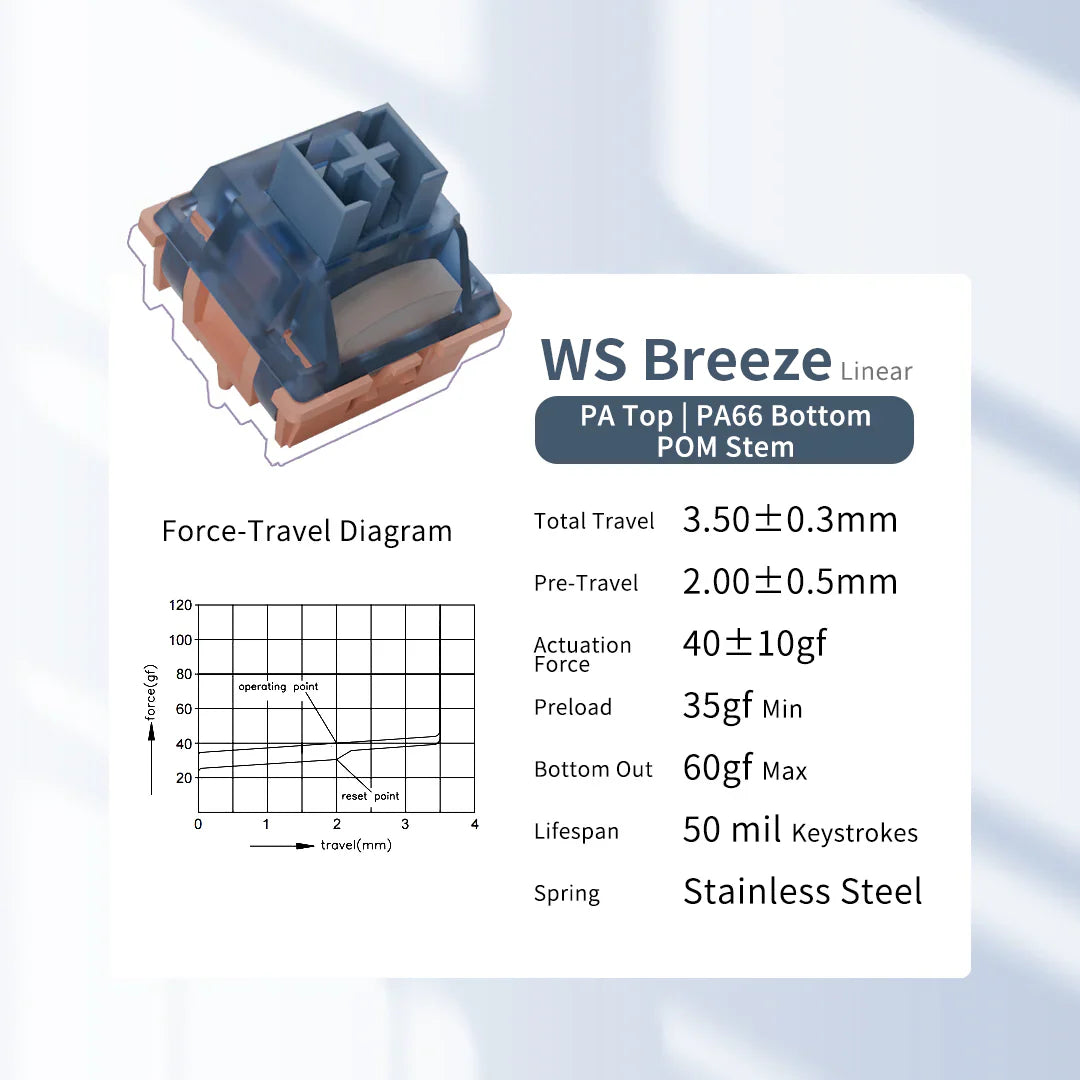

| Breeze Switch (Make typing like a breeze) | Top Housing Material: PA Stem Material: POM Life Long: 500,000 Cycles Work Force:40±10gf Total Travel: 3.50±0.3mm Pre-travel: 2.00±0.5mm |

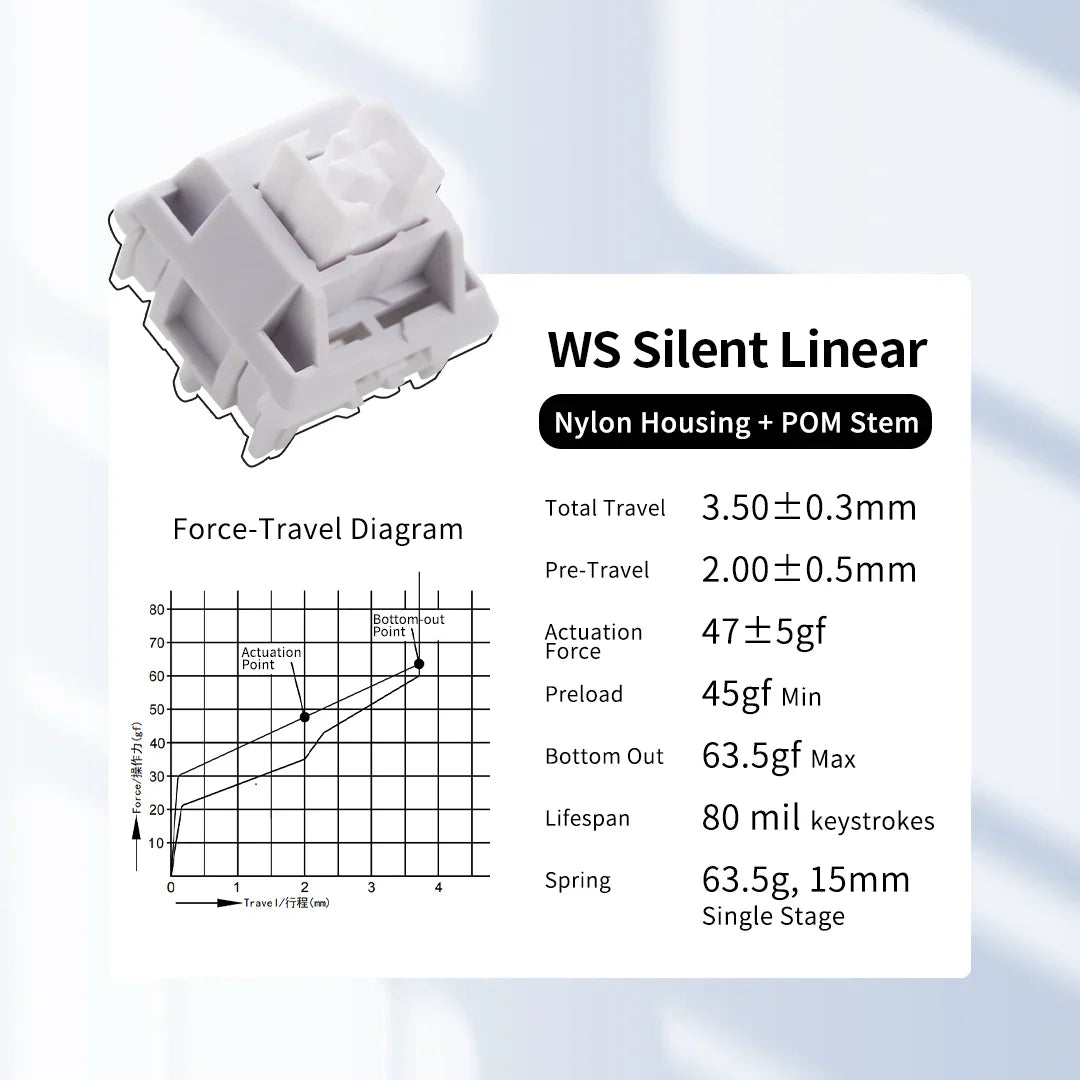

| WS Silent Linear Switch | Top Housing Material: Nylon Stem Material: POM Life Long: 800,000 Cycles Work Force: 47±5gf Total Travel: 3.50±0.3mm Pre-travel: 2.00±0.5mm |
2 Different Switches Edition
