[Pre-order] Evoworks Evo75 75% Mechanical Keyboard

Estimated Shipping: Mid October 25

Specifications:

Size: 323.35mm x 143.43mm
Case Material: CNC-machined 6063 Aluminium
Layout: 75%
Net Weight: 1997g
Keycaps: 1.7mm 5-sided Dye-Sub PBT
PCB: Hot-swappable PCB with Per-key RGB
Functions: QMK/VIA Compatible; NKRO; All-key Remappable
Connectivity Methods: Wired/Bluetooth/2.4Ghz
Polling Rate: Wired/2.4G: 1000hz, Bluetooth: 125Hz

Content List

• Items Included in Package:
  • 1x Carrying Case
  • 1x Keyboard Pouch
  • 1x Evo75 Keyboard
  • 1x Accessory Bag
  • 1x User Manual
  • 1x QC Certificate
  • 1x Warranty Card
  • 1x 2.4G Receiver
• Complimentary Items:
  • 1x USB A-C Cable
  • 1x Keycap/Switch Puller
  • 3x Spare Switches
  • 1x Dust Cover
  • 2x Leaf Spring Silicone
  • 2x Gasket Strips
  • 3x Мас Add-on Кеусарs

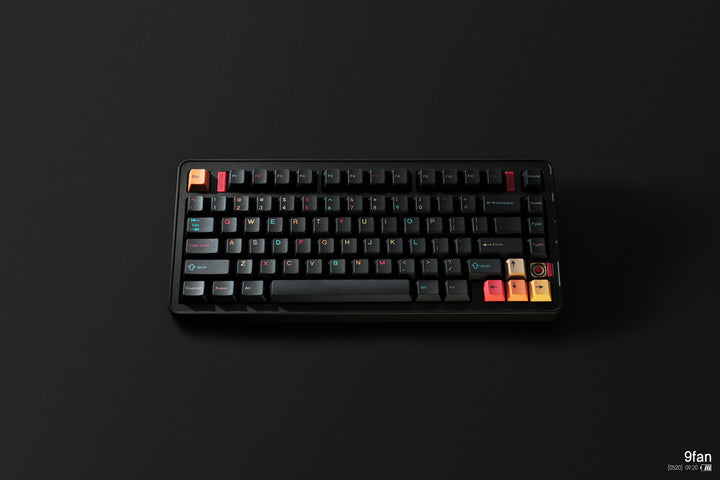

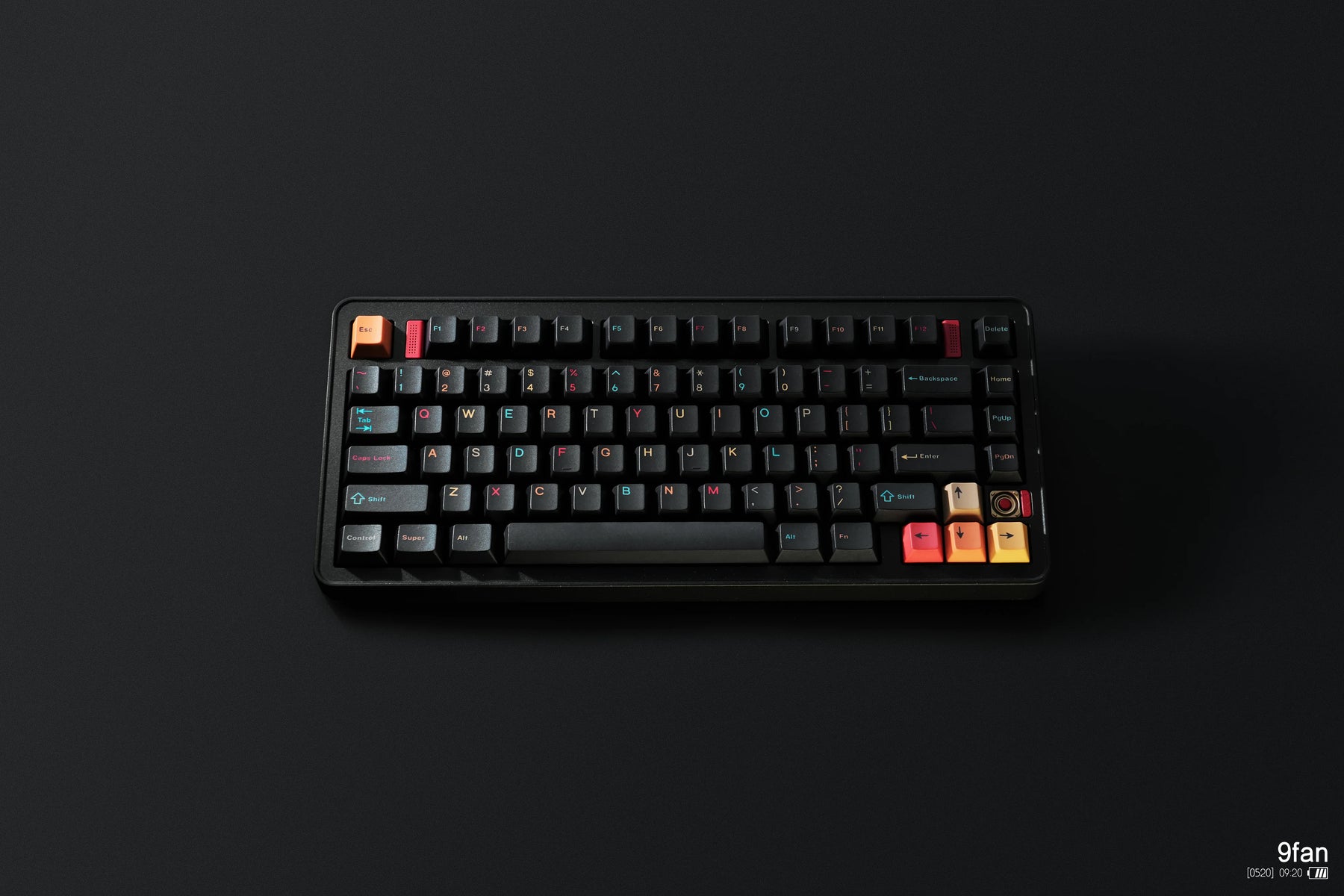

The new Evo75 keyboard builds on the beloved sleek rounded profile of its predecessor, the Evo80, while elevating the design to new heights of sophistication.

The front features a gently raised contoured frame that adds elegance to the profile while maintaining comfort. Clean, precise lines enhance its premium aesthetic, delivering a visually richer experience.

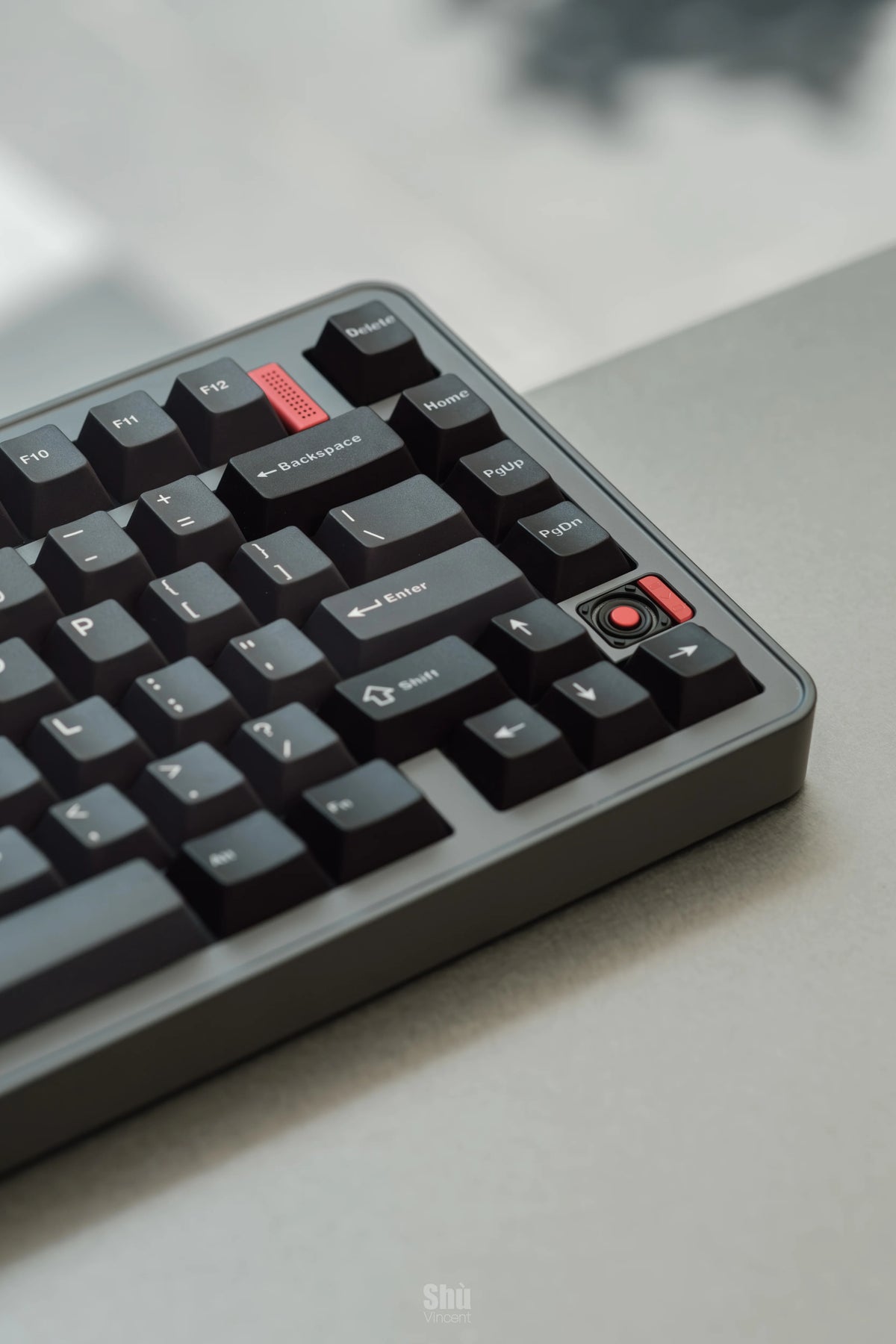

The top case features three discreet yet distinctive LED accents. An eye-catching starburst pattern above the arrow keys seamlessly integrates with the lighting mode toggle button. This signature lighting element enhances the keyboard's visual identity while providing convenient access for daily lighting adjustments.

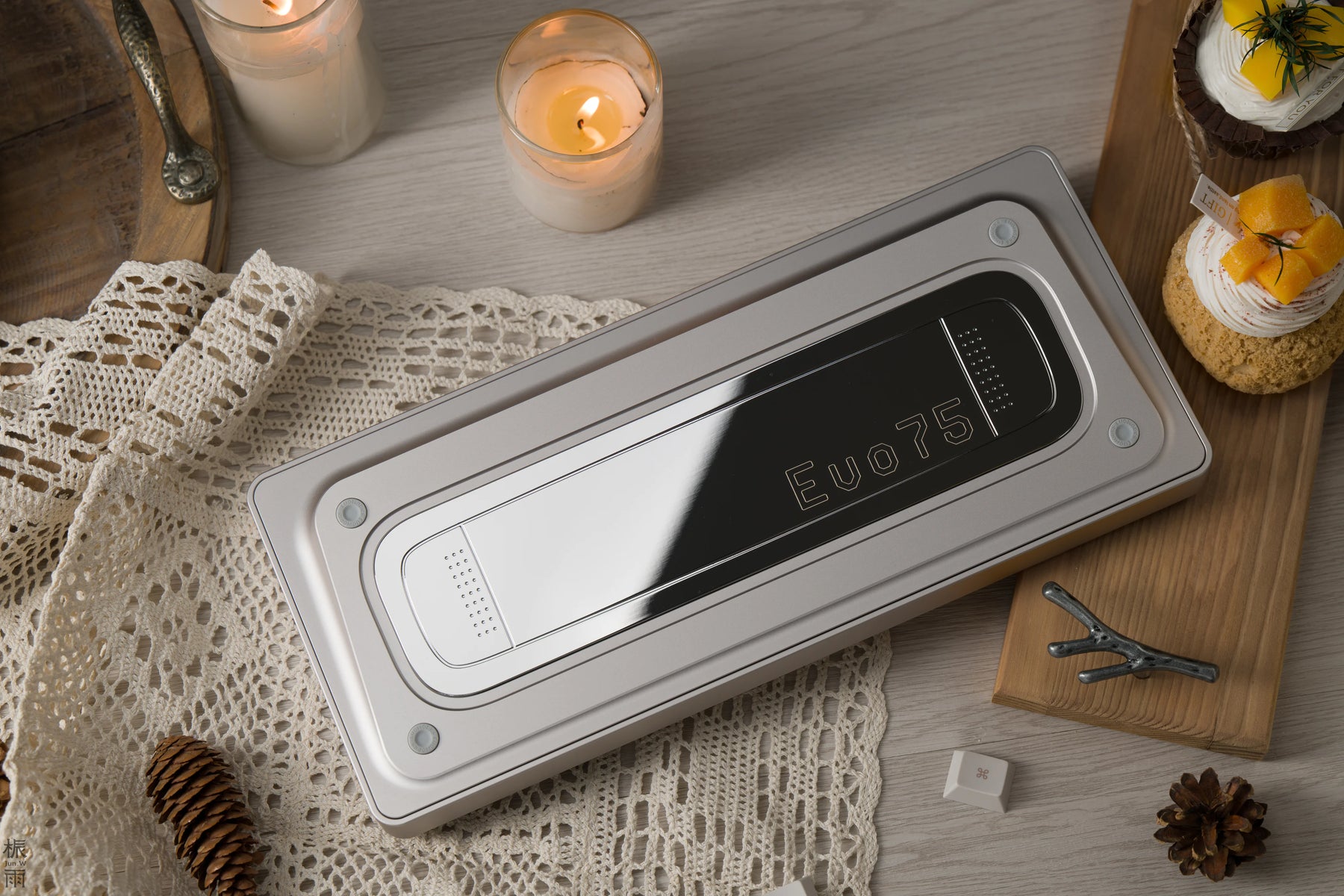

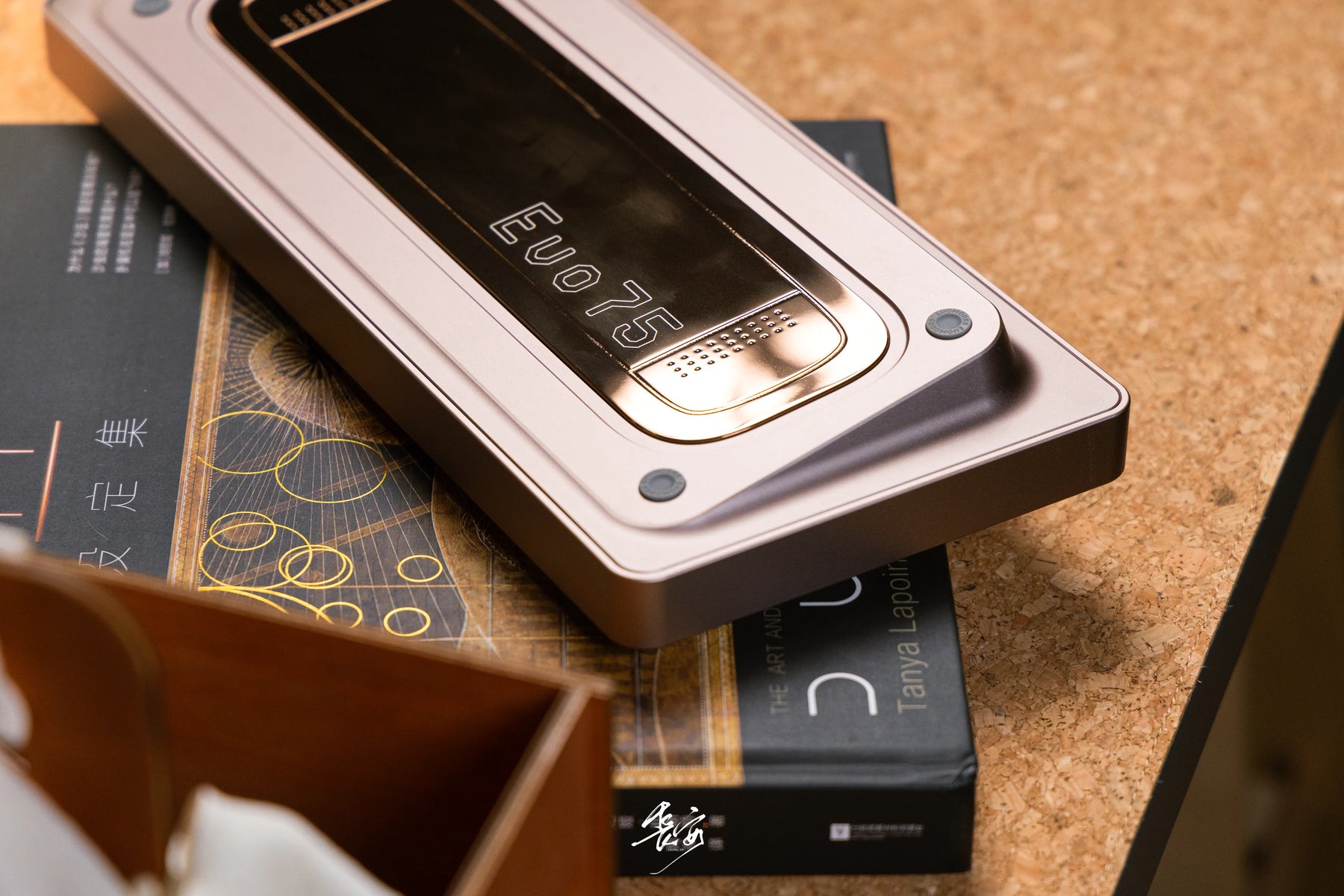

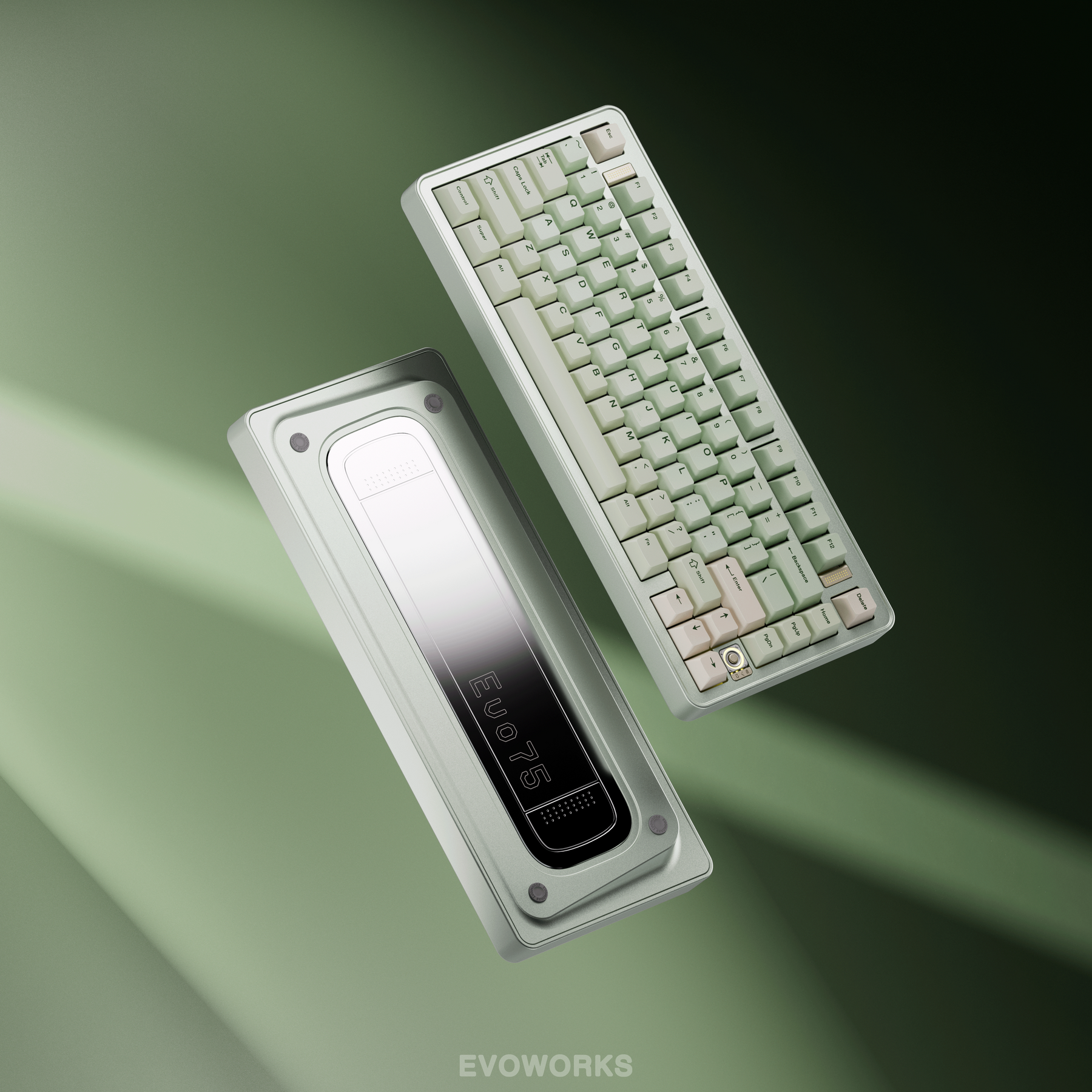

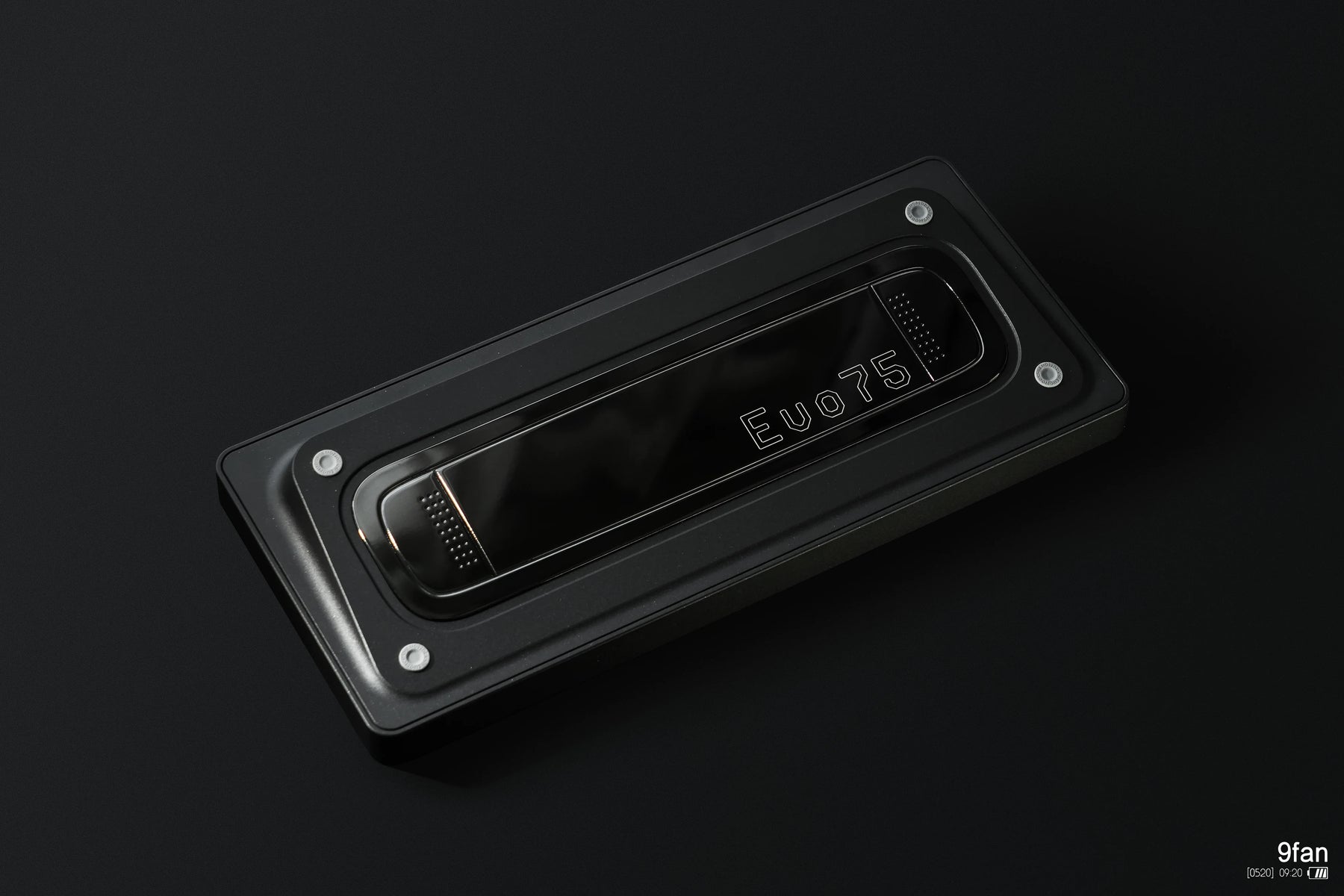

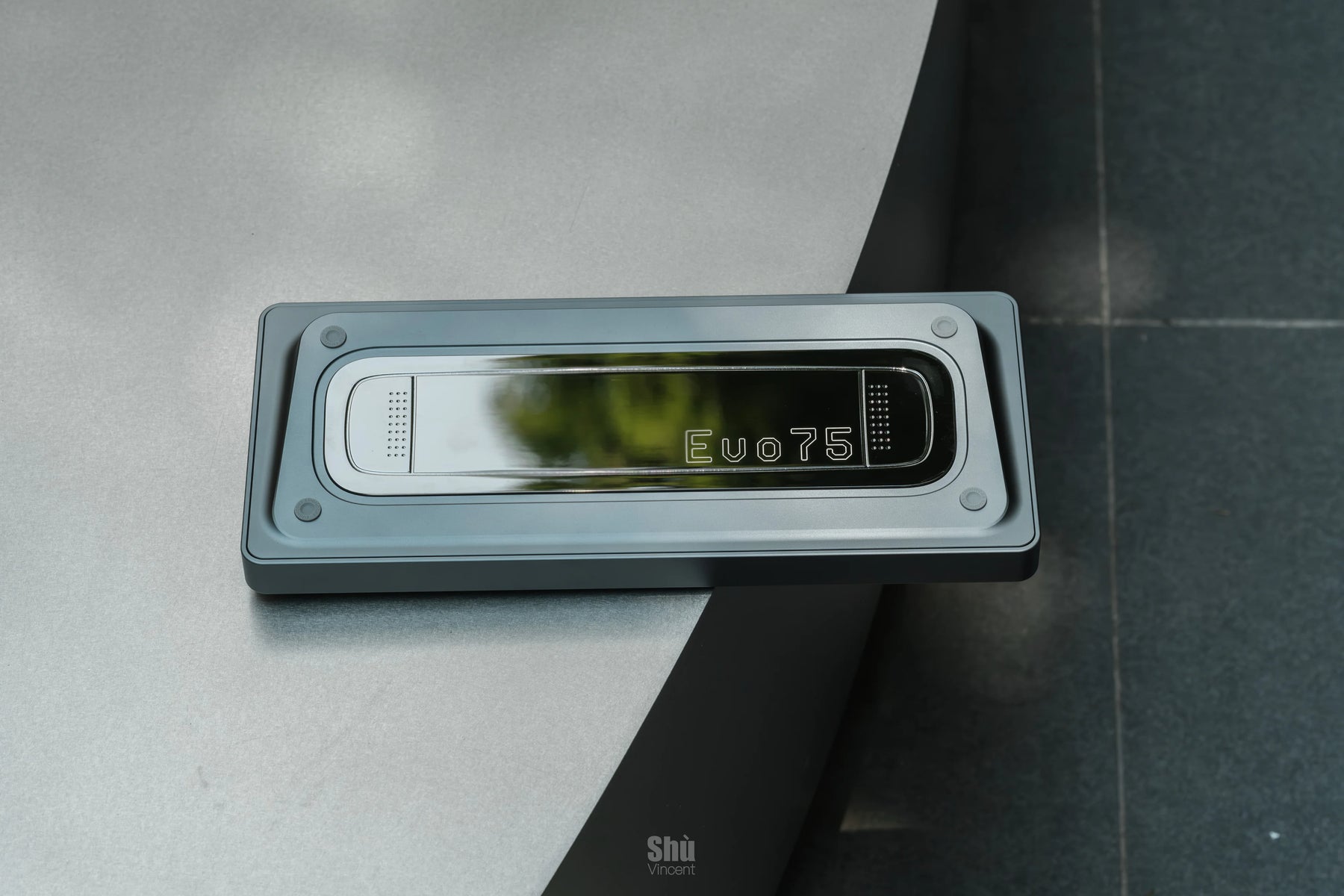

Underneath, a generous stainless steel weight provides both elegance and stability. It enhances acoustic resonance, creating a more focused typing experience while adding an undeniable premium touch.

Elegant soft-tapered contours flow smoothly from the sides to the bottom, creating a naturally balanced silhouette. The gently inward-curved edges on both sides provide effortless daily handling and enhanced portability.

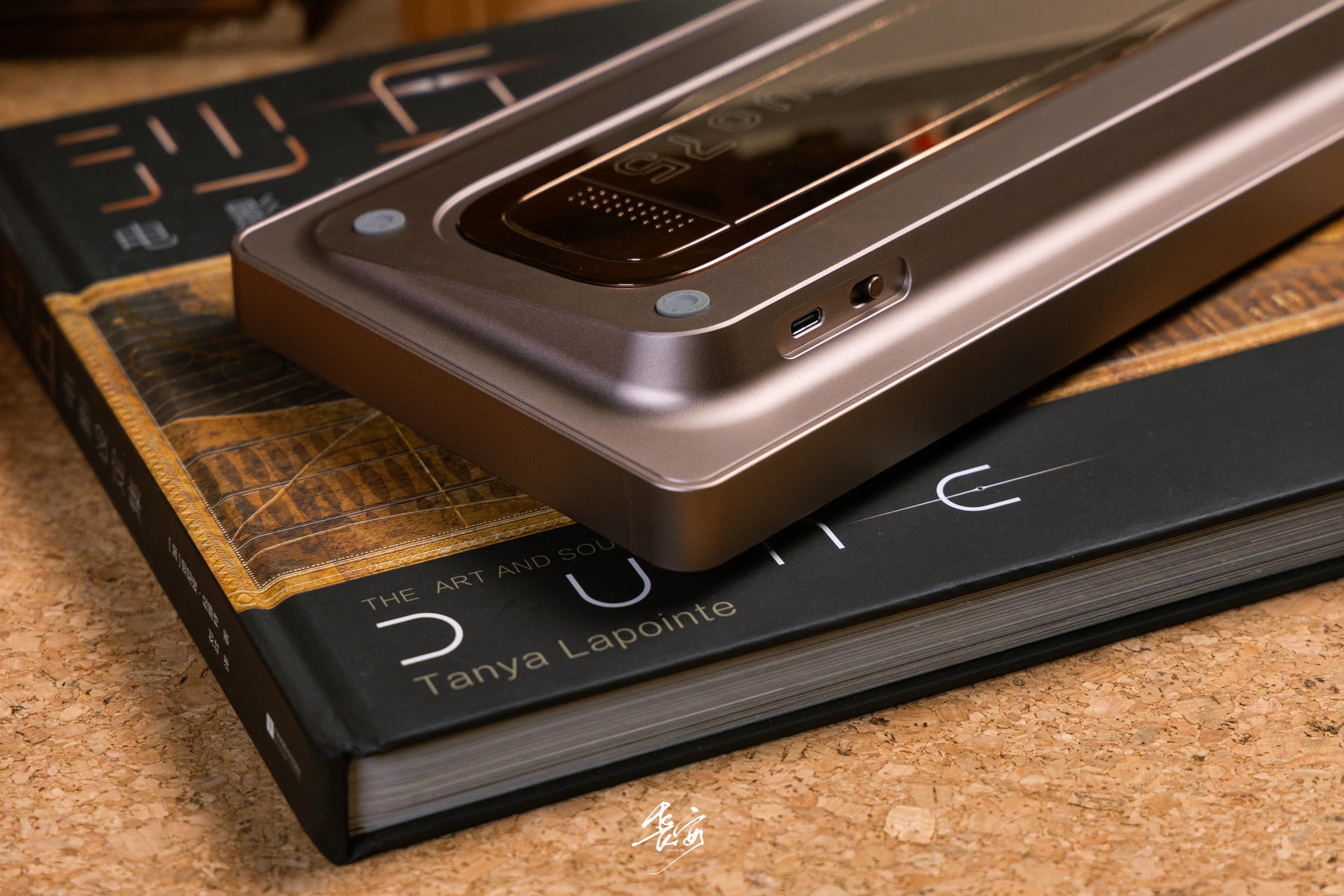

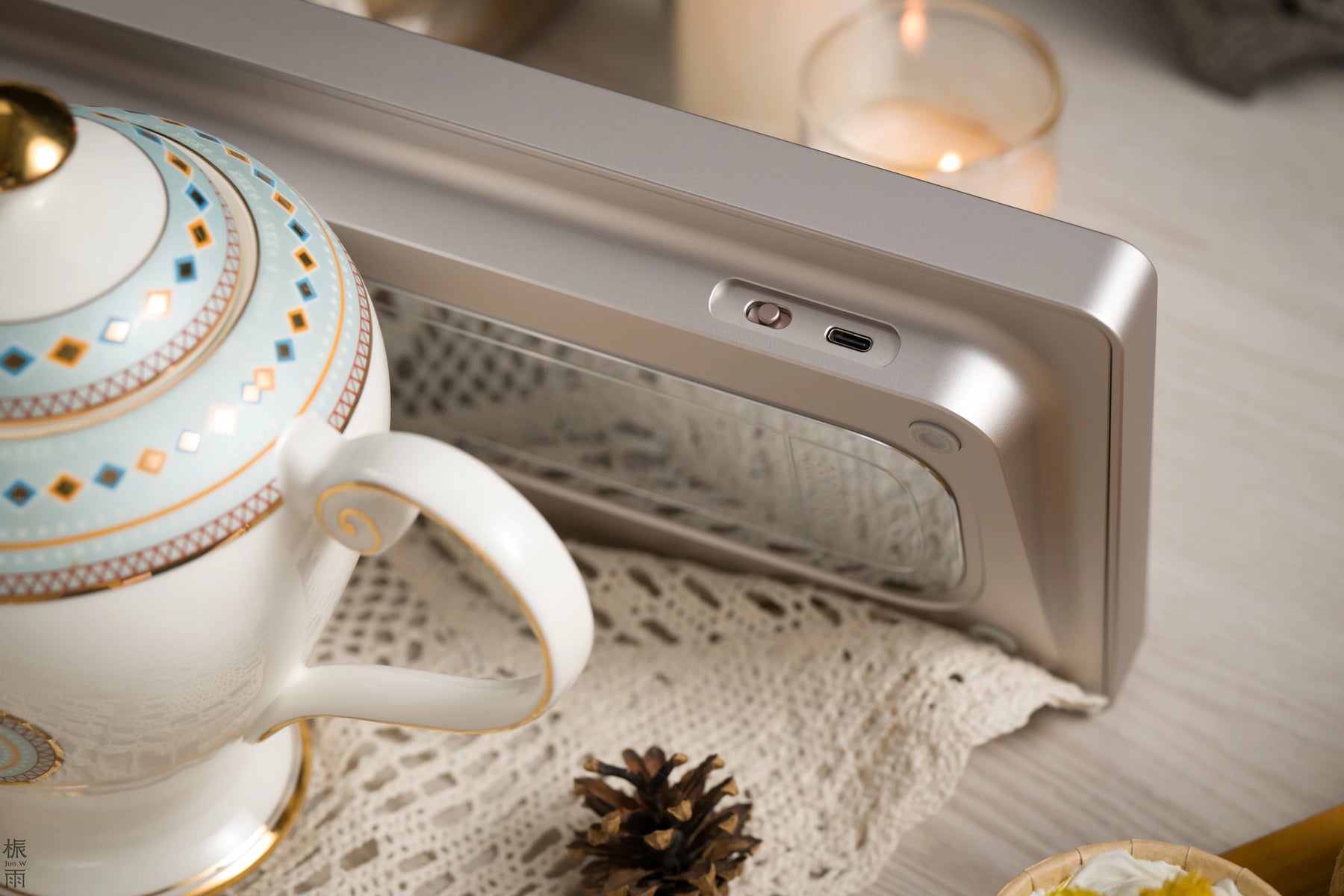

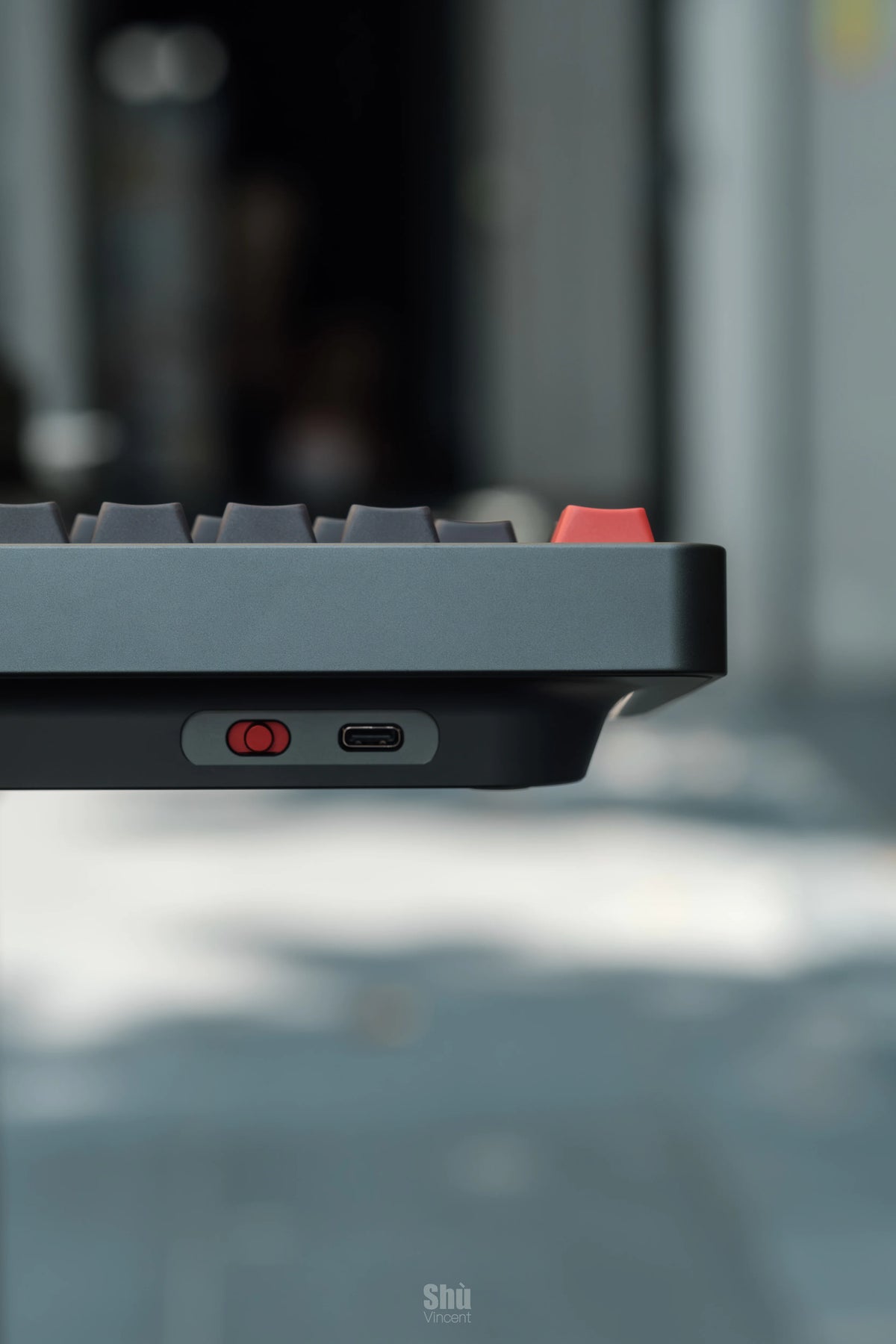

The physical toggle next to the USB port combines connectivity switching and battery control, letting you easily switch between 2.4G wireless, wired, and Bluetooth connections.

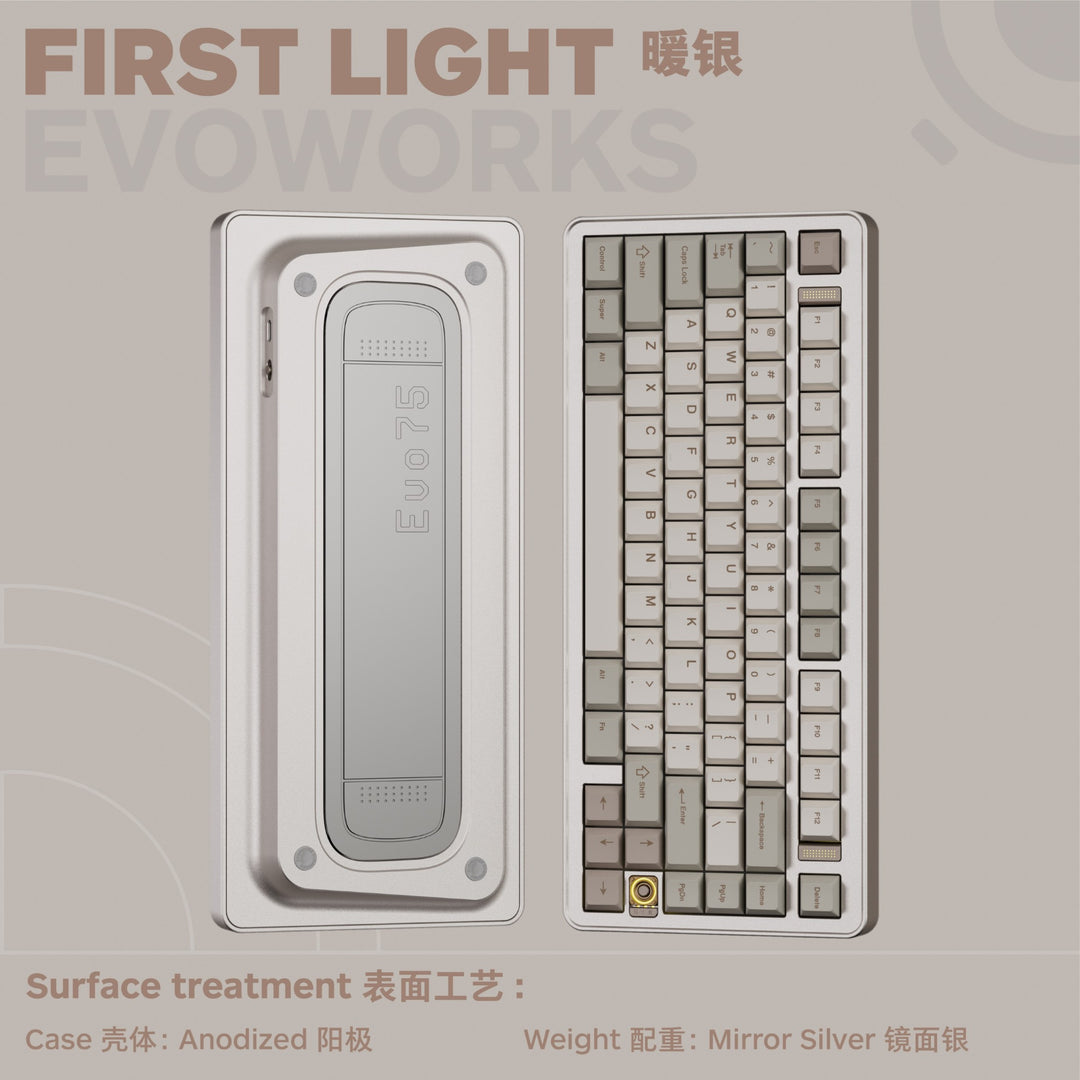

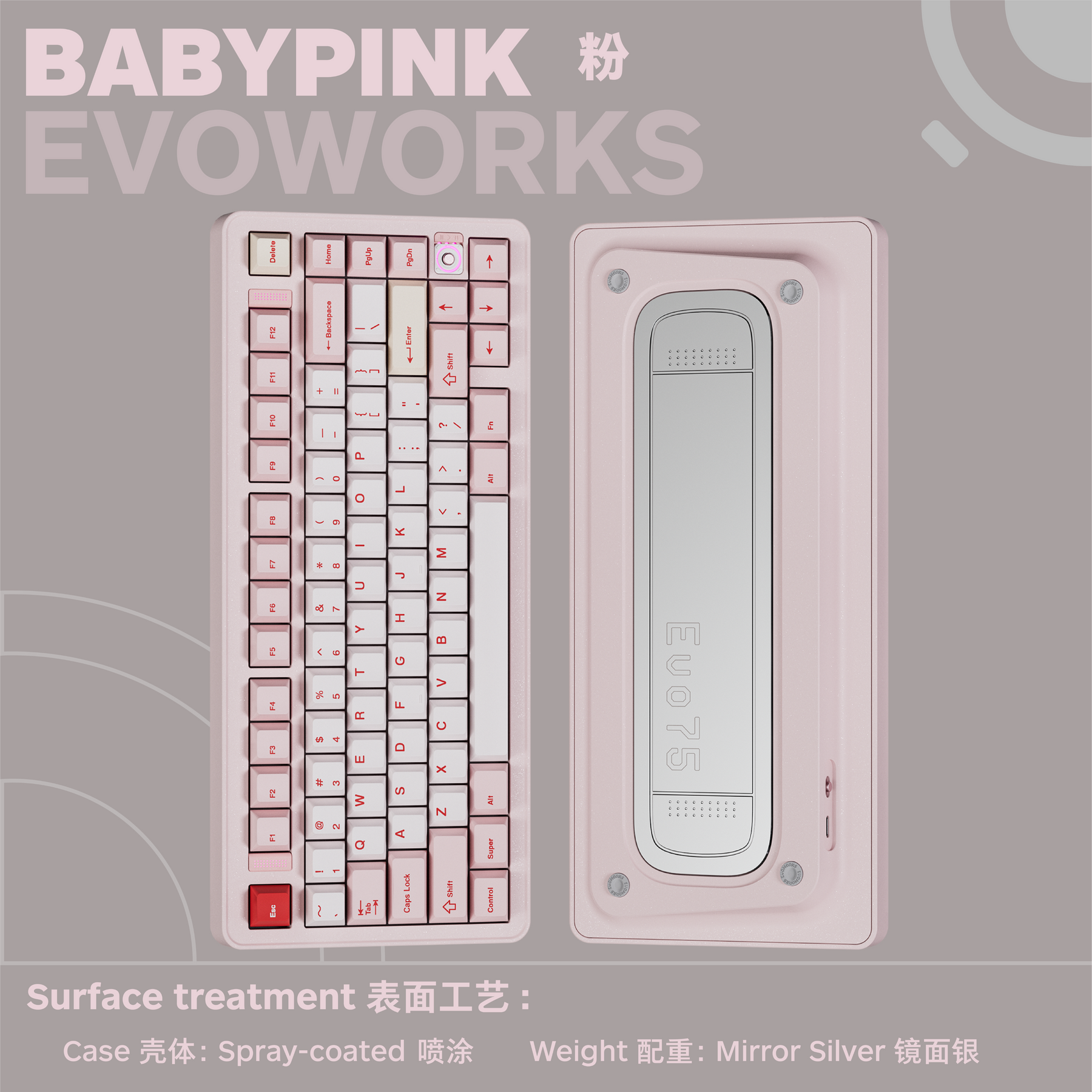

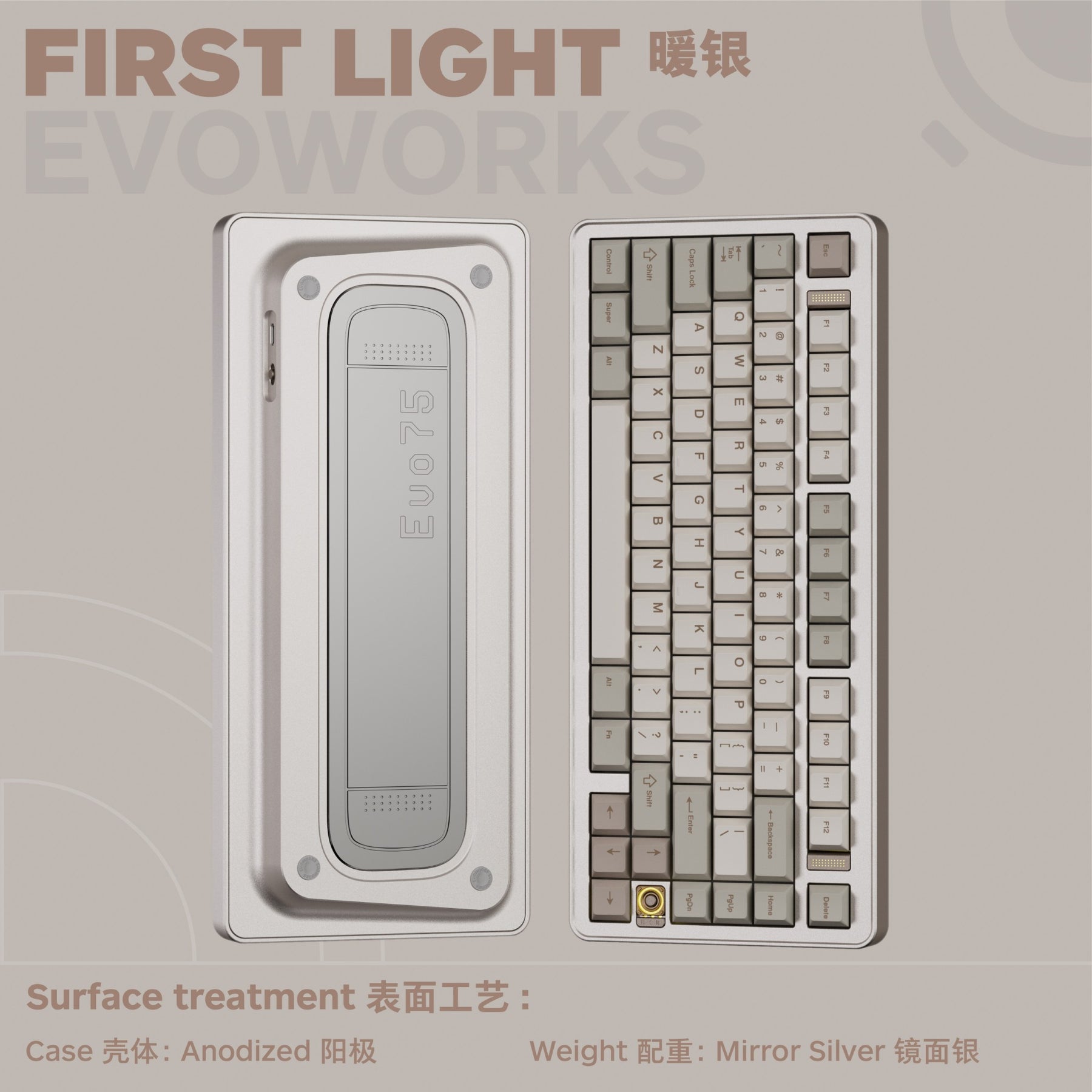

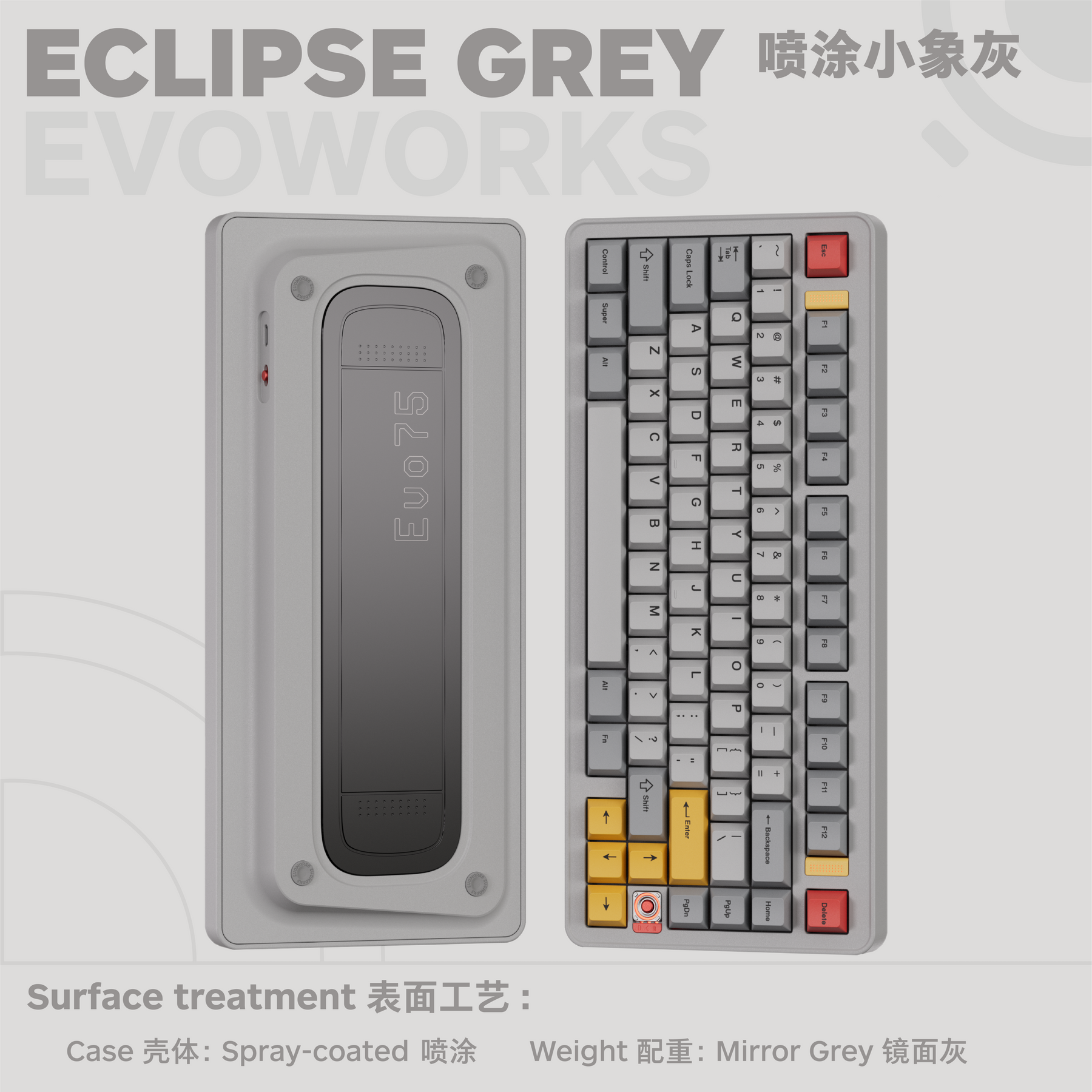

Crafted on our industry-leading production line, the Evo75 delivers unrivaled build quality in its class. Each anodized case undergoes 220-mesh sandblasting, creating a consistently smooth, luxurious texture across all units. Spray-coated variants feature ultra-fine powder coating that perfectly matches our original color designs while maintaining excellent tactile quality.

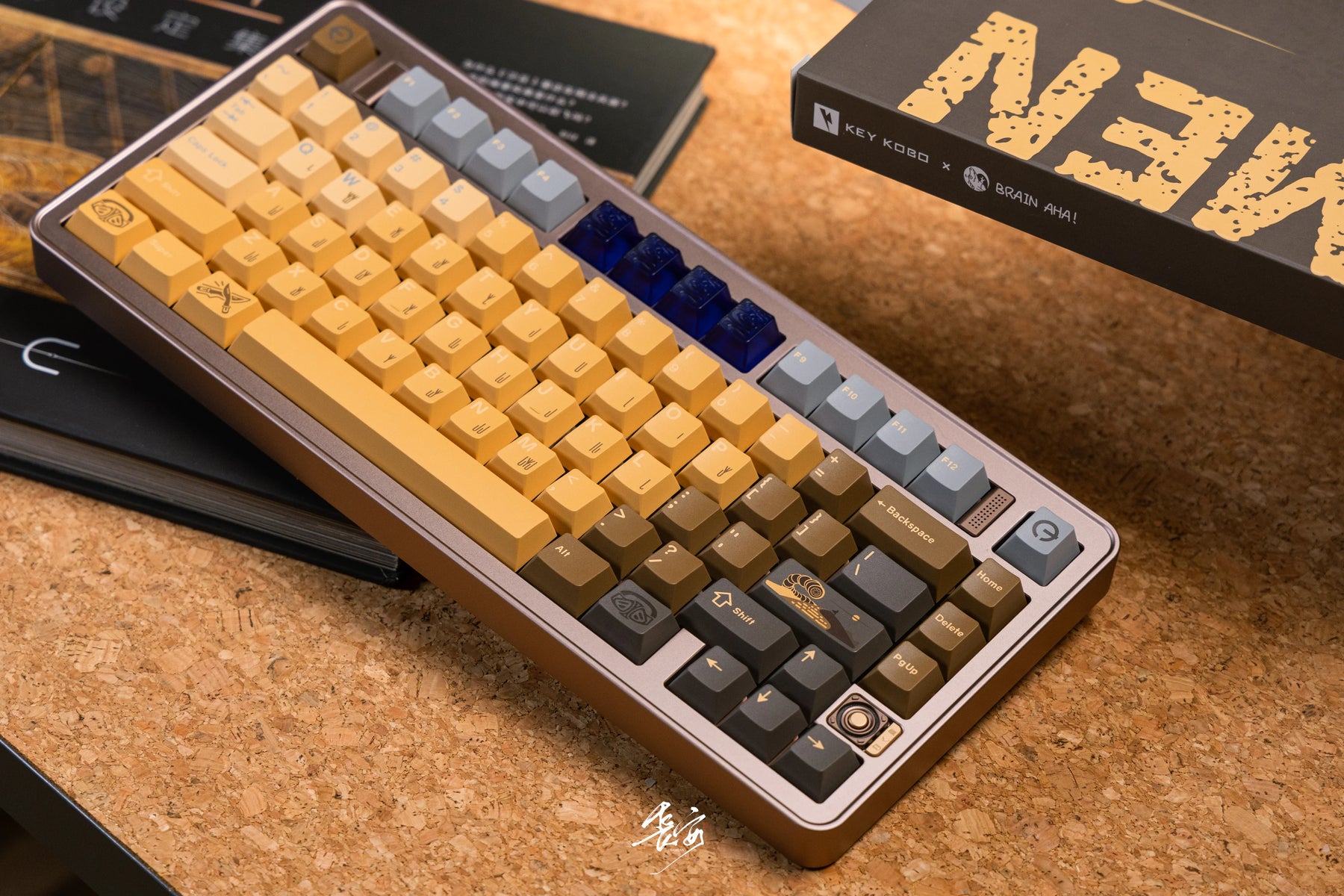

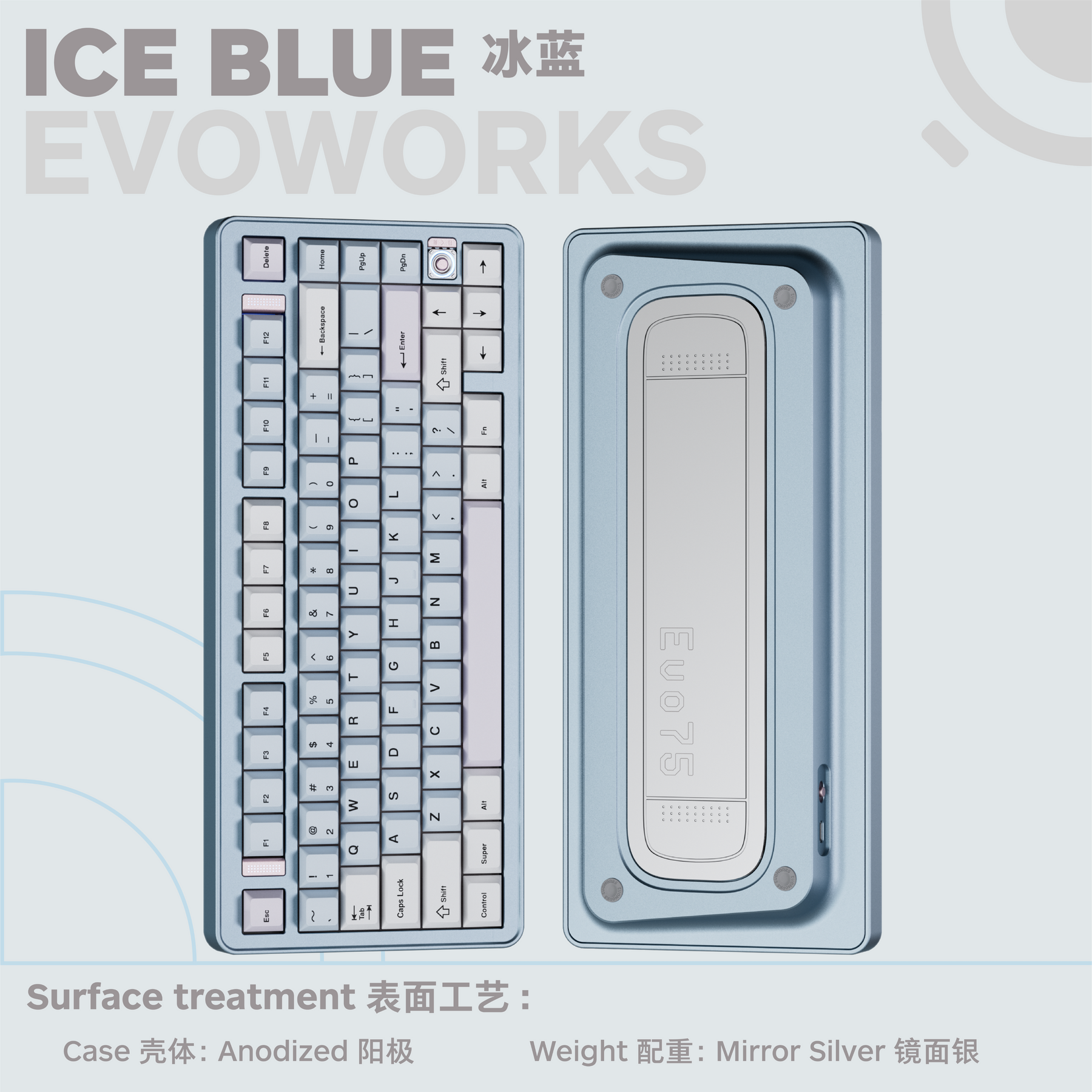

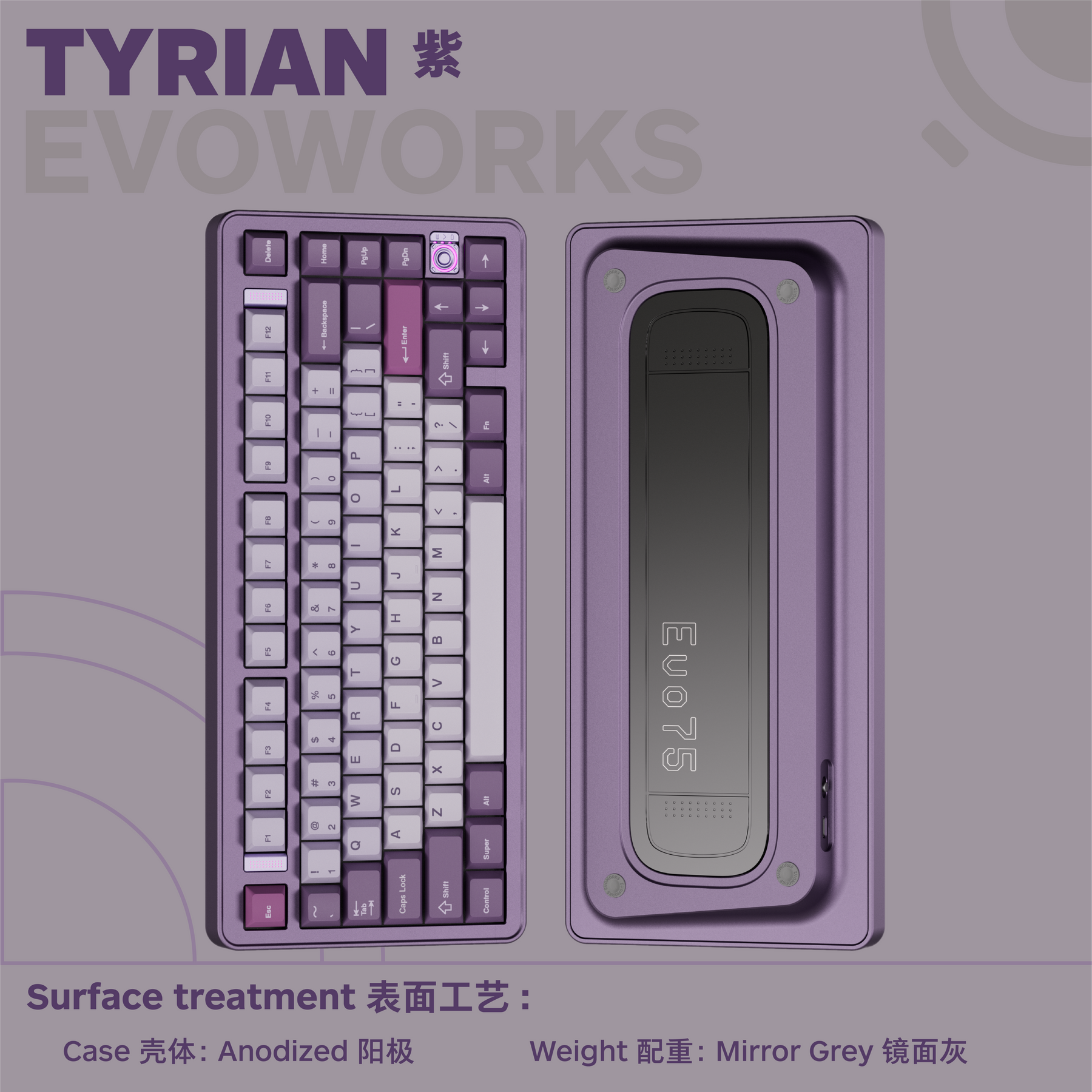

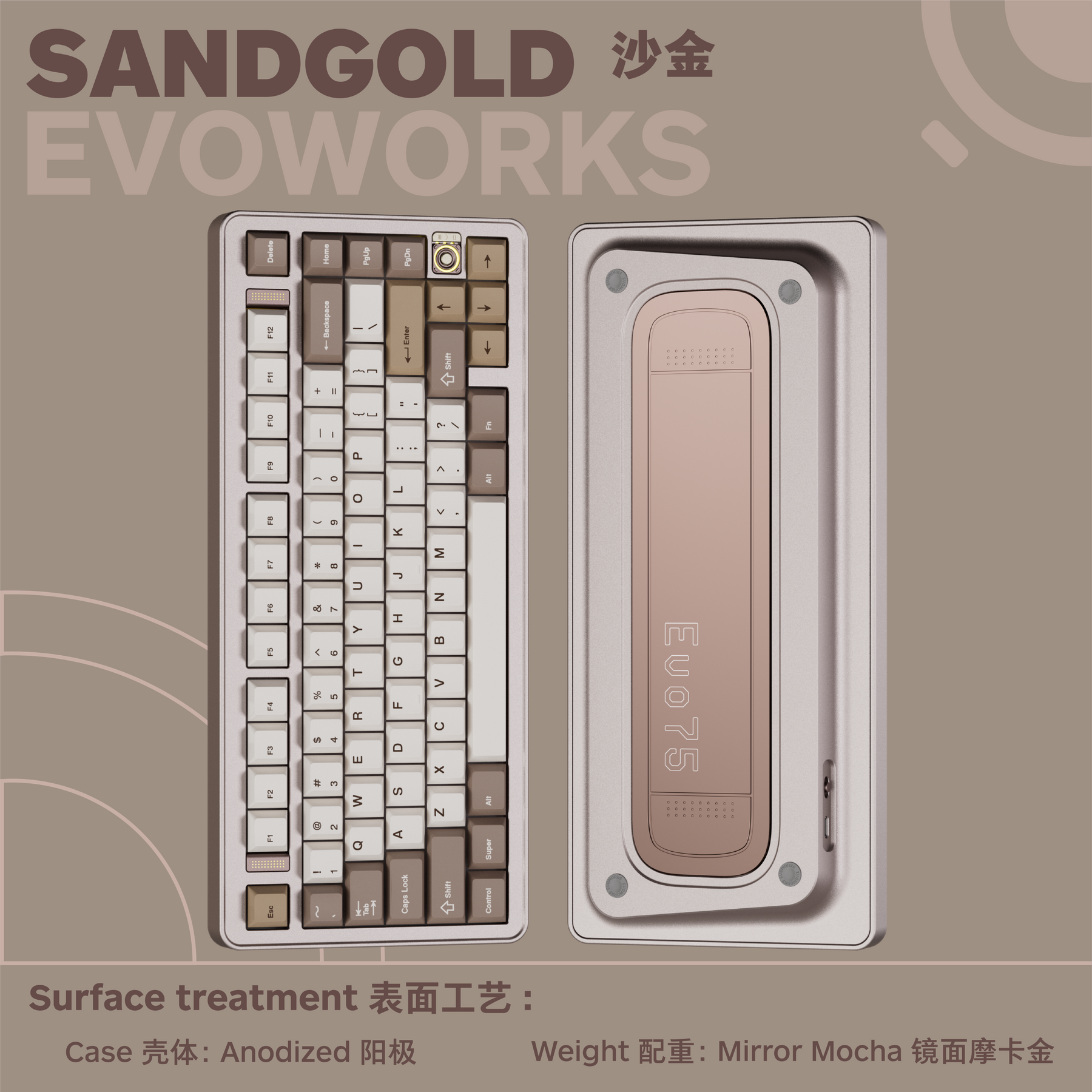

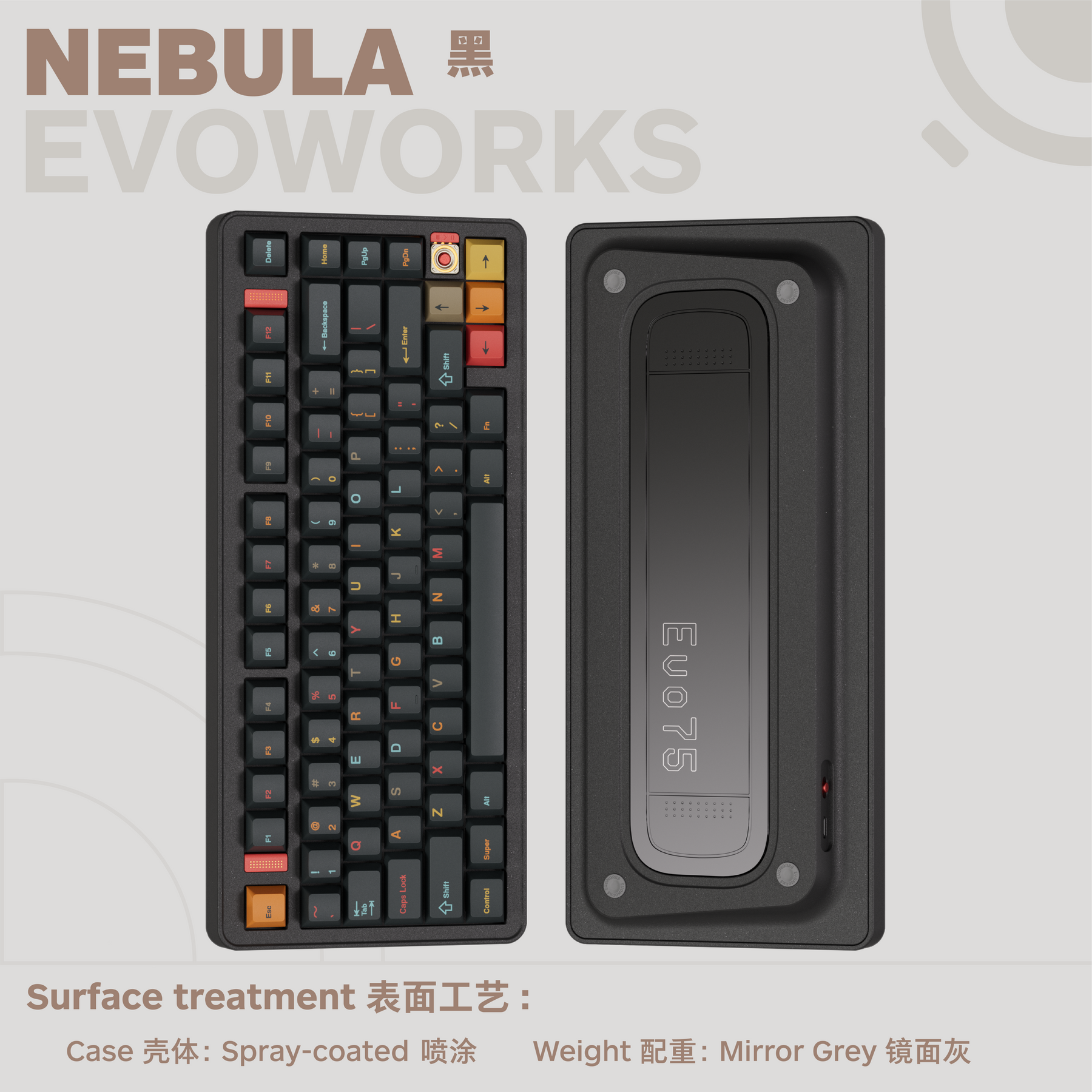

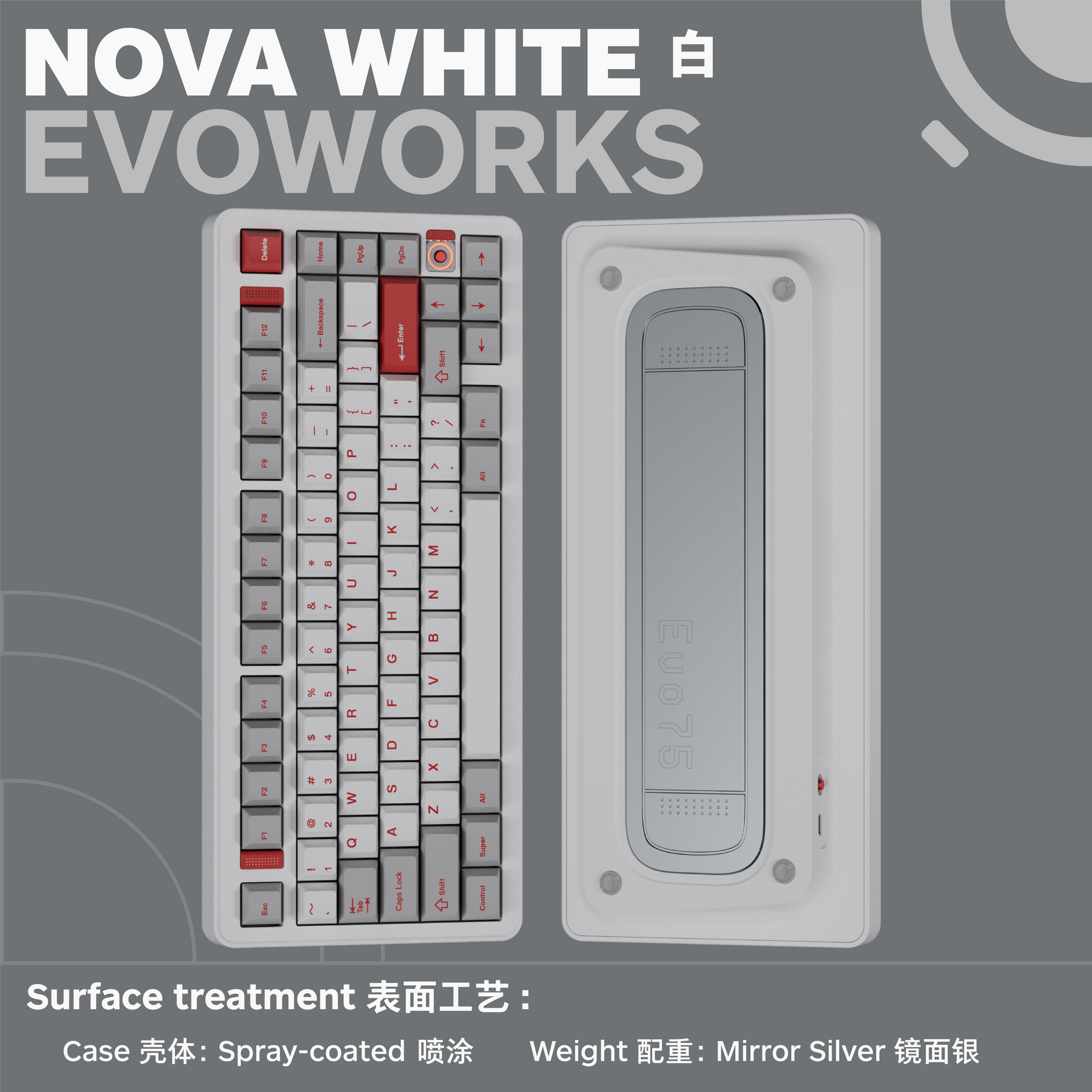

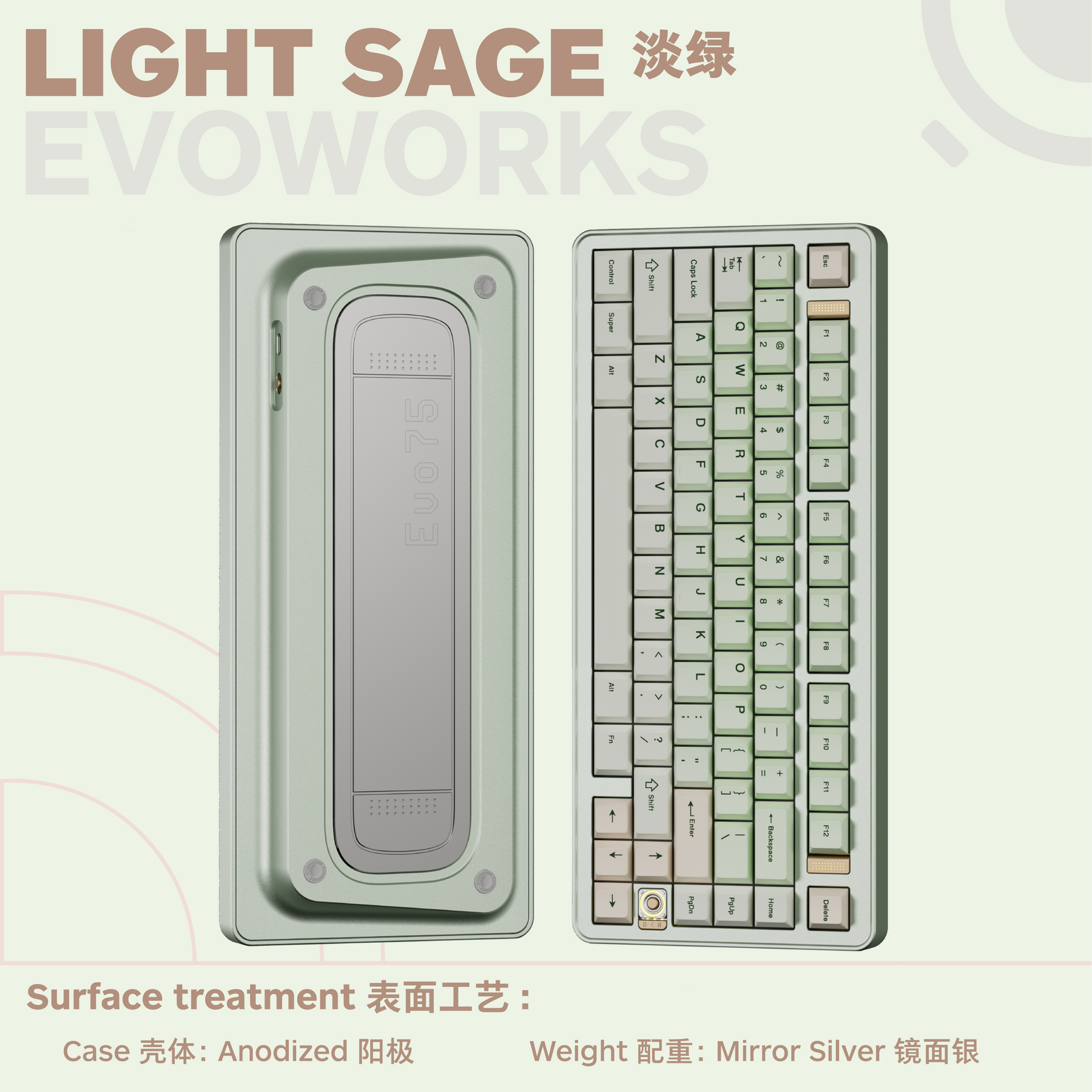

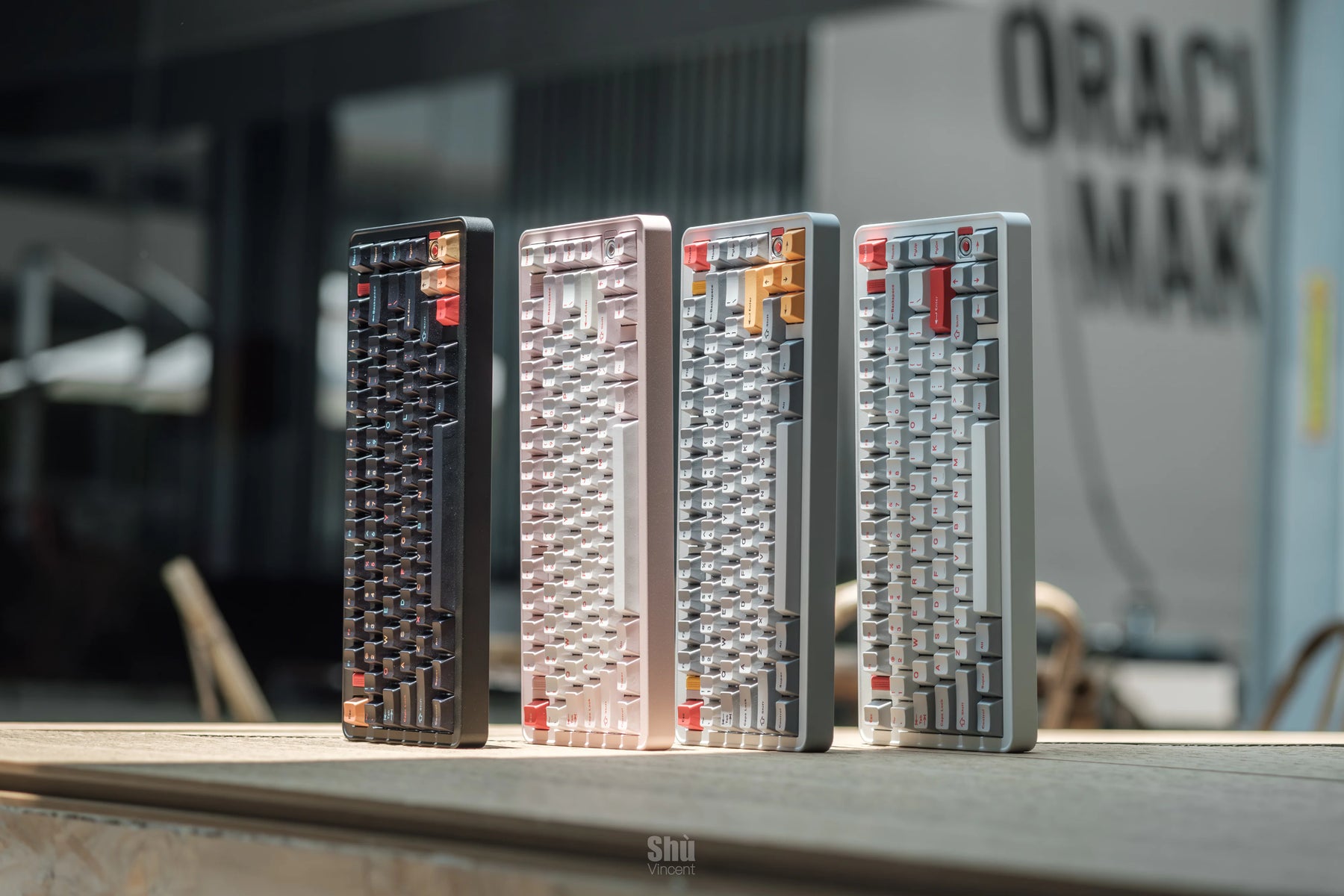

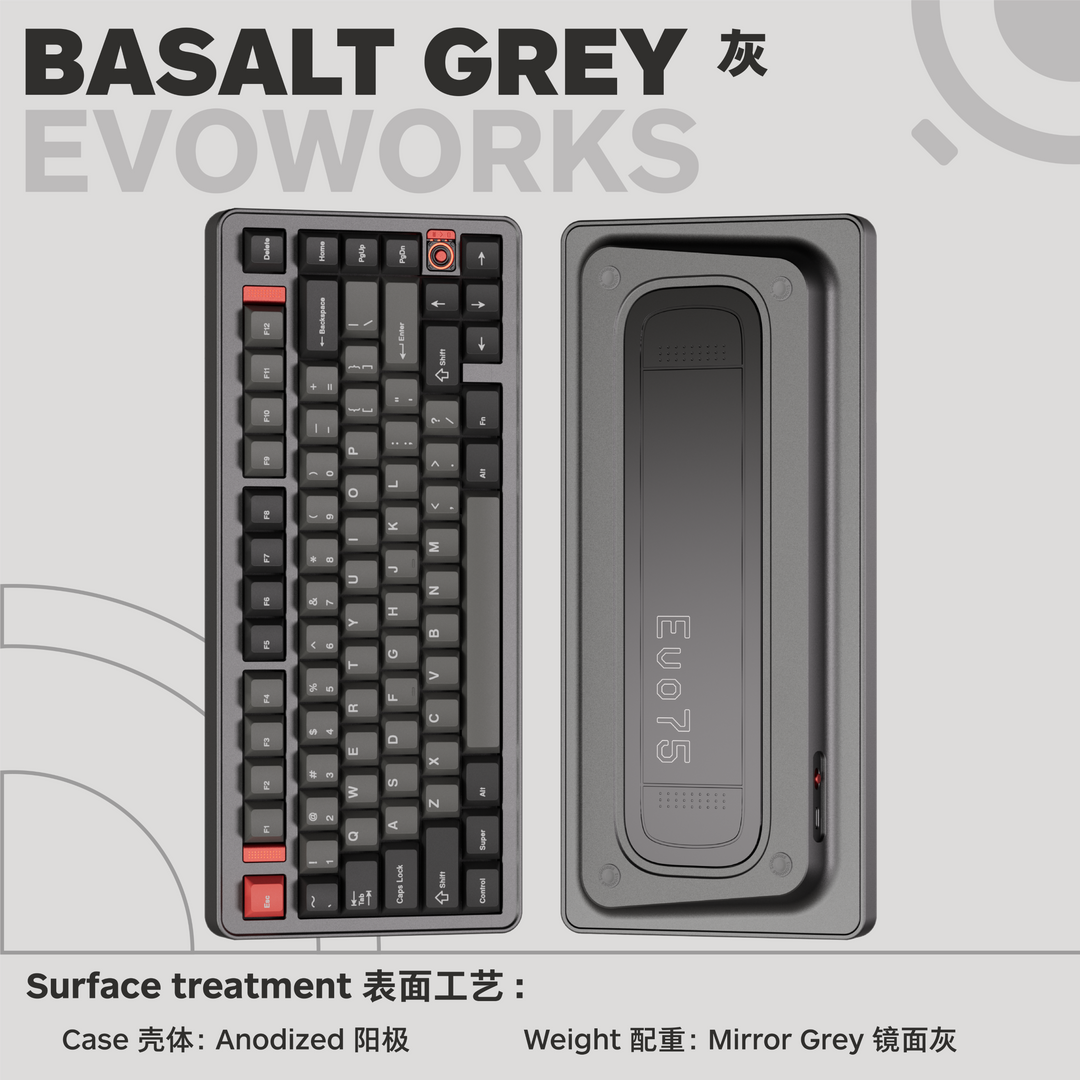

We proudly present several exclusive new colors, each thoughtfully paired with coordinated keycaps. More than just functional devices, each Evo75 colorway stands as a striking art piece for your workspace—where precision engineering meets curated elegance.

Butterfly Leaf Spring Structure

Evo75 features our butterfly leaf spring structure with a triple-layer shock absorption system. The butterfly leaf spring provides a typing experience that's bouncy yet stable. Long silicone gaskets on the plate minimize hollowness and noise from the leaf spring while ensuring consistent sound across all keys, including those near mounting points. A silicone cushion positioned beneath the leaf spring reduces vibration between springs and case, effectively eliminating case ping.

Effortless Disassembly + Magnetic Connectors

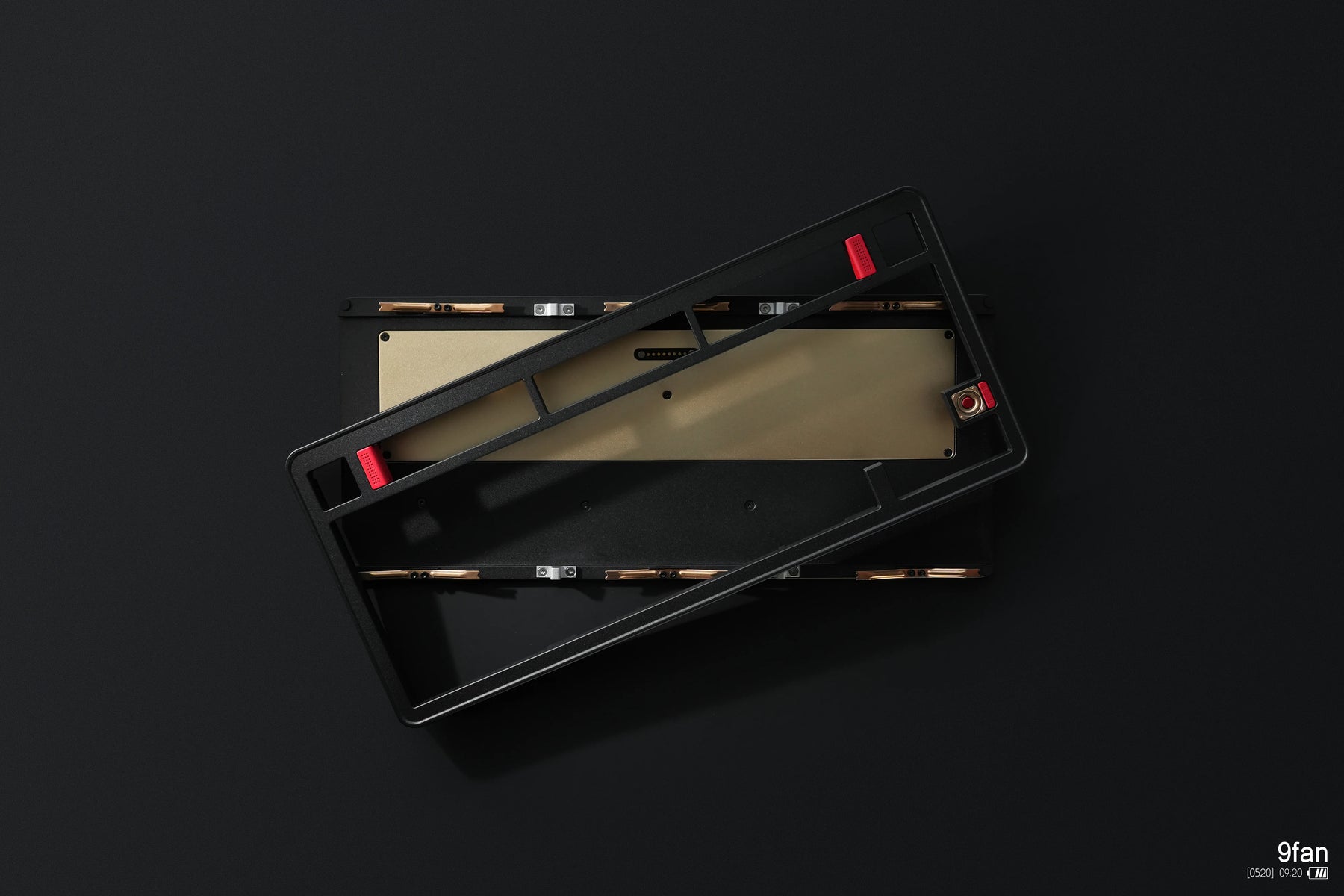

We've retained the highly praised ball-catch mechanism and magnetic connectors from the Evo80. You can easily open the case with a simple press and lift. While the Evo75 is ready to use right out of the box, this tool-free disassembly makes further customization effortless.

We've chosen a single-layout ANSI PCB for the Evo75, eliminating the acoustic inconsistencies caused by spare switch holes and extra plate foam cutouts. This design choice ensures superior and more uniform sound performance across the entire keyboard.

The Evo75 is powered by dual 4000mAh ternary lithium batteries and supports up to 10W fast-charging, providing a reliable foundation for extended use.

PCB Layout

• Tri-mode ANSI Hotswap PCB
  • 1.2mm thickness with flex-cuts
  • South-facing Per-key RGB
  • NKRO
  • Polling rate: Wired & 2.4g 1000Hz, Bluetooth 125Hz
  • VIA compatible
  • Support USB-C, Bluetooth, and 2.4GHz connection

Plate + Switch

Based on feedback from our previous Azure and Oat switches, we've spent the past 10 months perfecting our switch performance. The new members of our switch family—Amber Switch and Rye Switch—now provide more distinctive sound profiles while maintaining the smooth typing experience you expect.

Option 1: Amber Switches + FR4 Plate

• Improved bottom housing and stem material
• Enhanced internal structure for a crisper typing sound
• Refined lubrication formula

Option 2: Rye Switches + PP Plate

• New stem mold for a deeper, more focused low-pitch typing sound
• Refined lubrication formula

Keycaps

We've upgraded the keycaps to 1.7mm five-sided Dye-sub PBT for the Evo75 to achieve better color rendition and enable more diverse, bold color combinations. Paired with our new Amber and Rye switches, these keycaps elevate the daily typing experience on the Evo75 to the next level.
